UV Curing Lamp - HAPA 231 Part # HA4015 UV Curing Lamp Bulb
UV Curing Lamp - HAPA 231 Part # HA4015 UV Curing Lamp Bulb UV Curing Lamp - HAPA 231 Part # HA4015 UV Curing Lamp Bulb

HAPA 231 Part # HA4015 UV Curing Lamp Bulb
Free Gift


UV Bulb Price Match Guarantee

Guaranteed 100% Compatible Replacement Ultraviolet (UV) Lamp - 12 Inch Arc Length

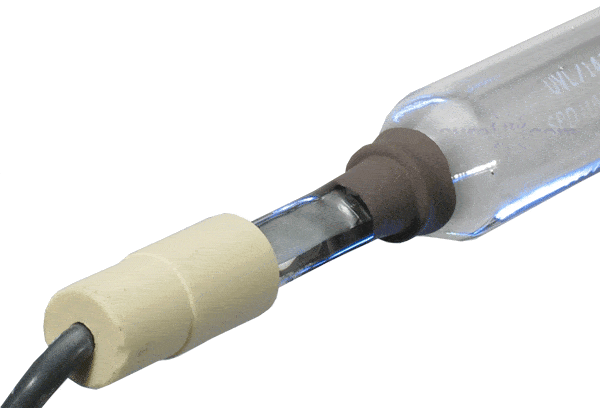

The Hapa 231 Part # HA4015 UV Curing Lamp Bulb is a 100% guaranteed replacement lamp bulb that has an arc length of 12 inches and a total length of 17.44 inches. With a diameter of 28mm, the UV curing lamp bulb exceeds OEM standards of UV curing bulb performance. The lamp bulb is compatible to the following part numbers:

  • 1991002015
  • H688004
  • HA4015

The UV lamps in printers are connected to the photo initiators and the ink raw materials. A strong UV light is a must for printing as weak UV light fails to cure properly and the ink feels sticky. The 5" UV replacement lamp exceeds OEM standards and is subjected to strict quality control measures and gives you a printing experience you desire. There are studies which show that as the bulb hour increases the lamp produces lesser UV light and more heat. Excess heat causes the print media to bulge and it can also damage the shutters and the reflectors in the lamp housing, leading to enormous repairing costs. Therefore, we suggest that you use a good quality UV lamp like the one from CureUV.

Technical Specifications:

  • Fill: Mercury
  • Quartz: Standard
  • Arc Length: 12 inches
  • Watts Per Inch: 300 WPI

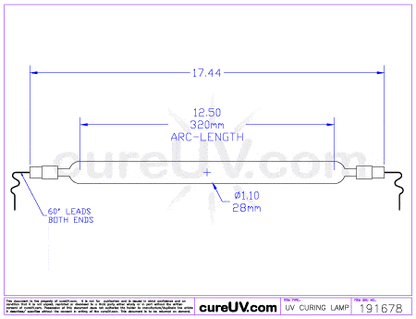

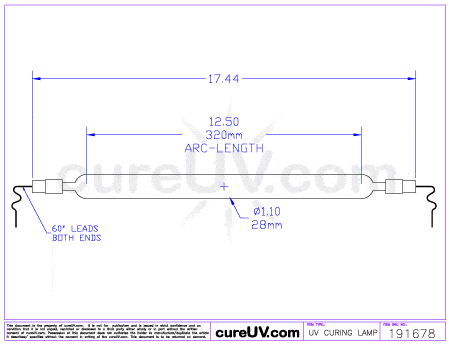

HAPA Printer UV Lamp - OEM Part Number HA4015 drawing

HAPA 12 inch UV lamp - Printer Model 231, OEM part number HA 4015 - Drawing (PDF)

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.

Customer Reviews

Be the first to write a review


Ask a Question
  • this uv lamp work with gottscho go-flex printer model 3031

    No, the HAPA HA7585 UV lamp is the correct replacement bulb for this printer model. It is the same style as this lamp but has a different total length (18.5") and arc length (14.5"-15").
