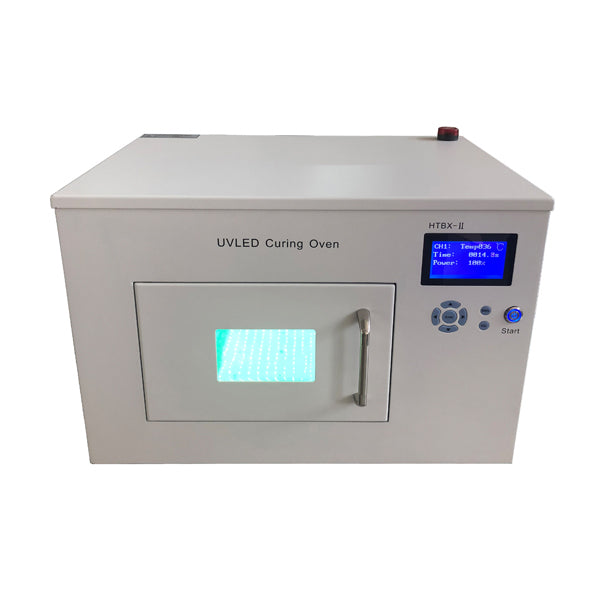

Mid-Powered LED UV Curing Chamber (330mm L x 240mm W x 160mm H) with Viewing Window
Mid-Powered LED UV Curing Chamber (330mm L x 240mm W x 160mm H) with Viewing Window Mid-Powered LED UV Curing Chamber (330mm L x 240mm W x 160mm H) with Viewing Window Mid-Powered LED UV Curing Chamber (330mm L x 240mm W x 160mm H) with Viewing Window Mid-Powered LED UV Curing Chamber (330mm L x 240mm W x 160mm H) with Viewing Window

Mid-Powered LED UV Curing Chamber (330mm L x 240mm W x 160mm H) with Viewing Window
Free Gift

SKU:

UV Bulb Price Match Guarantee
$6,999.00

The 200x200mm LED UV Curing Chamber Oven is a UV LED Curing Oven with Luminescence mode and a curing area of 200x200mm. Wavelength available in 365nm, 385nm, 395nm and 405nm to rapidly and effectively cure most materials, that might vary between UV glues, UV inks, UV varnishes, UV paints, and others. This curing system requires no warm-up time and remains cool, protecting heat-sensitive materials and saving you time and money.

Features:

  • Available in 365/385/395/405nm wavelength are suitable for curing most UV glues, adapting to the job at hand
  • Cold light source makes it suitable for any heat-sensitive material
  • Ready for immediate use, maximum light intensity can be reached in an instant
  • Easy to control and power saving
  • Forced air cooling ensures the system correctly works for prolonged periods
  • Mercury-free and ozone-free

Specifications:

365nm

  • Wavelength: 365nm*
  • Electric Power: 588W
  • Curing Area: 200x200mm
  • Optic Power: 800mW/cm²
  • Curing cavity size: 330x240x160mm
  • Cooling Method: Fan cooling
  • Input voltage:  120VAC 60Hz

385nm

  • Wavelength: 395nm*
  • Electric Power: 588W
  • Curing Area: 200x200mm
  • Optic Power: 900mW/cm²
  • Curing cavity size: 330x240x160mm
  • Cooling Method: Fan cooling
  • Input voltage:  120VAC 60Hz

* Current available specifications apply only to the 365/395nm option

Technical Data Sheet:

User manual:

Product Video:

If you have questions about this or any of our UV Chambers & Ovens, please feel free to call us at 1(800) 977-7292 or email us at sales@cureuv.com. We would love to help you find the ideal UV solution for your application.
