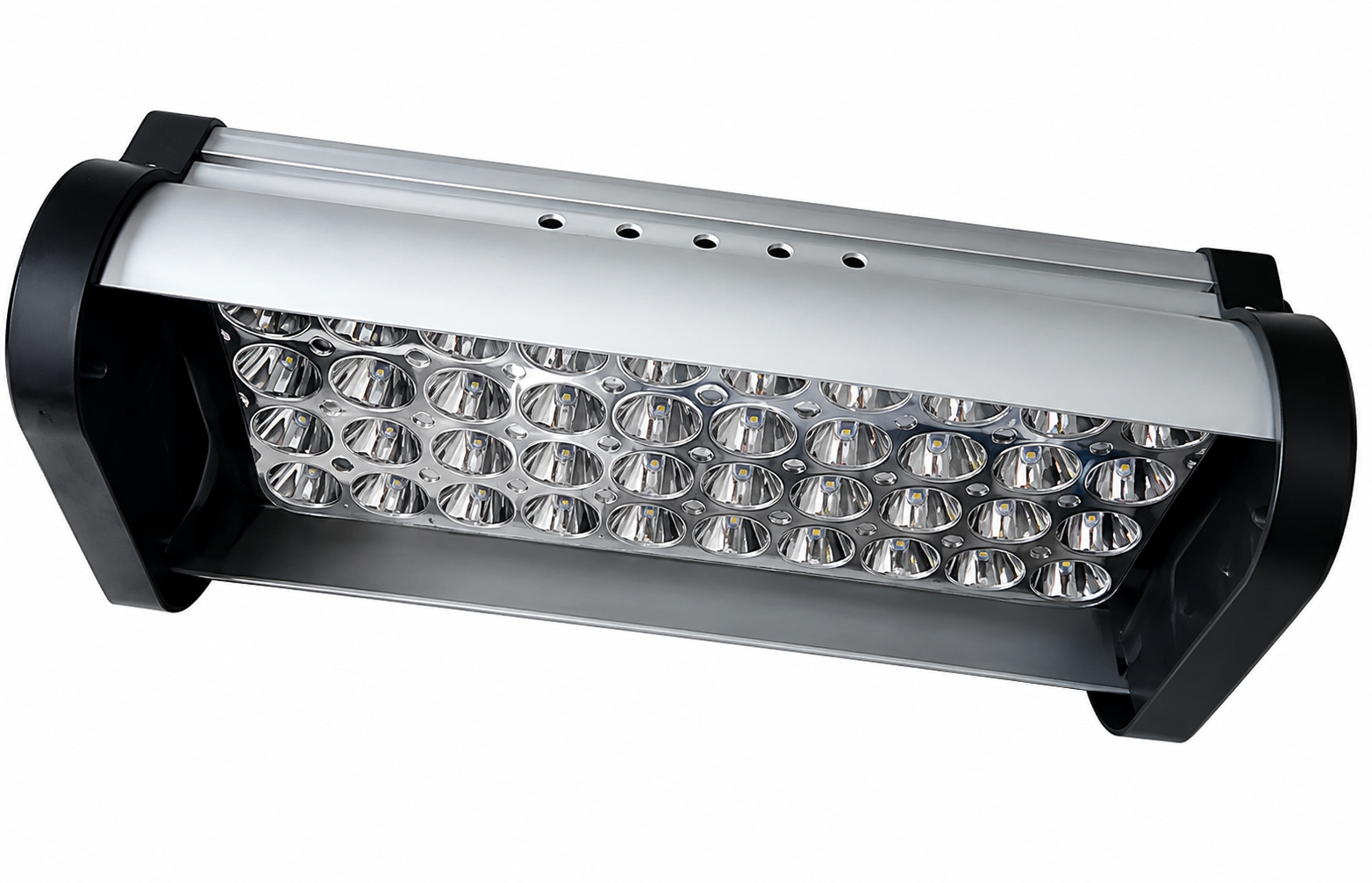

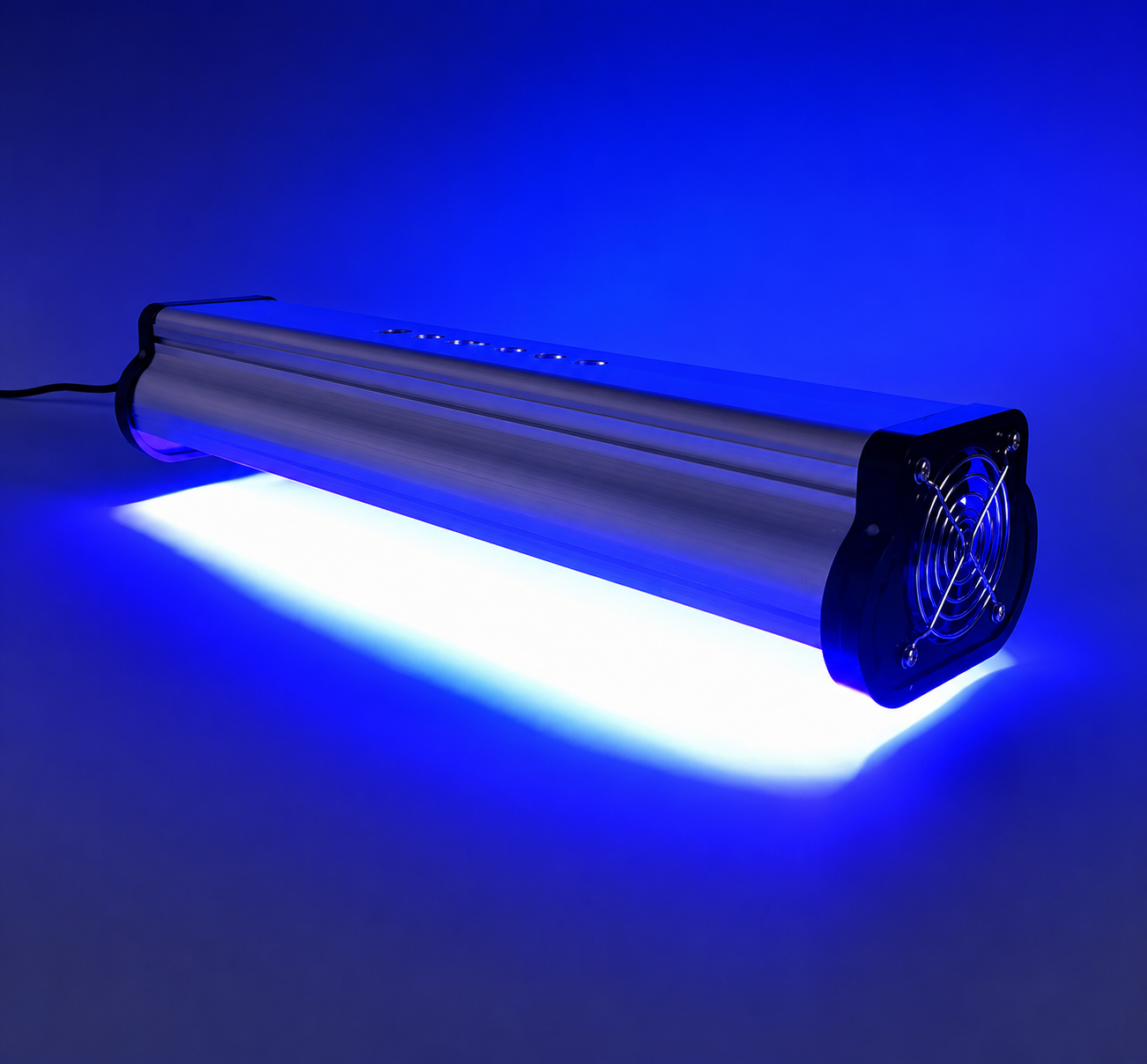

500W High-Power UV LED Curing Lamp
500W High-Power UV LED Curing Lamp
SKU:512402
No se pudo cargar la disponibilidad de retiro
The CureUV 500W UV LED Curing Lamp is engineered for high-intensity UV curing applications requiring fast, reliable, and energy-efficient performance. Utilizing imported UV LED chips, this unit delivers consistent UV output for curing UV adhesives, coatings, inks, resins, and fluorescent materials.
Available in 365 nm, 395 nm, and 405 nm wavelengths, this LED curing system is suitable for a wide range of industrial, laboratory, manufacturing, and repair applications while offering the advantages of LED technology over conventional mercury lamps.
Key Features
- High-power 500W UV LED output
- Available wavelengths: 365 nm, 395 nm, or 405 nm
- Instant 100% UV output with no warm-up time
- Cold light technology with minimal heat generation
- Uniform light distribution for consistent curing
- Low power consumption compared to mercury lamps
- Mercury-free and ozone-free operation
- Virtually maintenance-free design
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | High-Power UV LED Curing Lamp |
| Power Rating | 500 W |
| Light Source | Imported UV LED Chips |
| Available Wavelengths | 365 nm, 395 nm, 405 nm |
| Input Voltage | 85–265 VAC |
| Frequency | 50/60 Hz |
| Operating Distance | 1.2–4 in (3–10 cm) |
| Mercury Content | None |
| Ozone Production | None |
Performance Benefits
Fast UV Curing
Designed for rapid curing of UV-sensitive materials including:
- UV adhesives
- UV resins
- UV coatings
- UV inks
- Optical bonding adhesives
- Fluorescent oils and compounds
UV LED curing systems are ideal for a wide variety of industrial and commercial applications, including UV adhesive curing, electronic assembly, PCB manufacturing, LCD and display production, resin 3D printing post-curing, optical lens bonding, medical device manufacturing, automotive repair, industrial inspection, fluorescent leak detection, security marking verification, and laboratory research. For optimal curing performance, position the lamp between 1.2–4 inches (3–10 cm) from the target surface. Keeping the lamp closer to the workpiece increases UV intensity and reduces curing time, while ensuring the entire surface receives uniform UV exposure for consistent, reliable results.
Safety Information
- UV radiation can be harmful to eyes and skin.
- Always wear appropriate UV-blocking eye and skin protection during operation.
- Do not look directly into the UV LEDs while the unit is operating.
- Use the lamp in accordance with all applicable workplace safety procedures.
