Sistema de curado LED UV portátil
Sistema de curado LED UV portátil
SKU:511124-365
No se pudo cargar la disponibilidad de retiro

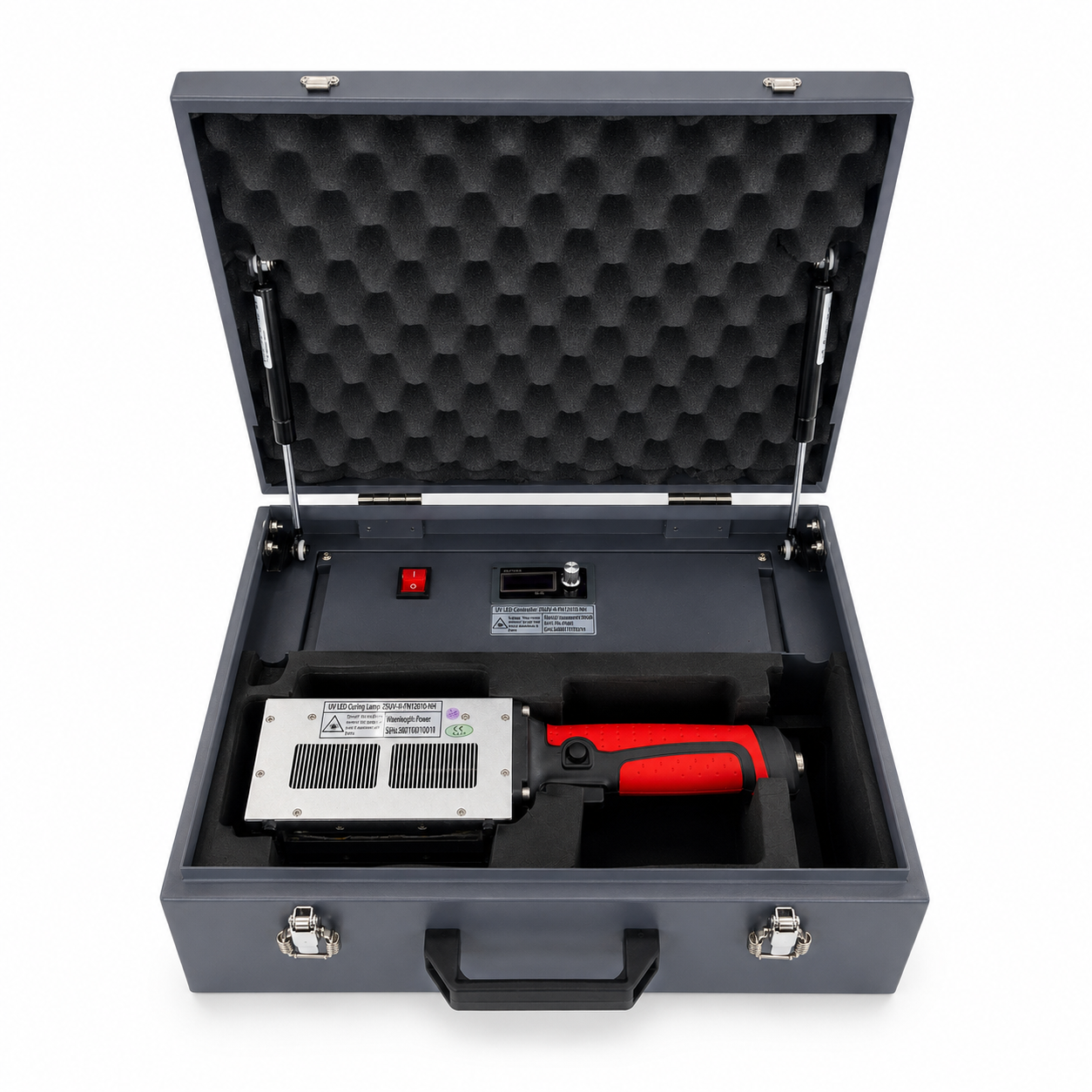

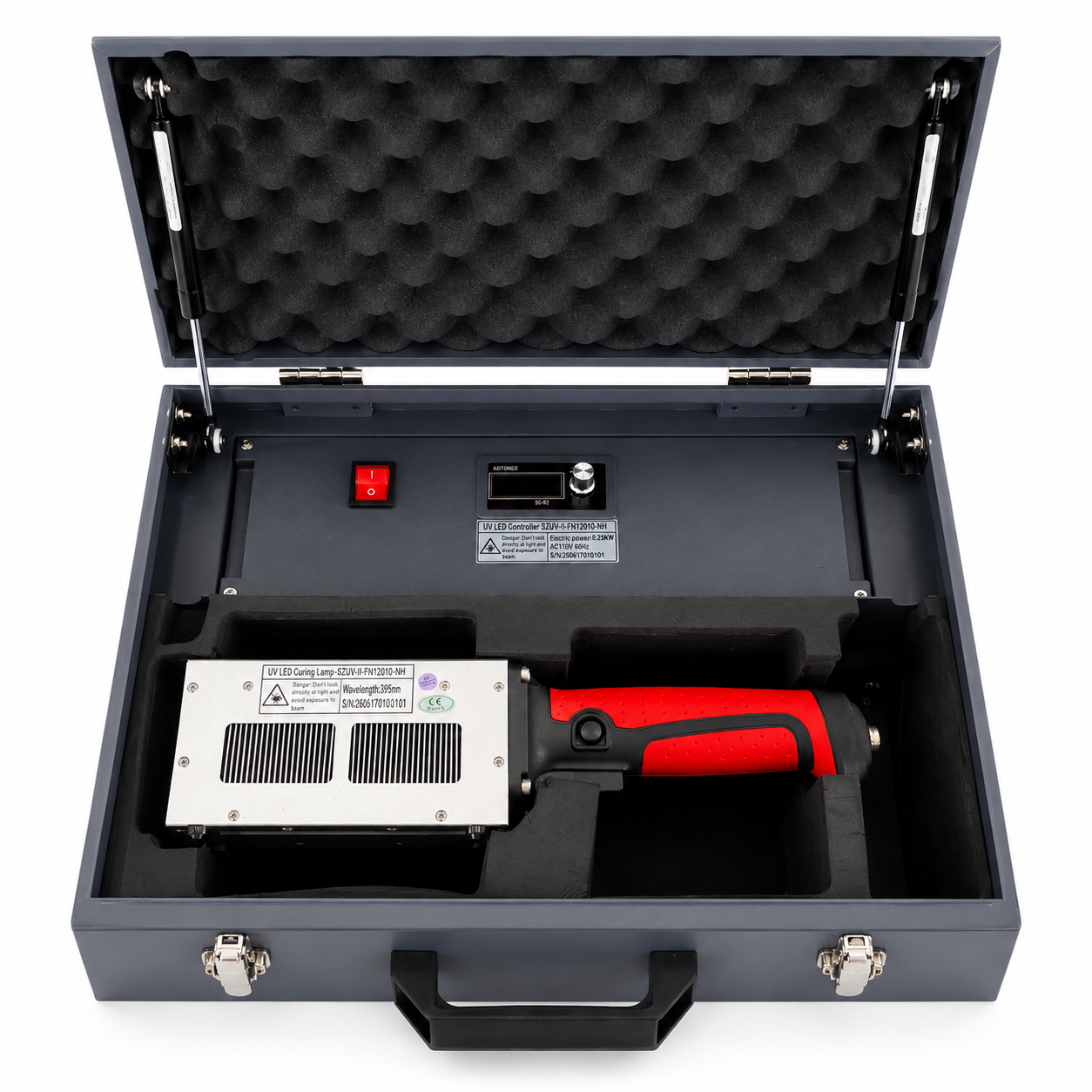

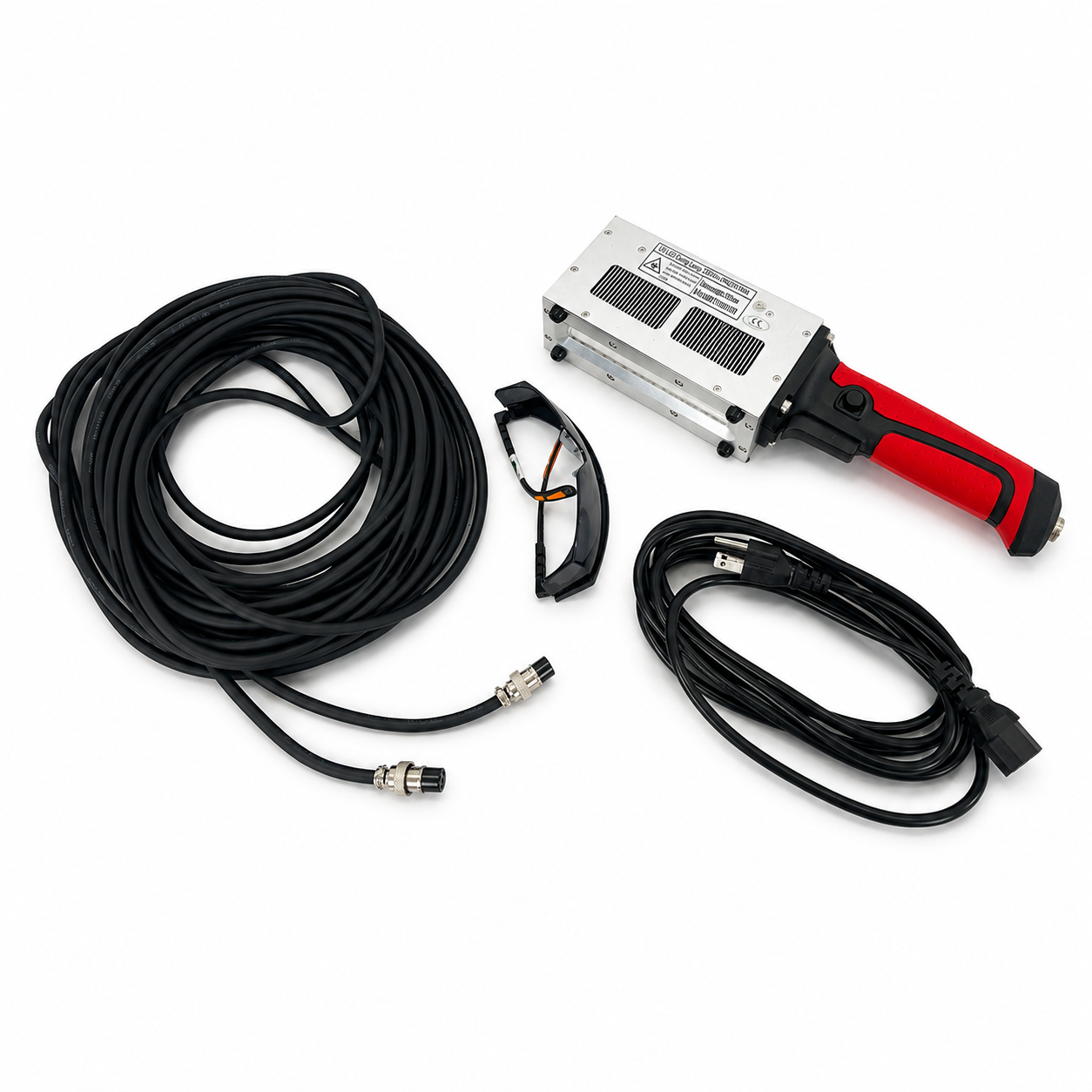

Nuestro sistema de curado LED UV portátil coloca un irradiador de curado LED de alta potencia en la palma de su mano, lo que le brinda una operación de curado más conveniente, móvil y segura. Disponible en 365 nm, 385 nm, 395 nm y 405 nm.
Características y Beneficios:
- Fácil de usar e intuitivo de usar.
- Alternativa de entrada de nivel a los procedimientos de curado tradicionales
- La excelente tecnología LED ecológica reemplaza al mercurio y proporciona resultados más seguros y eficientes
- Rentable y ahorrador de energía
- Las longitudes de onda disponibles garantizan que obtenga el sistema adecuado para el trabajo necesario
- Intensidad de luz ajustable
- La refrigeración por aire forzado garantiza la vida útil extendida del conjunto de LED
- Aplicación versátil para proyectos de precisión
Su diseño ergonómico, compacto, liviano y fácil de usar garantiza comodidad durante el uso prolongado, proporcionando un control óptimo para aplicaciones precisas. Sus potentes módulos LED UV ecológicos reemplazan eficazmente las bombillas de mercurio tradicionales capaces de curar cómodamente materiales sensibles al calor y reducir el consumo de energía y el impacto ambiental.
Su eficacia supera a los métodos de curado tradicionales, mejorando la productividad sin sacrificar la calidad. Es versátil y confiable y se adapta a la electrónica, el ensamblaje de dispositivos médicos, la reparación de automóviles y más.
Especificaciones técnicas:
- Dimensiones del controlador: largo 320 mm x ancho 206 mm x alto 153 mm ( largo 12,5 pulgadas x ancho 8,1 pulgadas x alto 6 pulgadas )

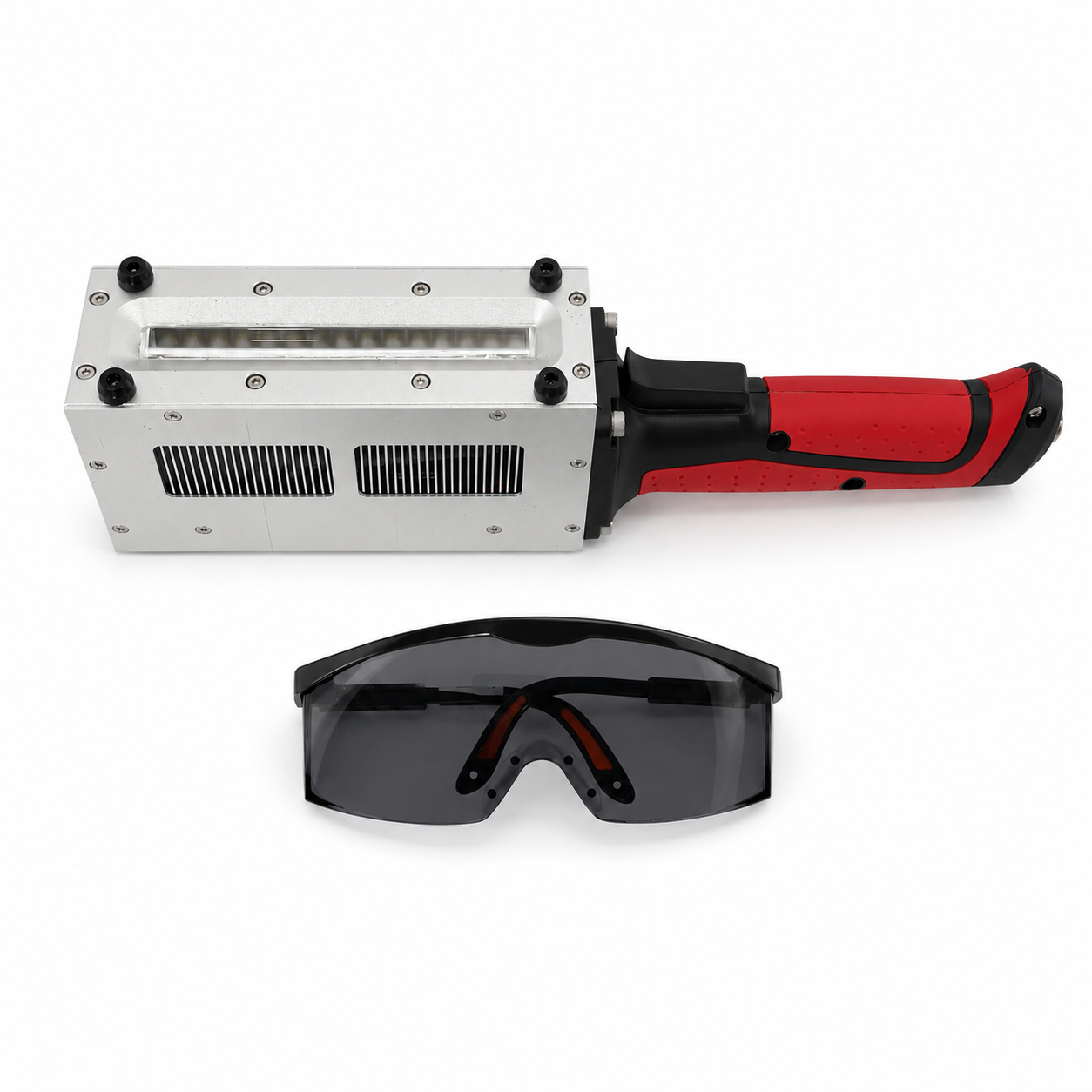

- Dimensiones de la lámpara: L428 mm x W59 mm x H80 mm (L 16,8 pulg. x W2,3 pulg. x H3,1 pulg.)
- Área de curado : 220 mm x 10 mm (8,6 pulg. x 0,3 pulg.)
- Longitudes de onda disponibles: 365 nm, 385 nm, 395 nm y 405 nm
- Intensidad de potencia: 5 W/cm 2 (distancia de curado de 20 mm)
- Vida útil del LED : ≥20000H
- Tipo de refrigeración: refrigeración por aire
- Ajuste de potencia: atenuación digital (1-100%)
- Entrada de energía: 120 VCA/60 Hz
- Consumo de energía: 140W
- Peso neto:
- 8 kg (17,6 libras) - Total
- 1,2 KG (2,6 lb) - Cabezal de irradiación
- Garantía: Un año
Si las unidades en stock no son su solución ideal, podemos personalizar estos sistemas para que se ajusten a sus necesidades exactas. No dude en llamarnos o enviarnos un correo electrónico a sales@cureuv.com o al 1(800) 977-7292.
More about our handheld UV curing system
Our handheld UV curing system provides an ergonomic, compact, lightweight, and user-friendly design for comfort during extended use, while providing optimal control for precise applications. Its eco-friendly, powerful UV LED modules effectively replace traditional mercury bulbs, allowing heat-sensitive materials to be cured efficiently while reducing energy consumption and environmental impact.
This UV LED curing system delivers efficient curing performance compared with traditional curing methods, improving productivity without compromising quality. Its portable design makes it ideal for precision bonding applications where accurate, controlled handheld UV curing is required.
For larger-scale production environments, you may also wish to explore our conveyor UV curing systems or UV LED chambers.
User Manual
Technical Specifications
| Controller Dimensions | L320mm x W206mm x H153mm (L12.5 in. x W8.1 in. x H6 in.) |
|---|---|
| Handheld Dimensions | L428mm x W59mm x H80mm (L16.8 in. x W2.3 in. x H3.1 in.) |
| Curing Area | 120mm x 10mm (4.7 in. x 0.3 in.) |
| Available Wavelengths | 365nm, 385nm, 395nm, and 405nm |
| Power Intensity | 5 W/cm² at 20mm curing distance |
| LED Lifespan | ≥20,000 hours |
| Cooling Type | Air cooling |
| Power Adjustment | Digital dimming from 1–100% |
| Power Input | 120VAC / 60Hz |
| Power Consumption | 140W |

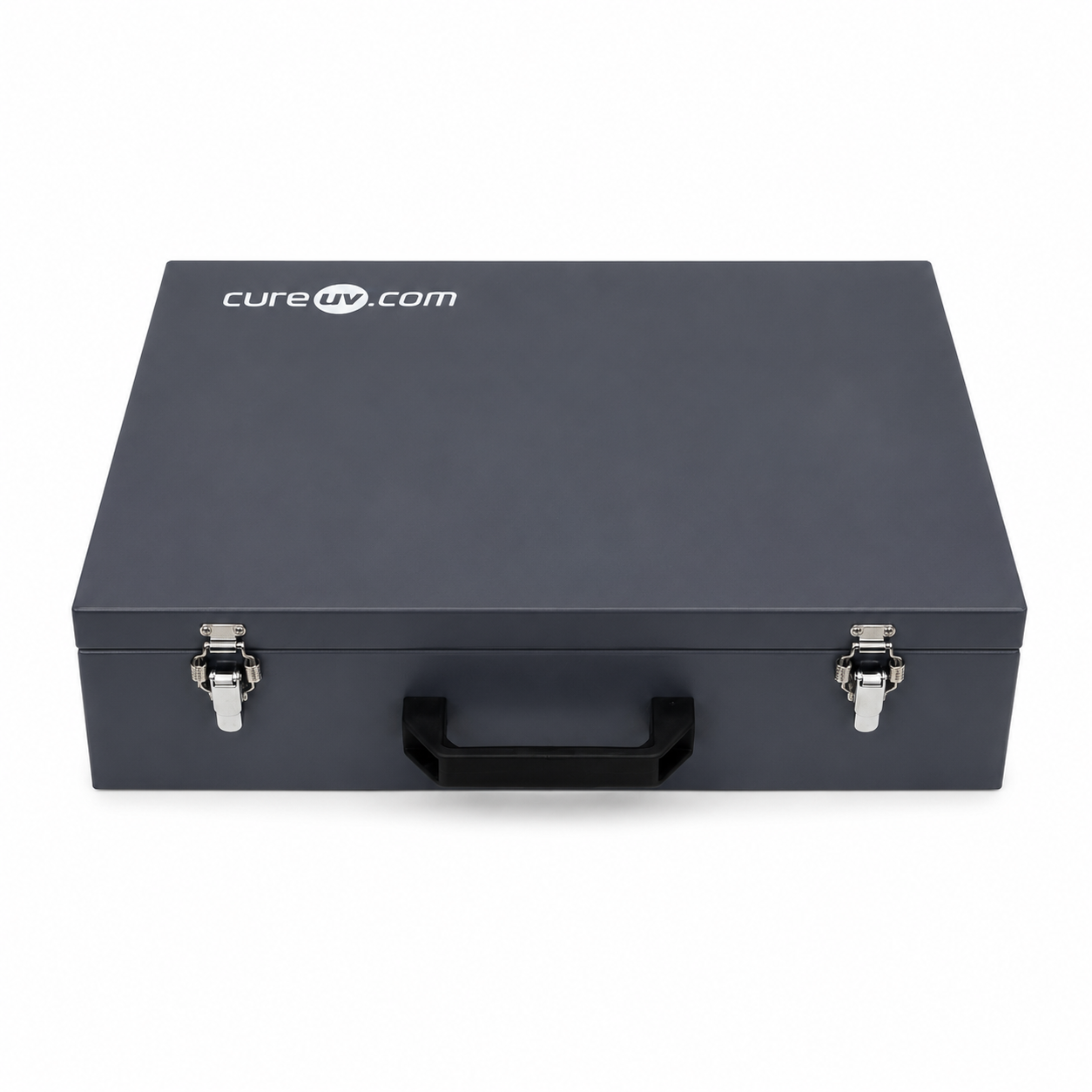

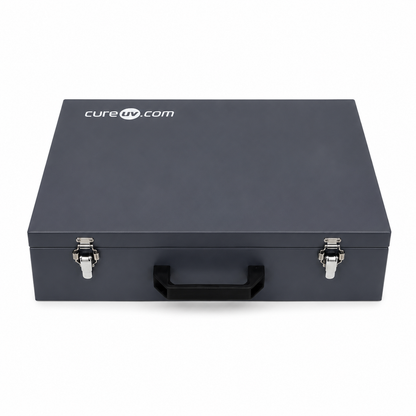

| Net Weight | Entire case and unit: 28 lbs Handheld irradiator: 2.0 lbs |
| Warranty | One year |
| Suitability | Suitable for curing UV adhesives, UV coatings, UV inks, and UV dyes across industries including electronics assembly, medical device manufacturing, automotive repair, and laboratory applications. |
Custom Handheld UV Curing Systems
If the in-stock units are not your ideal solution, we can customize these handheld UV curing systems to fit your exact needs. Please feel free to contact us, call 1(800) 977-7292, or email us at sales@cureuv.com.
Handheld UV LED Curing System FAQs
Which wavelength should I choose?
The correct wavelength depends on the material you are curing.
- 365nm – Common for specialist industrial adhesives and coatings.
- 385nm – Suitable for many general-purpose UV-curable materials.
- 395nm – Popular for adhesives, coatings, and printing applications.
- 405nm – Often used for resins and specialized curing applications.
Always check your material manufacturer's recommended curing wavelength before selecting your handheld UV LED curing system.
Is handheld UV curing suitable for precision work?
Yes. The ergonomic design of this UV LED curing system and focused curing area make this handheld UV curing unit ideal for precision applications where controlled curing is required. It allows users to accurately target small components, repairs, or assemblies without exposing surrounding areas, with ease and efficiency.
Can I adjust the curing intensity?
Yes. This UV LED curing system features digital dimming from 1% to 100%, allowing you to adjust the light intensity for different materials, curing speeds, and application requirements.
What applications is this handheld UV curing system suitable for?
This handheld UV curing system is suitable for a wide range of applications, including:
- Electronics assembly
- Medical device manufacturing
- Automotive repair
- Bonding and sealing
- UV adhesives
- UV coatings
- UV inks
- Laboratory and research environments
Its portable design makes it ideal for applications where mobility and precision are essential.
How does UV curing with LED technology work?
UV curing with LED technology emits a specific wavelength of ultraviolet light that activates photoinitiators within UV-curable materials. This allows the material to cure almost instantly without the need for excessive heat, providing fast, consistent, and reliable results.
Why should I choose a handheld UV curing system over a fixed system?
A handheld UV curing system offers greater flexibility by allowing you to bring the curing light directly to the workpiece. It's ideal for spot curing, repairs, prototypes, and large or awkwardly shaped components where a fixed system is not practical. This makes handheld UV curing a versatile solution for precision applications across a range of industries.
Can this UV LED curing system cure heat-sensitive materials?
Yes. Unlike traditional mercury UV lamps, UV curing with LED produces less heat, making it suitable for working on delicate assemblies. This handheld UV LED curing system provides fast and reliable curing performance even on heat-sensitive materials.
Do you offer other UV LED curing systems?
Yes. In addition to this handheld model, we supply a range of UV LED curing systems, including UV mountable systems and conveyor curing systems for production environments. If you're unsure which solution is right for your application, our team can help you choose the most suitable option.
