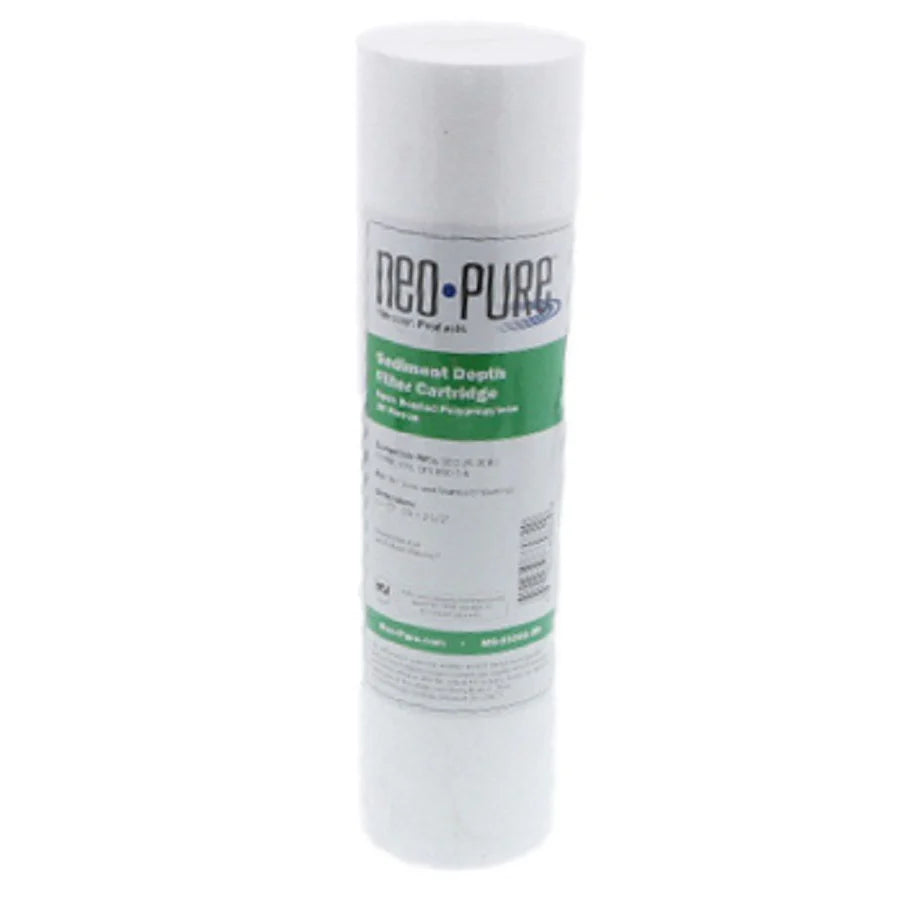

Neo-Pure MB-25098-10 2-1/2" x 9-7/8" Polypropylene Sediment Depth Filter 10 Mic

The Neo-Pure MB-25098-10 is a high-efficiency 9-7/8" sediment depth filter engineered for superior particulate removal in residential, commercial, and industrial applications. Designed as a pre-filtration stage, it effectively captures dirt, rust, sand, and other fine sediments, helping to protect downstream equipment and extend the life of primary filtration systems.

Manufactured from 100% pure melt-blown polypropylene, this filter offers graded density construction for maximum dirt-holding capacity and minimal pressure drop. It meets FDA CFR-21 standards for food contact applications and is tested and certified by NSF/ANSI Standard 42, ensuring safe and reliable filtration performance even in demanding environments. Each unit is sold individually for easy replacement or single-use applications.

Features & Benefits

• High Efficiency Filtration: 10 µm nominal rating effectively removes fine sediment, dirt, and rust.
• Durable Polypropylene Media: Resistant to chemicals and corrosion for long service life.
• Graded Density Structure: Ensures greater surface area and dirt-holding capacity.
• Low Pressure Drop: Designed for consistent flow performance with minimal restriction.
• NSF/ANSI 42 & 372 Certified: Tested and approved for structural integrity and material safety.
• FDA-Compliant Materials: Safe for potable water and food-contact applications.
• Wide Compatibility: Fits most standard 10″ (9-7/8″) × 2-1/2″ filter housings.
• Sold as a Single Piece: Convenient for individual replacement or maintenance scheduling.

Additional Details

This double open-ended (DOE) drop-in cartridge installs easily in a wide range of filter housings, including units from Culligan, AquaPure, Cuno, American Plumber, OmniFilter, Honeywell, and others. Ideal for use in reverse-osmosis pre-filters, beverage systems, commercial water purification, and general-purpose sediment removal.

Specifications:

• Micron Rating: 10 µm (nominal)
• Filter Type: Sediment Depth
• Media Type: Polypropylene
• Cartridge Style: Drop-in (DOE)
• Filter Construction: Melt-blown
• Contaminants Reduced: Sediment / Dirt / Rust
• Recommended Flow Rate: 5 GPM
• Initial Pressure Drop: 0.2 psi differential
• Pressure Drop at Flow Rate: < 1 psi typical
• Temperature Range: 40 °F – 150 °F
• Diameter: 2.5″
• Length: 9-7/8″ (10″ nominal)
• Weight: 0.303 lb
• Certifications: NSF/ANSI 42 & 372 | FDA CFR-21 compliant

Compatible Replacement For:

• SD-25-1010
• FPMB10-978
• SDC-25-1010
• SDF-25-1010
• VX10-9 7/8
• HMB-25098-10W
• FPMB1-978
• And other equivalent 9-7/8″ × 2-1/2″ sediment filters

Technical Data Sheet
