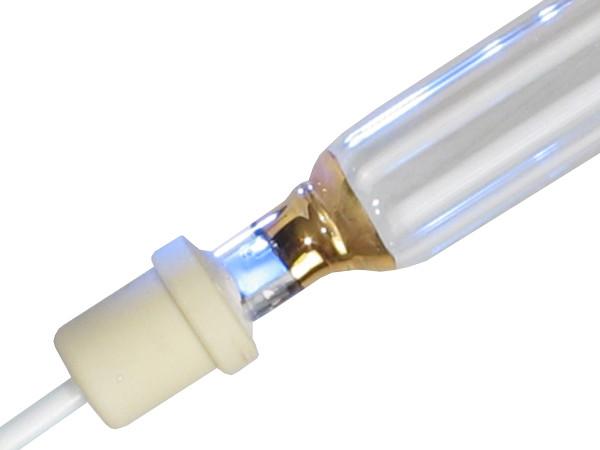

UVEXS # 13147-6 Replacement UV Curing Lamp

Guaranteed 100% Compatible Replacement Ultraviolet (UV) Lamp - 6 Inch Arc Length

The UVEXS Part # 13147-6 UV Curing Lamp Bulb is a 6 inch 200 WPI replacement bulb that exceeds OEM standards of bulb performance. The lamp bulb is 100% compatible to the UVEXS UV systems. The lamp bulb is compatible to the following part number:

• 13147-6

The replacement lamps work to dry coatings and inks in signs and graphics. The curing lamp consists of quartz glass plate that protects lamps from debris and works as a filler between the curing system and lamp. The plate prevents grit, dirt and contaminants from building up. Studies have shown that as the bulb hour rises, the lamps tend to produce less UV light and more heat. The excessive heat can cause the printed media to bulge and also damage the shutters and reflectors in the lamp housing. This can lead to a bad output and also high repairing costs.

Technical Specifications:

• Fill: Mercury
• Quartz: Standard
• Arc Length: 6 inches

• Tube Diameter: 21.5mm
• Wattage Per Inch: 200 WPI
