Easy Water EWUVSQ12 Replacement Quartz Sleeve - CureUV Brand

Easy Water EWUVSQ12 Replacement Quartz Sleeve – CureUV Brand

Dimensions: 22 mm (ID) × 24.5 mm (OD) × 910 mm (35.83") Length – Closed One End

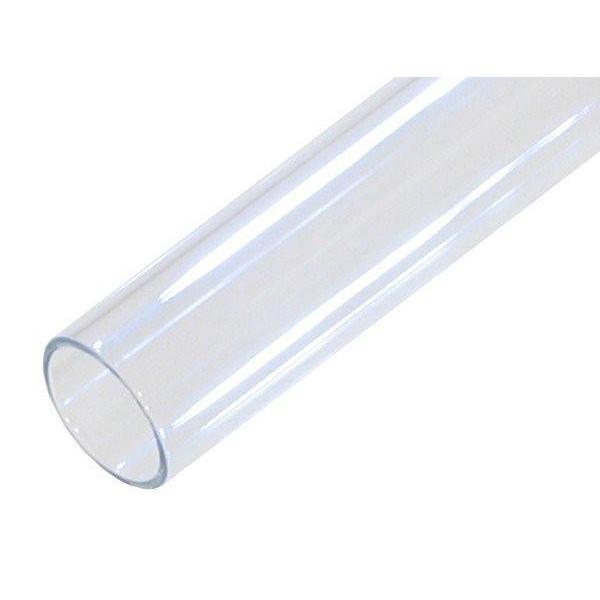

The CureUV Replacement Quartz Sleeve for Easy Water EWUVSQ12 is a high-quality replacement component designed to house and protect the UV-C lamp in compatible Easy Water ultraviolet water treatment systems. Manufactured from high-quality quartz glass, the sleeve allows germicidal UV-C energy to pass through while isolating the lamp from direct contact with water.

The closed-end design provides a protective barrier around the UV lamp, helping protect it from water exposure, contaminants, temperature changes, and mechanical damage. Its precision dimensions ensure proper fit and dependable performance in systems designed for the Easy Water EWUVSQ12 quartz sleeve.

Also compatible with:

• Easy Water EWUV-12


Features & Benefits

• Compatible Replacement: Designed as a direct replacement for the Easy Water EWUVSQ12 quartz sleeve.
• High UV-C Transmission: Quality quartz construction allows germicidal UV-C radiation to pass efficiently into the water treatment chamber.
• Lamp Protection: Isolates the UV lamp from direct water contact while helping protect against contaminants and temperature fluctuations.
• Closed-End Design: Provides proper lamp isolation and positioning within compatible UV water treatment systems.
• Precision Construction: Manufactured to consistent dimensions for reliable fit and sealing.

Technical Specifications

• Replacement Part Number: EWUVSQ12
• Material: Quartz Glass
• Design: Closed One End
• Inner Diameter (ID): 22 mm
• Outer Diameter (OD): 24.5 mm
• Length: 910 mm (35.83")
• Application: UV Water Treatment Systems

Maintenance

Quartz sleeves should be inspected and cleaned periodically to remove mineral deposits, scale, and other buildup that can reduce UV transmission. Replace the sleeve if it becomes permanently cloudy, scratched, cracked, or otherwise damaged. Always inspect the system seals and O-rings during sleeve maintenance and ensure the sleeve is correctly installed before returning the UV system to service.

Common Applications

• Residential drinking water treatment
• Well water treatment
• Point-of-entry UV water systems
• Commercial water treatment
• Food and beverage applications
• Aquaculture
• Laboratory water systems
• General UV water disinfection systems

Note: CureUV.com stocks compatible replacement products designed to meet or exceed the fit and performance requirements of the original equipment.
