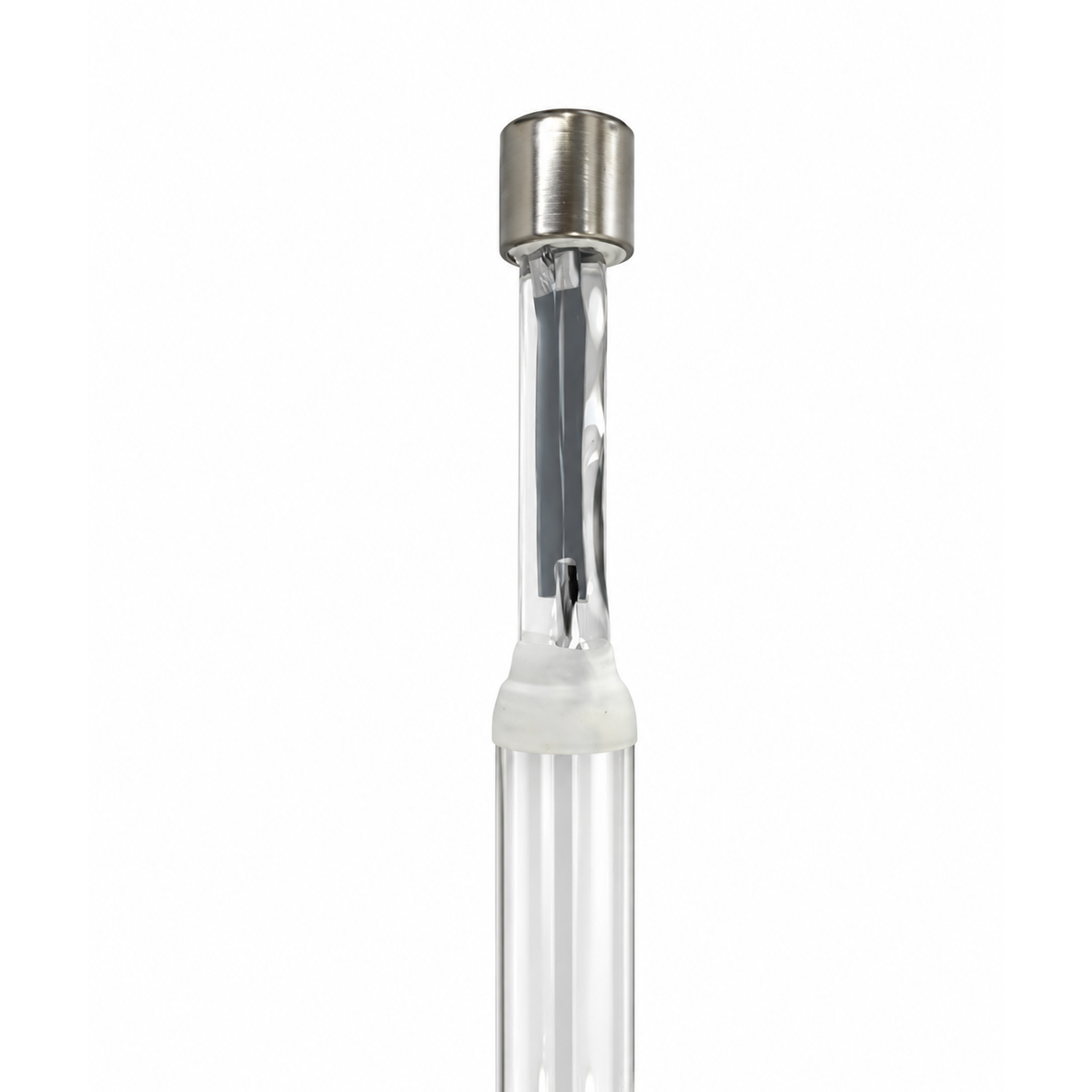

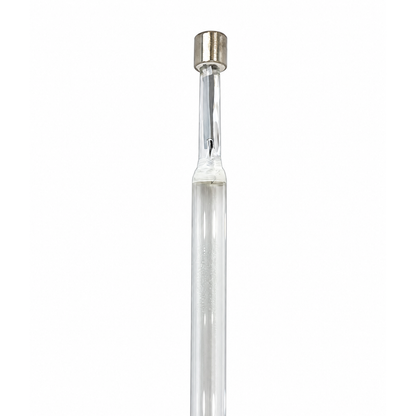

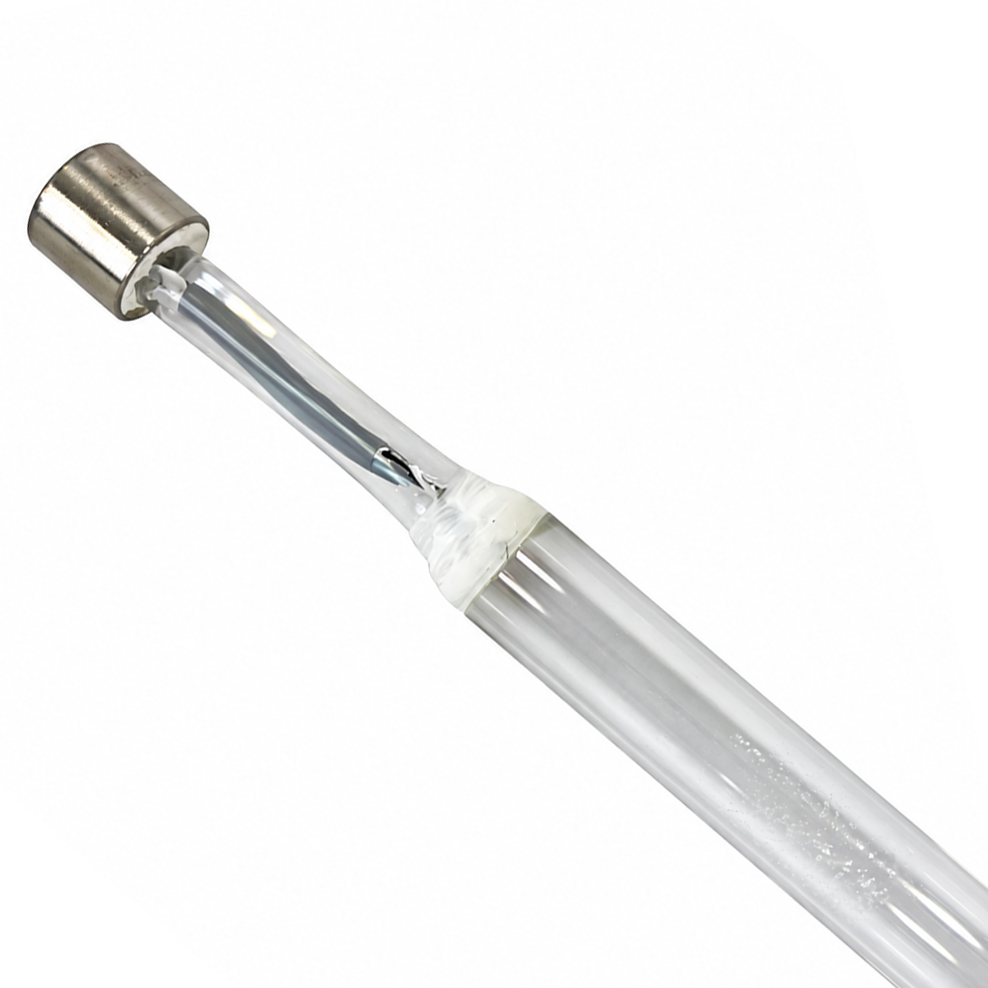

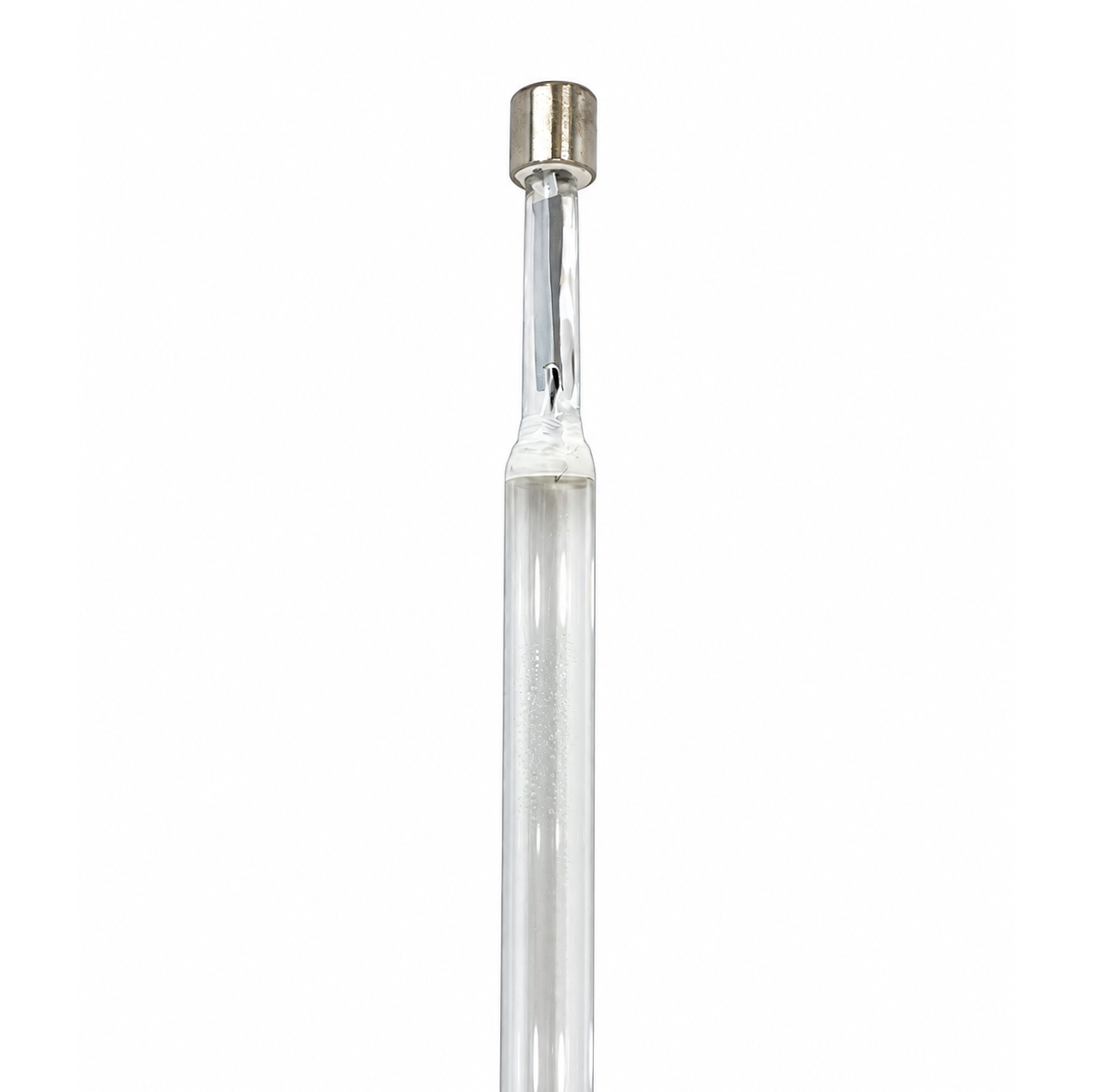

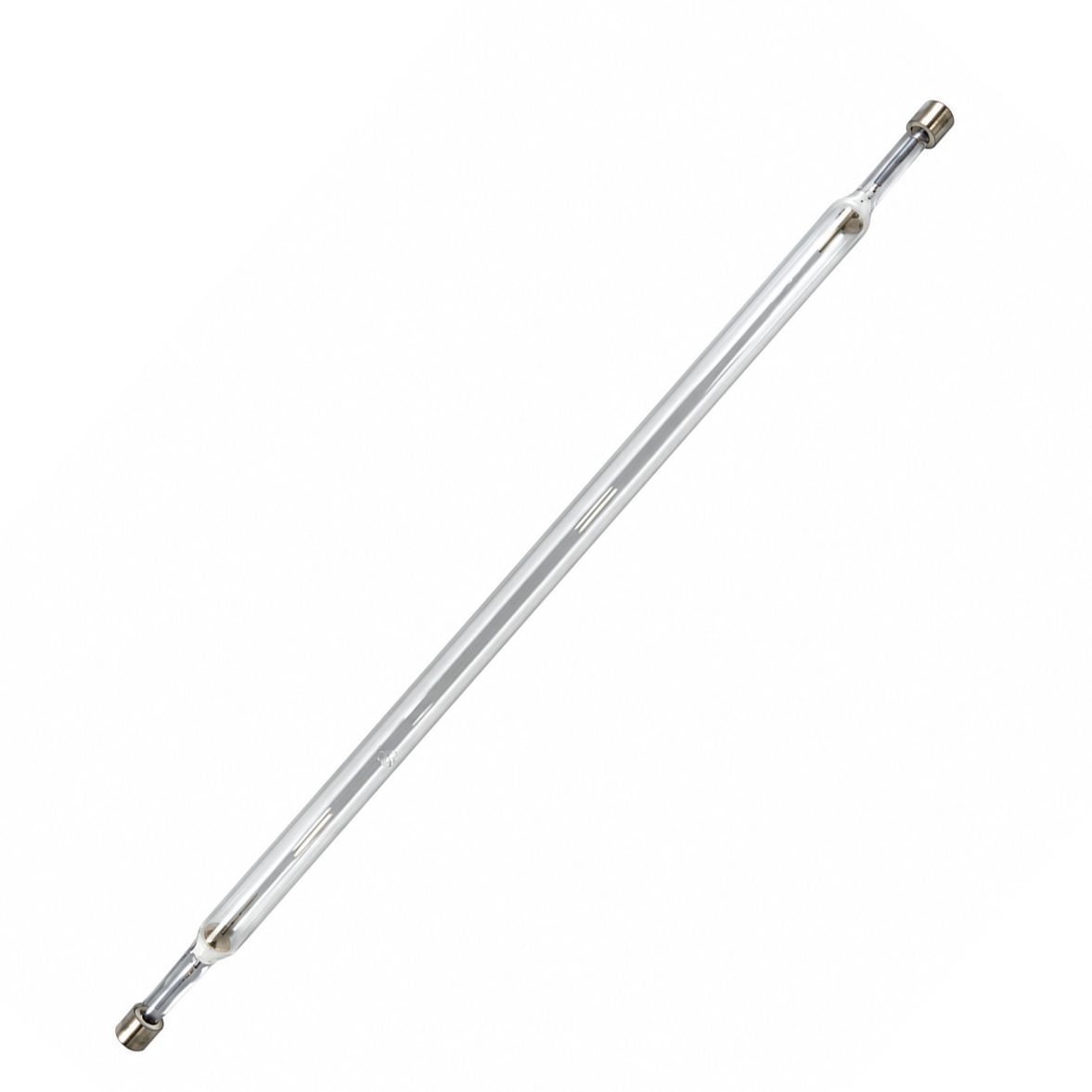

UV Process Supply (UVPS) Replacement Curing Lamp 18.1" Arc Length # 18SPL

Guaranteed 100% Compatible Replacement Ultraviolet (UV) Curing Lamp – 18.1" Arc Length

The UV Process Supply (UVPS) Replacement Curing Lamp # 18SPL is an 18.1-inch arc length UV curing lamp designed for industrial ultraviolet curing applications. Its medium-length arc configuration provides dependable curing coverage for UV-sensitive inks, coatings, adhesives, and other curable materials.

Manufactured using high-quality quartz and precision construction, this replacement UV lamp is designed to provide stable and consistent ultraviolet energy across its 18.1-inch arc length. It is well suited for production environments requiring reliable curing performance in printing, coating, graphics, and conveyor-based UV systems.

This replacement lamp features a 15 mm tube diameter and a total overall length of 23 inches (586 mm), providing a compact, narrow-diameter configuration for compatible UV curing equipment.

Our replacement UV lamps are designed to provide dependable curing performance at a cost-effective price point, helping maintain production efficiency while minimizing equipment downtime.

Applications

• UV printing systems
• Industrial coating and finishing lines
• Ink and adhesive curing
• Graphics and signage production
• Packaging and labeling processes
• Conveyor-based UV curing systems

Technical Specifications

• Arc Length: 18.1 inches (460 mm)
• Overall Length (TOL): 23 inches (586 mm)
• Lamp Diameter: 15 mm
• Lamp Type: UV curing lamp
• Part Number: 18SPL
• Brand: UV Process Supply (UVPS)

Cross-Reference / Replacement Part Numbers

• UV Process Supply (UVPS): 18SPL
• UV Process Supply (UVPS): UVPS 18SPL
• UV Process Supply (UVPS): UVPS18SPL
• Alternate Part Number: 200120
• Alternate Part Number: 144321

Also searched as: UVPS 18SPL, UVPS18SPL, UVPS-18SPL, 18SPL UV Lamp, 18SPL UV Curing Lamp, 200120 UV Lamp, 144321 UV Lamp.

Lamp Identification: 18.1" (460 mm) arc length, 23" (586 mm) overall length, and 15 mm lamp diameter.

Cross-Reference Information: UVPS 18SPL is the primary reference for this lamp configuration. Part numbers 200120 and 144321 are also marked on the lamp and should be included when cross-referencing replacement options. The 460 mm arc length, 586 mm overall length, and 15 mm tube diameter should be used to confirm compatibility.

When cross-referencing this lamp with another manufacturer, verify the arc length, overall length, lamp diameter, electrical rating, spectral chemistry, and terminal/lead configuration before installation.

Still not sure if this is the correct replacement lamp? We understand that identifying UV curing lamps can be challenging. Contact us at sales@cureuv.com or call 1-800-977-7292 and we’ll help you find the exact match.
