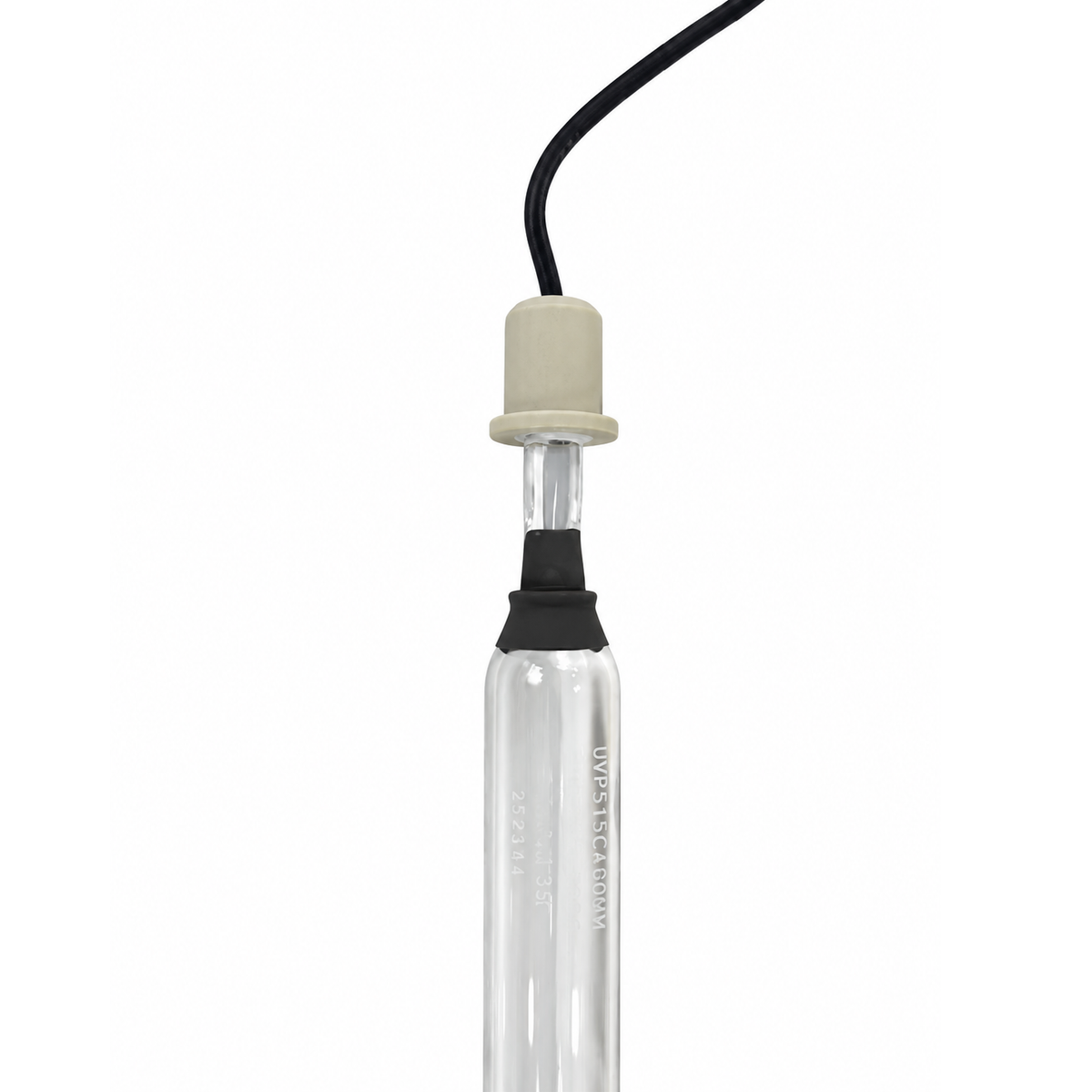

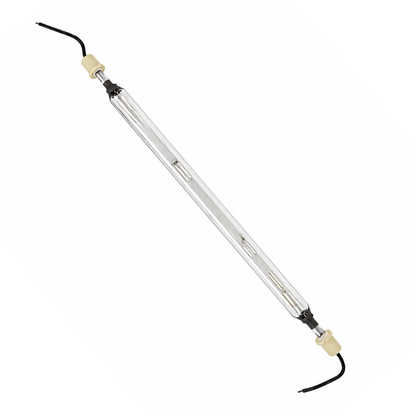

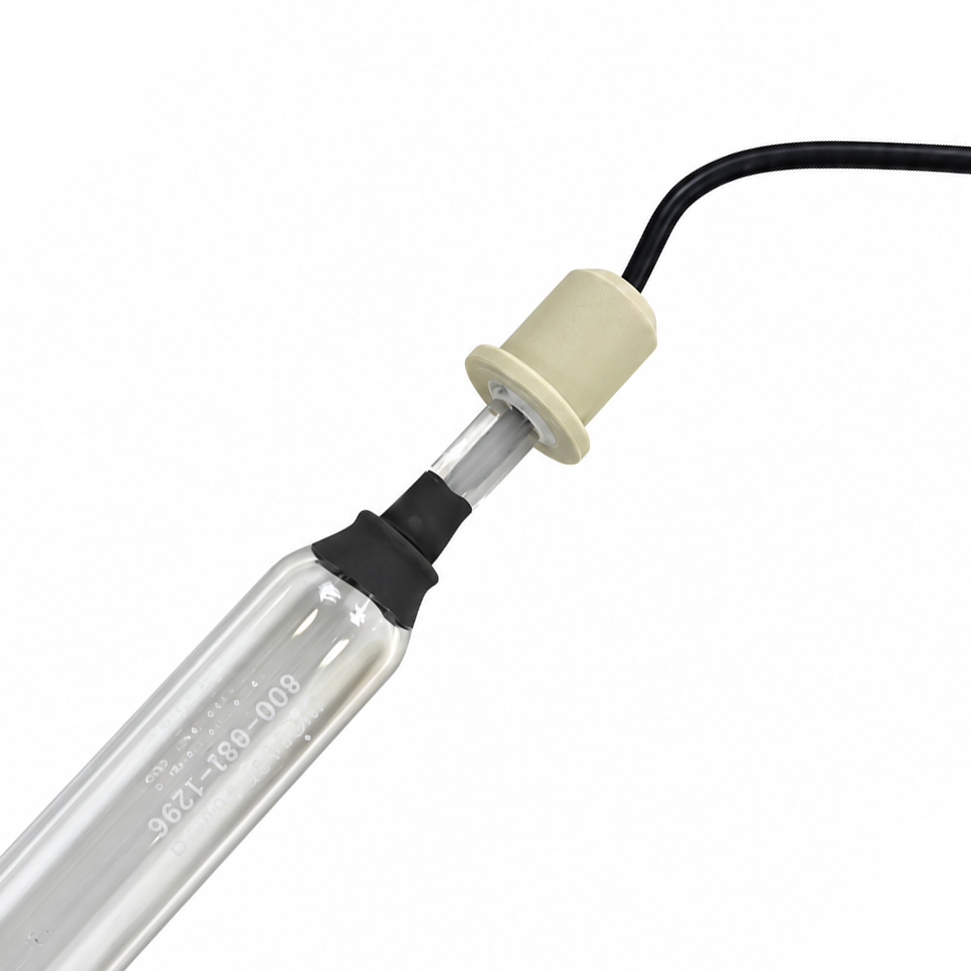

UV Process Supply (UVPS) Iron Doped Replacement Curing Lamp 14.57" Arc Length # UVPS15C400MH

Guaranteed 100% Compatible Replacement Ultraviolet (UV) Curing Lamp – 14.57" Arc Length – Iron Doped

The UV Process Supply (UVPS) Replacement Curing Lamp # UVPS15C400MH is a 14.57-inch arc length iron-doped UV curing lamp designed for industrial ultraviolet curing applications. Its doped spectral output is suitable for curing processes that benefit from enhanced wavelength distribution compared with standard mercury lamps.

Manufactured using high-quality quartz and precision construction, this replacement UV lamp is designed to provide stable and consistent ultraviolet energy across its 14.57-inch arc length. It is well suited for production environments requiring reliable curing performance in printing, coating, graphics, adhesives, and conveyor-based UV systems.

This replacement lamp features a 25 mm tube diameter, a total overall length of 19.8 inches (505 mm), and 3-inch wire leads for connection to compatible UV curing equipment.

Our replacement UV lamps are designed to provide dependable curing performance at a cost-effective price point, helping maintain production efficiency while minimizing equipment downtime.

Applications

• UV printing systems
• Industrial coating and finishing lines
• Ink and adhesive curing
• Graphics and signage production
• Packaging and labeling processes
• Conveyor-based UV curing systems

Technical Specifications

• Arc Length: 14.57 inches (370 mm)
• Overall Length (TOL): 19.8 inches (505 mm)
• Lamp Diameter: 25 mm
• Spectral Chemistry: Iron doped
• Leads: 3" wire leads
• Lamp Type: UV curing lamp
• Part Number: UVPS15C400MH

Cross-Reference / Replacement Part Numbers

• UV Process Supply (UVPS): 15C400MH
• UV Process Supply (UVPS): UVPS 15C400MH
• UV Process Supply (UVPS): UVPS15C400MH

Also searched as: UVPS15C400MH, UVPS 15C400MH, UVPS-15C400MH, 15C400MH UV Lamp, 15C400MH UV Curing Lamp, iron-doped UV curing lamp.

Lamp Identification: 14.57" (370 mm) arc length, 19.8" (505 mm) overall length, 25 mm lamp diameter, iron-doped spectral chemistry, with 3" wire leads.

Cross-Reference Information: UVPS15C400MH is the primary reference for this lamp configuration. The 370 mm arc length, 505 mm overall length, 25 mm tube diameter, iron-doped chemistry, and 3-inch lead configuration should be used when comparing replacement lamps from other manufacturers.

When cross-referencing this lamp with another manufacturer, verify the arc length, overall length, lamp diameter, electrical rating, spectral chemistry, and terminal/lead configuration before installation.

Still not sure if this is the correct replacement lamp? We understand that identifying UV curing lamps can be challenging. Contact us at sales@cureuv.com or call 1-800-977-7292 and we’ll help you find the exact match.
