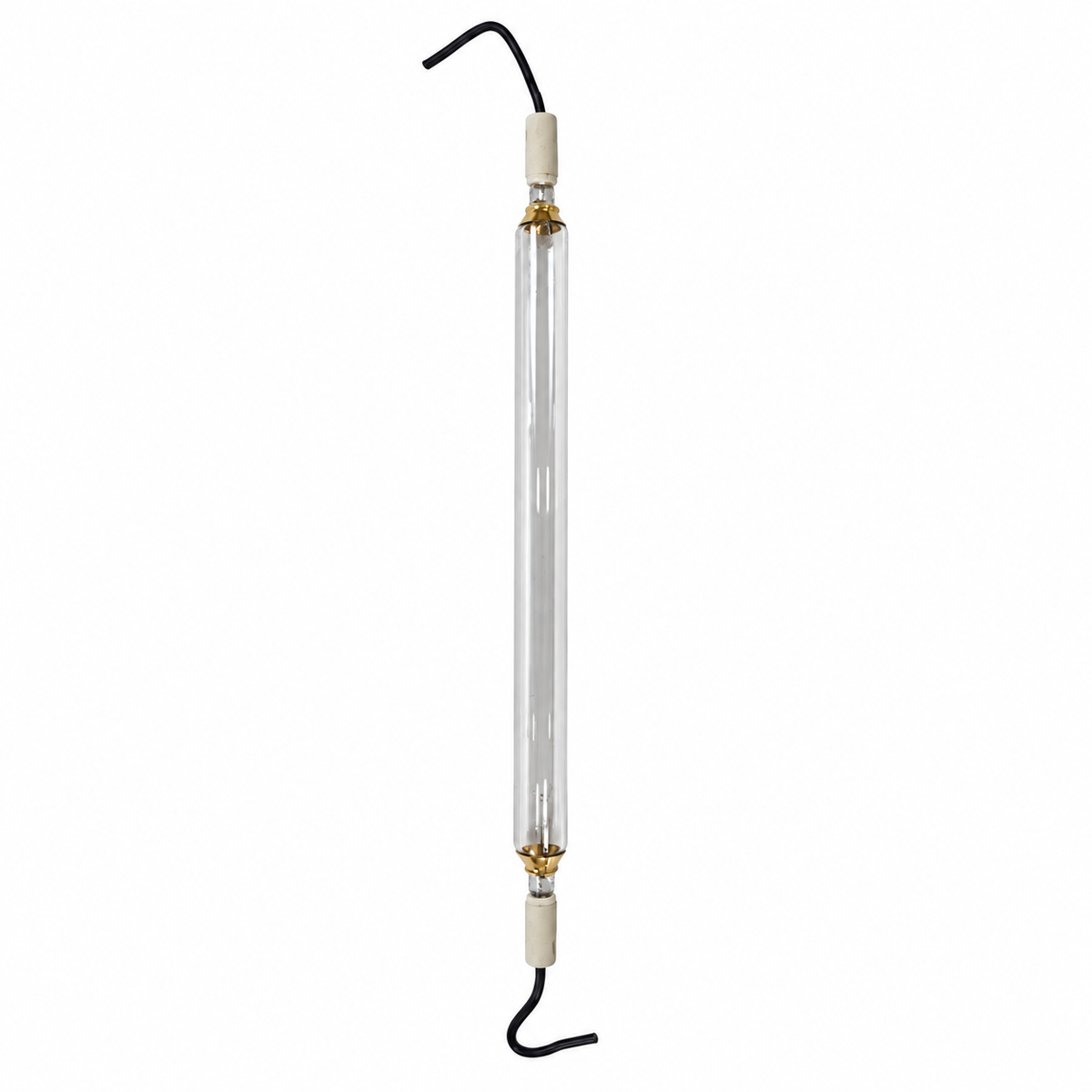

UV Process Supply (UVPS) Replacement Curing Lamp 14" Arc Length # UVPSA43073HD

Guaranteed 100% Compatible Replacement Ultraviolet (UV) Curing Lamp – 14" Arc Length

The UV Process Supply (UVPS) Replacement Curing Lamp # UVPSA43073HD is a 14-inch arc length UV curing lamp designed for industrial ultraviolet curing applications. Its compact-to-medium arc configuration provides dependable curing coverage for UV-sensitive inks, coatings, adhesives, and other curable materials.

Manufactured using high-quality quartz and precision construction, this replacement UV lamp is designed to provide stable and consistent ultraviolet energy across its 14-inch arc length. It is well suited for production environments requiring reliable curing performance in printing, coating, graphics, and conveyor-based UV systems.

This replacement lamp features a 25 mm tube diameter, a total overall length of 19 inches (483 mm), End Fitting "B," and 4-inch wire leads for connection to compatible UV curing equipment.

Our replacement UV lamps are designed to provide dependable curing performance at a cost-effective price point, helping maintain production efficiency while minimizing equipment downtime.

Applications

• UV printing systems
• Industrial coating and finishing lines
• Ink and adhesive curing
• Graphics and signage production
• Packaging and labeling processes
• Conveyor-based UV curing systems

Technical Specifications

• Arc Length: 14 inches (360 mm)
• Overall Length (TOL): 19 inches (483 mm)
• Lamp Diameter: 25 mm
• End Fitting: "B"
• Leads: 4" wire leads
• Lamp Type: UV curing lamp
• Part Number: UVPSA43073HD

Cross-Reference / Replacement Part Numbers

• UV Process Supply (UVPS): A43073HD
• UV Process Supply (UVPS): UVPS A43073HD
• UV Process Supply (UVPS): UVPSA43073HD

Also searched as: UVPS A43073HD, UVPSA43073HD, UVPS-A43073HD, A43073HD UV Lamp, A43073HD UV Curing Lamp.

Lamp Identification: 14" (360 mm) arc length, 19" (483 mm) overall length, 25 mm lamp diameter, End Fitting "B," with 4" wire leads.

Cross-Reference Information: UVPSA43073HD is the primary reference for this lamp configuration. The 360 mm arc length, 483 mm overall length, 25 mm tube diameter, End Fitting "B," and 4-inch lead configuration should be used when comparing replacement lamps from other manufacturers.

When cross-referencing this lamp with another manufacturer, verify the arc length, overall length, lamp diameter, electrical rating, spectral chemistry, and terminal/lead configuration before installation.

Still not sure if this is the correct replacement lamp? We understand that identifying UV curing lamps can be challenging. Contact us at sales@cureuv.com or call 1-800-977-7292 and we’ll help you find the exact match.
