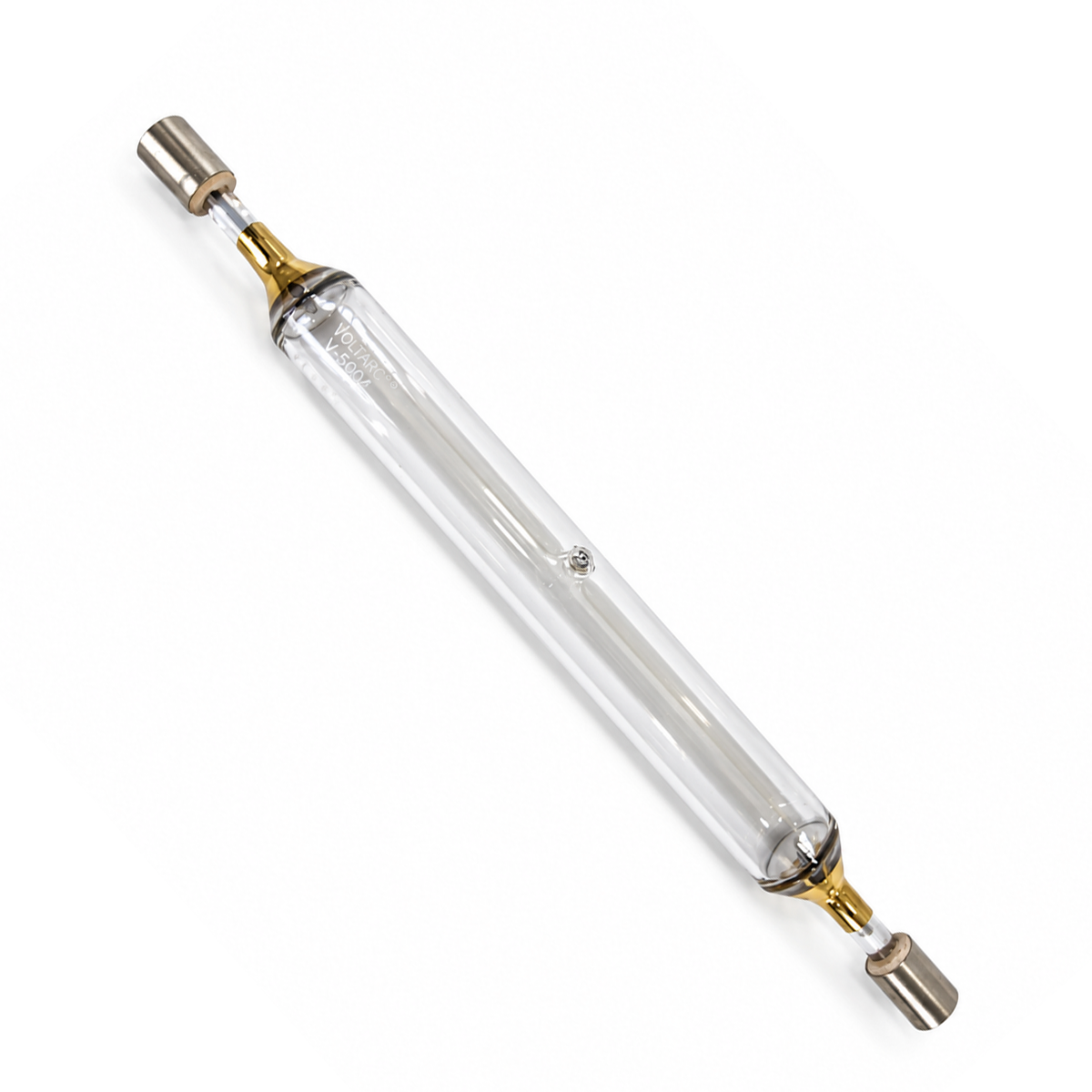

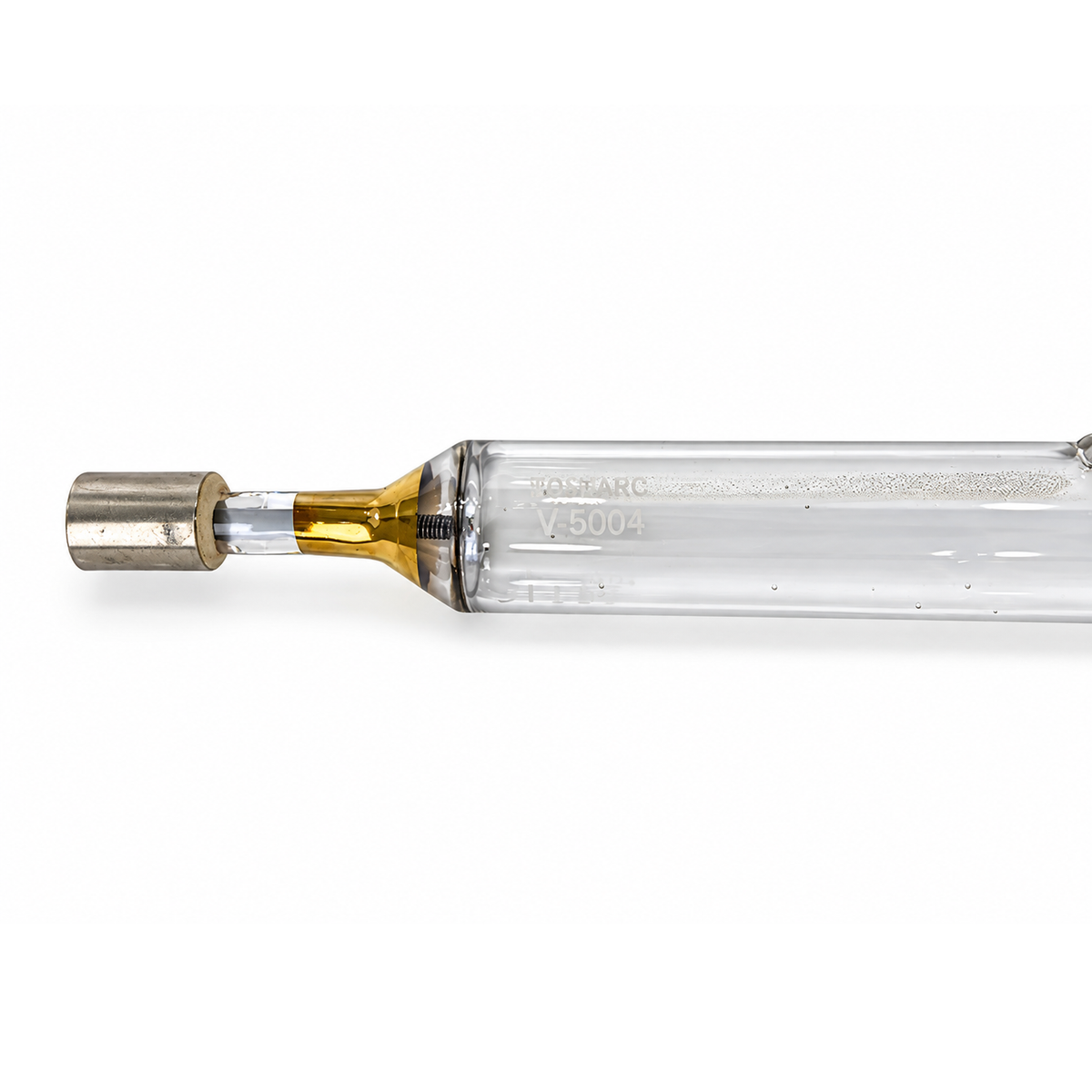

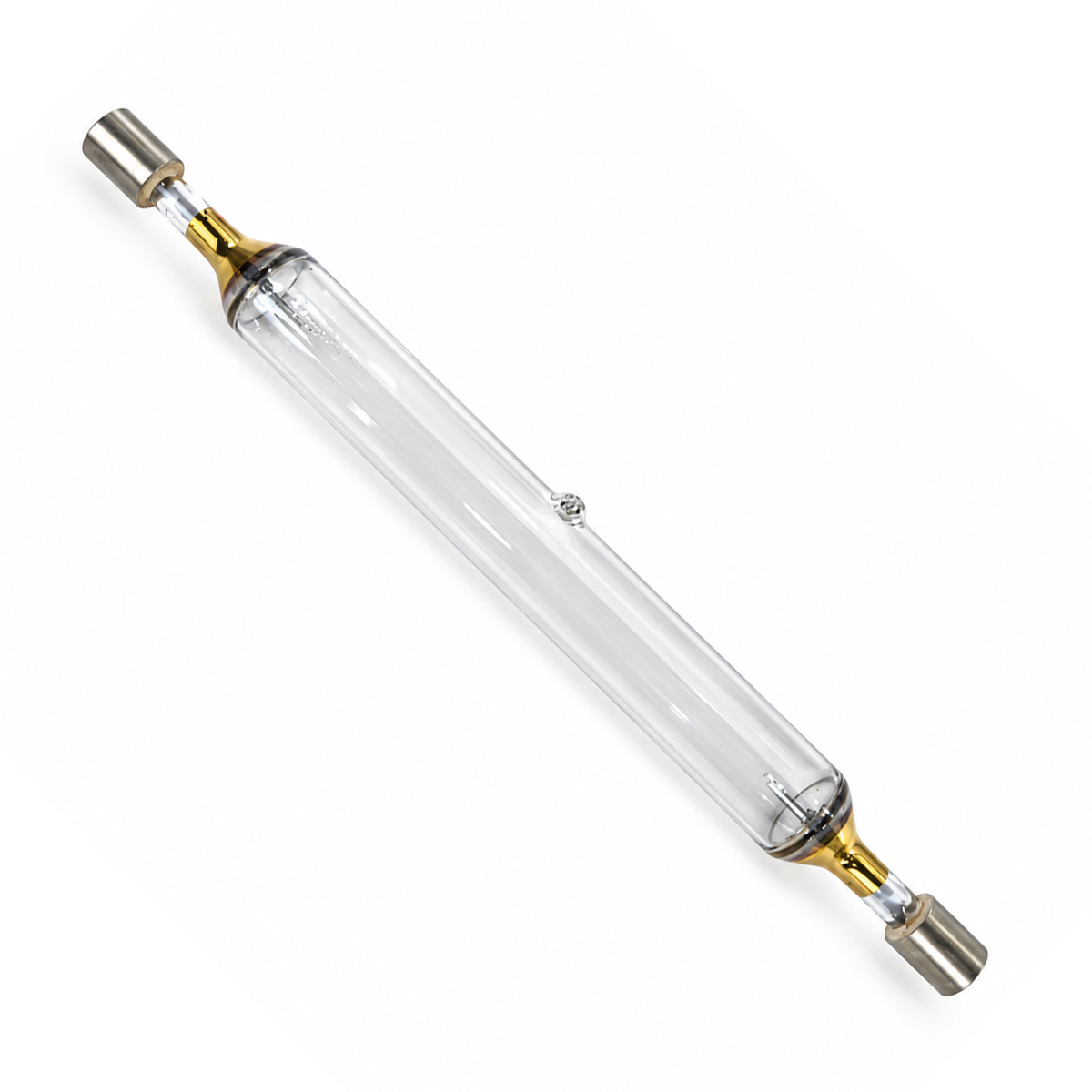

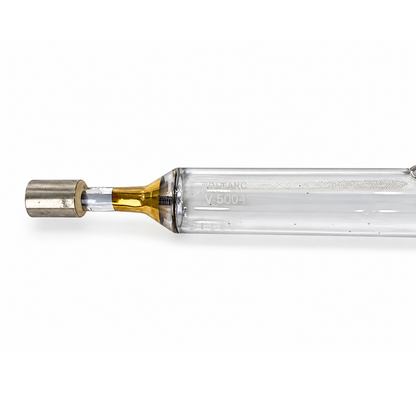

Voltarc Replacement Curing Lamp 6.88" Arc Length # V-5004

Guaranteed 100% Compatible Replacement Ultraviolet (UV) Curing Lamp – 6.88" Arc Length

The Voltarc Replacement Curing Lamp # V-5004 is a 6.88-inch arc length UV curing lamp designed for industrial ultraviolet curing applications. Its compact arc configuration provides dependable curing coverage for UV-sensitive inks, coatings, adhesives, and other curable materials.

Manufactured using high-quality quartz and precision construction, this replacement UV lamp is designed to provide stable and consistent ultraviolet energy across its 6.88-inch arc length. It is well suited for production environments requiring reliable curing performance in printing, coating, graphics, and conveyor-based UV systems.

This replacement lamp features a 24 mm tube diameter and a total overall length of 11 inches (280 mm), providing a compact configuration for compatible UV curing equipment.

Our replacement UV lamps are designed to provide dependable curing performance at a cost-effective price point, helping maintain production efficiency while minimizing equipment downtime.

Applications

• UV printing systems
• Industrial coating and finishing lines
• Ink and adhesive curing
• Graphics and signage production
• Packaging and labeling processes
• Conveyor-based UV curing systems

Technical Specifications

• Arc Length: 6.88 inches (175 mm)
• Overall Length (TOL): 11 inches (280 mm)
• Lamp Diameter: 24 mm
• Lamp Type: UV curing lamp
• Part Number: V-5004
• Brand: Voltarc

Cross-Reference / Replacement Part Numbers

• Voltarc: V-5004
• Voltarc: V5004
• Voltarc: V 5004

Also searched as: Voltarc V-5004, Voltarc V5004, V-5004 UV Lamp, V5004 UV Curing Lamp.

Lamp Identification: 6.88" (175 mm) arc length, 11" (280 mm) overall length, and 24 mm lamp diameter.

Cross-Reference Information: Voltarc V-5004 is the primary reference for this lamp configuration. The 175 mm arc length, 280 mm overall length, and 24 mm tube diameter should be used when comparing replacement lamps from other manufacturers.

When cross-referencing this lamp with another manufacturer, verify the arc length, overall length, lamp diameter, electrical rating, spectral chemistry, and terminal/lead configuration before installation.

Still not sure if this is the correct replacement lamp? We understand that identifying UV curing lamps can be challenging. Contact us at sales@cureuv.com or call 1-800-977-7292 and we’ll help you find the exact match.
