Guaranteed 100% Compatible Replacement Ultraviolet (UV) Lamp - Iron Wavelength - 7 Inch Arc Length - 9.84 Inch Total Length (end to end)

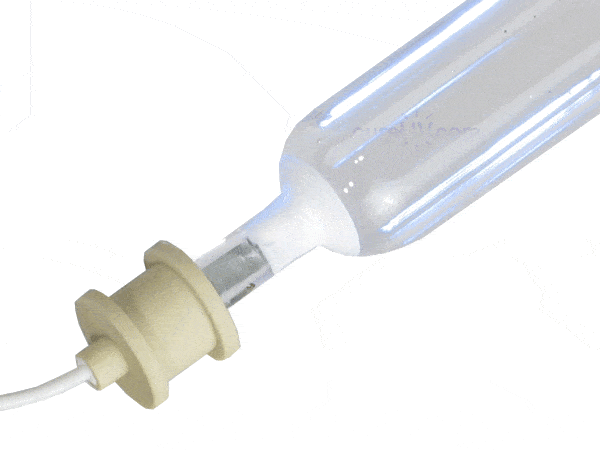

The Agfa Anapurna M2 Digital UV Printer Lamp Bulb is a guaranteed replacement UV bulb that is a medium pressure iron doped metal halide curing lamp. It exceeds OEM standards of UV curing bulbs. With an arc length of 7" and wattage of 2010W, this lamp is considered one of the most effective, high quality and output UV emitters in the market.

The replacement lamps work to dry coatings and inks in signs and graphics. The curing lamp consists of quartz glass plate that protects lamps from debris and works as a filler between the curing system and lamp. The plate prevents grit, dirt and contaminants from building up.

The UV curing bulb is used extensively in the printing industry, mainly for curing coatings and inks. UV curing lamps are necessary for the drying system and are a better option to infra red drying as it resists smudges. UV Curing also enables environmentally friendly elements of UV printing and reduces the use of energy. The Agfa Anapurna M2 Digital UV Printer Lamp Bulb is used for the following machine model:

501551
V0 170D
V0170D
170D-140
170D140
Vzero 170D
Anapurna M2
F07A3F1
V170D
UVL/3307M

Made using the material Quartz, the UV lamp bulb can easily withstand high temperatures. The iron doped UV replacement lamp from CureUV, are subjected to strict quality control measures to ensure you get only the best.

The UV lamp bulb is used in the following industry:

Printing
Graphics
Electronics
Wood processing
Surface treatments
Packaging
Automotive

Technical Specifications:

Fill: Iron Metal-Halide
Quartz: Standard
Arc Length: 7 Inches
Overall Length: 9.84 Inches
Tube Diameter: 18mm
Watts Per Inch: 200, 300, 400 WPI
Wattage: 2010W

Ultraviolet (UV) spectral output of an iron doped lamp

Agfa Anapurna M2 digital UV lamp drawing

Ultraviolet (UV) Spectral Output - Iron Metal-Halide Lamp (PDF)

Agfa Anapurna M2 UV Lamp - Drawing (PDF)

*Fe - Lamp contains iron - manage in accordance with your local disposal laws by visiting: www.lamprecycle.org

*All UV lamps listed are compatible brand UV products. We do not sell Agfa brand UV lamps. All Agfa brand names, trademarks and logos are property of Agfa.

*Warning: Ultraviolet light is harmful to your eyes and skin. Use proper safety gear.

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
