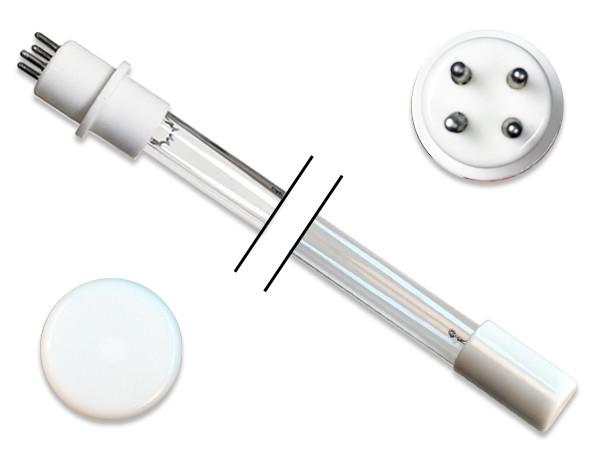

4 Pin Cell Base on a Single End - 84 Watt Germicidal Air & Surface Treatment Bulb
Steril-Aire GTS36VO UV Light Bulb is 84 watts and 100% compatible with germicidal OEM air & surface disinfection filters, UV sanitizers, and ultraviolet air purifiers. This high output germicidal lamp is widely used in forced air duct systems and water disinfection applications and gives you a worry-free performance for 1 year.
The lamp eliminates bacteria and it is necessary that you schedule regular cleaning of the bulb and replace it annually for better efficiency. The germicidal UVC bulbs come with a wavelength of 253.7 nm which is defined as a germicidal category. The light produced by the bulb enables the destruction of bacteria, viruses, and other pathogens by deactivating their genetic material.
This UVC bulb is a 100% equivalent replacement for:
- Steril-Aire 21000500
- Steril-Aire GTS36VO
This bulb is available with a shatterproof coating that in case of damage keeps the lamp glass from falling into the unit where is installed. This results in an easy way to dispose of glass if it shatters. You can select this shatterproof option above.
Do I need shatterproof coating?
Although shatterproof coating can lower the intensity of the UV-C bulb by as much as 15%, it is recommended for applications in which it is crucial to avoid potential glass breakage at all costs. These applications include but are not limited to food processing and medical institutions. However, if glass breakage would be inconvenient but not catastrophic, skipping the costly shatterproof coating is quite alright. After all, we do not use shatterproof coating with our glasses and plates at home.
The UV lamp starts instantly and makes use of a coil filament that operates hot. The UV lamp is managed by the life of electrodes and works well for the following applications that require UVC intensity:
Common Applications for use:
- Air Conditioners
- Air Purifiers
- Beverage Services and Processing
- Food Services and Processing
- Heating & Cooling Filters
- HVAC Systems
- Surface Disinfection
Common Locations for use:
- Total Length: 35.98 inches (914mm)
- Arc Length: 32.48 inches (825mm)
- Lamp Quartz Diameter: 15mm
- Operating Current: 800mA
- Lamp Voltage: 105V
- Lamp Wattage: 84 Watts
- Output UVC Watts: 26 Watts
- Output uW/cm^2 @ 1m: 242
- Peak UV Output: 253.7nm
- Glass Type: Non Ozone
- Base Style: 4 pin cell base on a single end
- Base Material: Ceramic
- Rated Life: Up to 10,000 hours
*Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.org
*All germicidal UVC light bulbs listed are compatible brand UV products. We do not sell Steril-Aire brand UVC bulbs. All Steril-Aire brand names, trademarks, and logos are property of Steril-Aire.
Warning: Ultraviolet UV-C light is harmful to your eyes and skin. Remember to wear proper eye, face, and skin protection before exposing yourself to UV light.
Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
