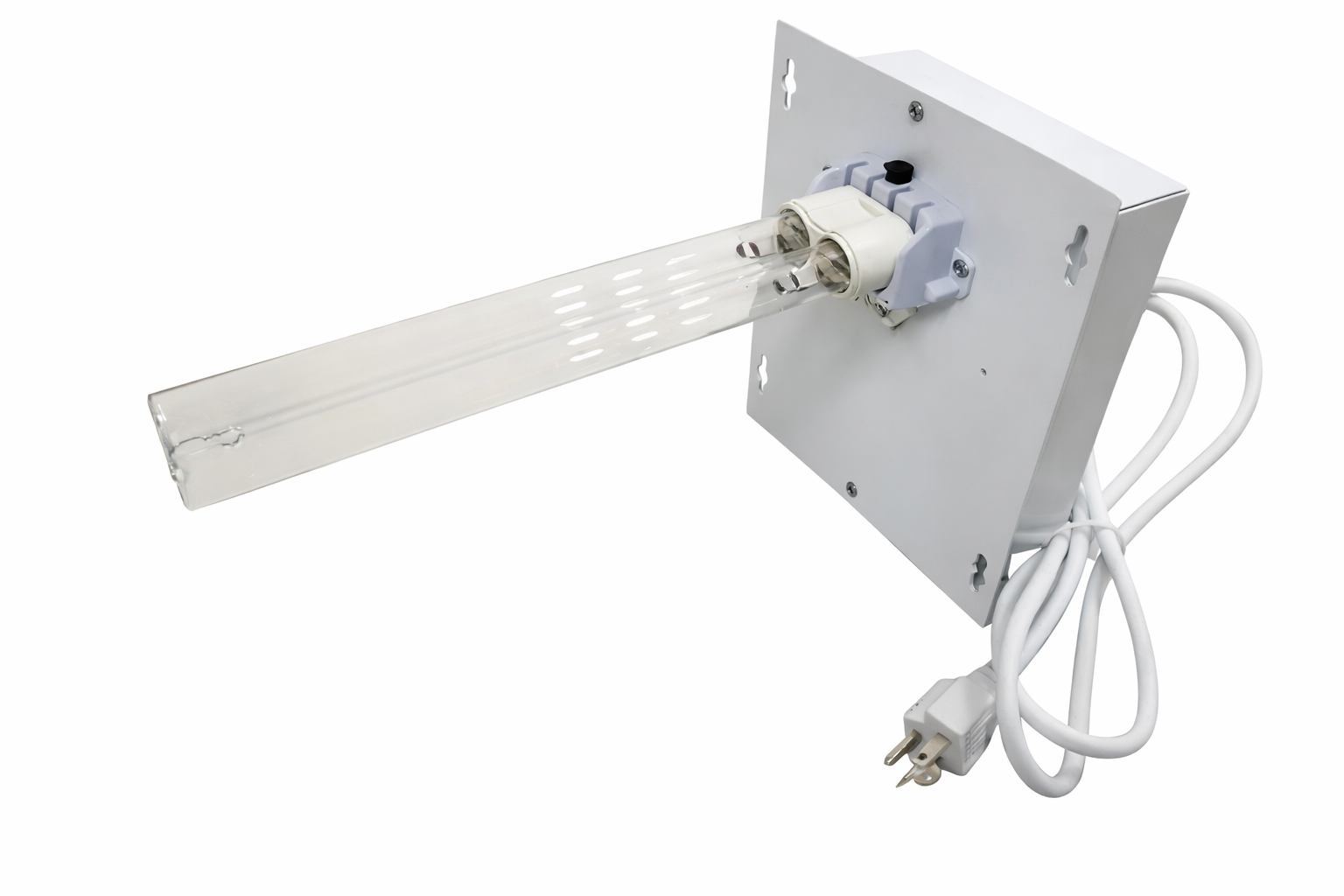

UV Germicidal HVAC Air Duct Cleaner for Air Disinfection

UV Germicidal HVAC Air Duct Cleaner for Air Disinfection

The UV Germicidal HVAC Air Duct Cleaner is designed to deliver effective ultraviolet air disinfection directly within your HVAC ductwork. Installed inside enclosed air ducts, this system helps reduce viruses (including SARS-CoV-2), bacteria, mold, and other airborne contaminants as air circulates through the system. Its enclosed design allows for safe, continuous operation while improving indoor air quality in residential and light commercial environments.

Features:

• High-Power UV-C Disinfection (36W or 60W): Available in two power configurations to match different airflow requirements and application sizes.
• Extended Coverage Area: Designed for spaces larger than 61 m², making it suitable for whole-home or larger HVAC systems.
• Enclosed Stainless Steel Housing: Durable 18 × 15 × 6 cm metal enclosure designed for secure installation inside duct systems.
• Secure Locking Socket: Lamp holder features a locking mechanism to ensure stable bulb positioning during operation.
• High-Efficiency Ballast: Ballast rated for over 30,000 hours of operation for long-term reliability.
• UV-C Output at 254 nm: Proven germicidal wavelength for effective microbial reduction.
• Easy Integration: Designed for installation within closed HVAC duct systems without interfering with airflow.
• Certified and Registered: CE certified and EPA registered for safety and compliance.

The advantages of UV-C light in sterilizing the air we breathe have been well established. As air circulates through HVAC duct systems, it carries bacteria, mold spores, viruses, and other contaminants. By placing a UV-C source directly inside the duct, this system continuously treats moving air, helping reduce airborne microbial load before it reaches occupied spaces.

Unlike coil-mounted systems, this air duct cleaner is designed to treat the airflow itself within enclosed ductwork. The sealed housing ensures safe operation while maximizing exposure time as air passes through the irradiation zone.

Once installed, this system helps improve indoor air quality, reduce odors, and minimize the spread of airborne contaminants. It also supports overall HVAC hygiene by reducing microbial buildup within the duct system.

Specifications:

• Power: 36W or 60W
• Application Area: >61 m²
• Bulb Length: 410mm (36W) / 420mm (60W)
• Ballast Life: Over 30,000 hours
• Bulb Lifetime: 9,000 hours
• Type: Germicidal Ultraviolet Lamp (254 nm)
• Housing Size: 18 × 15 × 6 cm (stainless steel)
• Weight: 3.74 lbs
• Socket Type: Locking lamp holder
• Certification: CE certified, EPA registered

Safety Information:

Never expose eyes or skin to UV-C light from any source. Direct exposure to UV-C radiation may cause serious eye injury or skin damage. This unit must only be operated inside a sealed HVAC duct system.

WARNING: For indoor use only. Install this unit only inside enclosed air ducts within a home or building. Do not install in exposed or ventilated openings, and do not use in HVAC systems located outside the structure.

If you have any questions about this or any other system, please do not hesitate to reach out to us at sales@cureuv.com or 1(800) 977-7292.
