4 Pin Stepped on a Single End - 80 Watt Germicidal Water Treatment Bulb

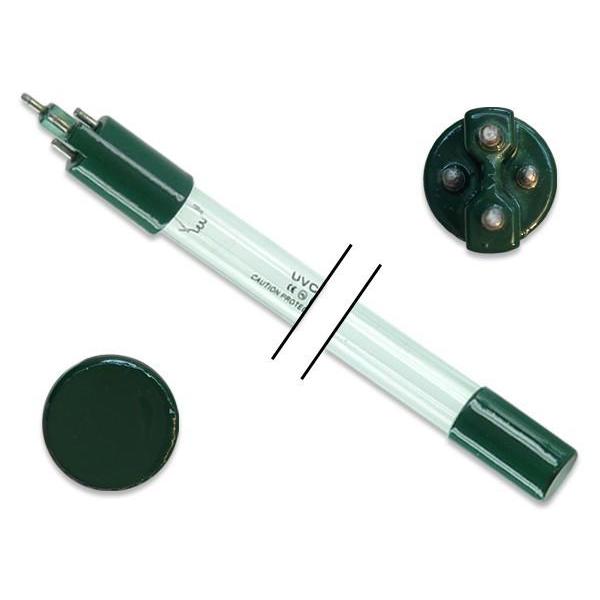

The Viqua SHF-140 Replacement UVC Light Bulb is a 4 pin stepped on a single end - 80 watt germicidal water treatment bulb. The 80 Watts bulb has lamp length of 33.07 inches and the lamp makes use of UV-C light to inactivate and kill bacteria. The high quality fixture has a high life span and low mercury dosage that meets the demands of the environment. The short UV wavelength of 254 nm emitted by the light bulb enables thorough disinfection and results in altering the genetics of the microorganism. This destroys the microorganisms rendering them harmless. It is necessary to schedule annual replacement of the bulb to ensure efficiency. Even after a year the UV bulb emits light but may have reduced its capacity to kill microorganisms.
- Well water
- Drinking water
- Surface water
- Municipal water
- Food service/processing
- Beverage service/processing
- Pools, Spas and Water Features
- Oil, Gas and Power
- Pulp, paper and wood
- Water bottlers
- Marine and more
- Total Length: 33.07 inches (840mm)
- Arc Length: 29.84 inches (758mm)
- Lamp Quartz Diameter: 15mm
- Operating Current: 800mA
- Lamp Voltage: 100V
- Lamp Wattage: 80 Watts
- Output UVC Watts: 28 Watts
- Output uW/cm^2 @ 1m: 260
- Peak UV Output: 253.7nm
- Glass Type: Non Ozone
- Base Style: 4 pin stepped on a single end
- Base Material: Ceramic
- Rated Life: Up to 10,000 hours
*Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.org
*All germicidal UVC light bulbs listed are compatible brand UV products. We do not sell Viqua brand UVC bulbs. All Viqua brand names, trademarks, and logos are property of Viqua.
*Warning: Ultraviolet UV-C light is harmful to your eyes and skin. Use proper safety gear.
Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
