Guaranteed 100% Compatible Replacement Ultraviolet (UV) Lamp - Mercury Wavelength - 42 Inch Arc Length - 48.125 Inch Total Length (end to end)

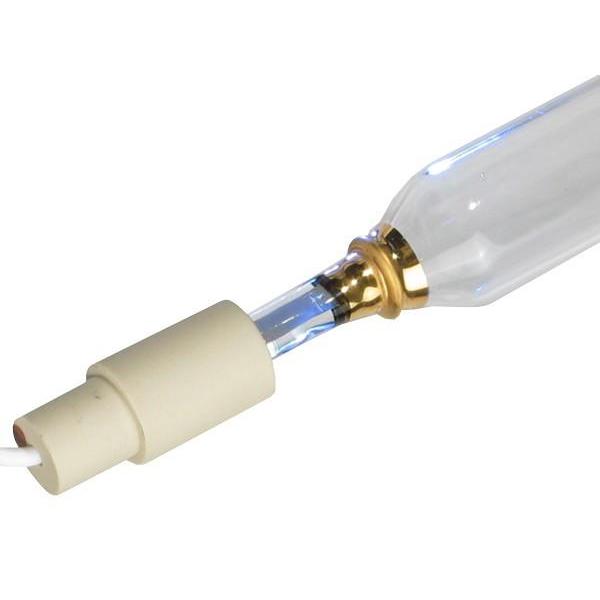

The Aradiant Part # Dl50139 UV Curing Lamp Bulb is a 100% compatible replacement UV lamp that has an arc length of 42 inches and a total length of 48.125 inches. The lamp bulb has a tube diameter of 1.035 inches and wattage of 300 WPI. Filled with mercury the lamp exceeds OEM standards of UV bulb performance. The lamp bulb from CureUV is completely compatible to the Aradiant UV systems.

The UV lamp bulb exceeds OEM standards of bulb performance. There is an increase in the demand of UV curing bulbs in the printing industry mainly to dry inks and coats. The UV curing lamp bulbs are the components necessary in the drying system. It also does not release volatile organic compounds in the air. The light bulbs generate a specific wavelength that assists in curing coating and inks. The quartz plate in lamp works as a filler between lamp and the system. This plate prevents dirt, grit and contaminants from building up on the lamp.

CureUV is your one-stop-shop for your UV replacement lamps, quartz plate, dichroic reflectors, quartz hot mirrors and more that is necessary for your inkjet printers. These systems are important for the digital printing industry in areas such as graphics, signs and display graphics, apparel, textile, labeling, folding carton, screen printing and more.

Technical Specifications:

Fill: Mercury
Quartz: Standard
Arc Length: 42 inches
Total Overall Length (TOL): 48.125 inches
Measured Arc Length: 42.75 inches
Tube Diameter: 1.035 inches
Wattage Per Inch: 300 WPI

Ultraviolet (UV) spectral output of a mercury vapor lamp

Ultraviolet (UV) Spectral Output - Mercury Lamp (PDF)

*Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.orgAradiant Part # DL50139 UV Curing Lamp Bulb

*All UV lamps listed are compatible brand UV products. We do not sell Aradiant brand UV lamps. All Aradiant brand names, trademarks and logos are property of Aradiant.

*Warning: Ultraviolet light is harmful to your eyes and skin. Use proper safety gear.

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.

Aradiant

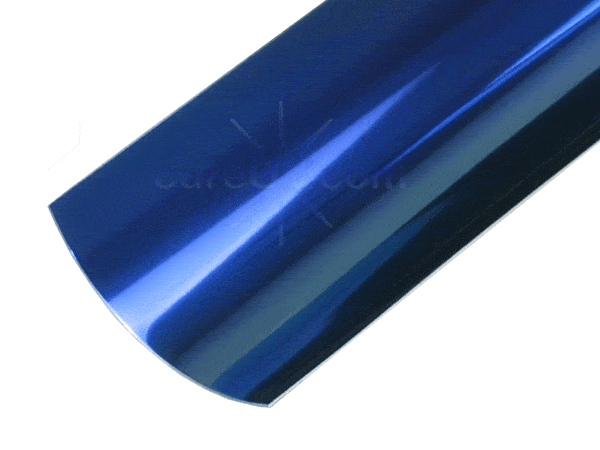

Dichroic Reflector Set for Aradiant Part # DL50139 UV Curing Lamp Bulb

Dichroic Reflector Set for Aradiant Part # SQP60 UV Curing Lamp Bulb

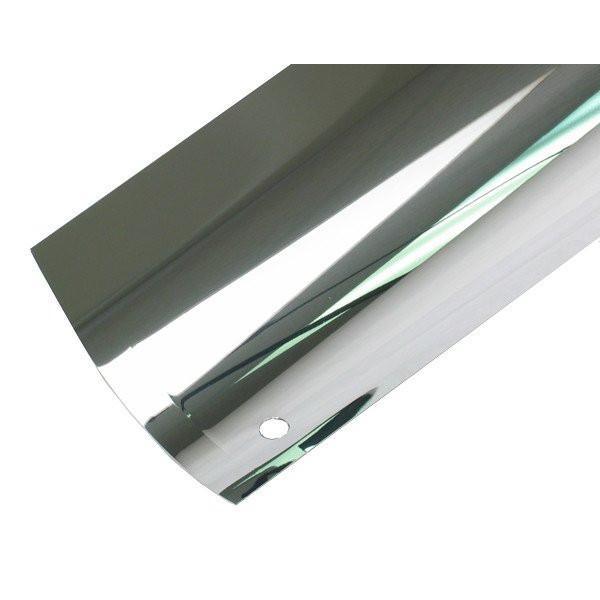

Aluminum Reflector Set for Aradiant Part # SQP60 UV Curing Lamp Bulb

Aluminum Reflector Set for Aradiant Part # DL50139 UV Curing Lamp Bulb

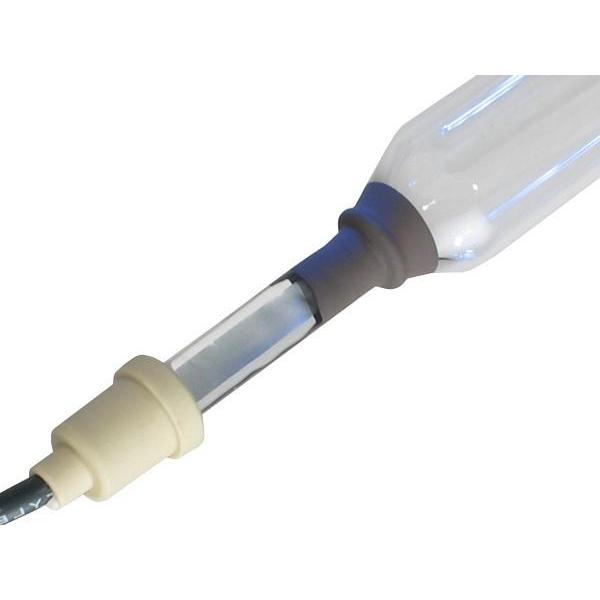

Aradiant Part # SQP60 UV Curing Lamp Bulb
