100% Equivalent to UVDI Model 07-6022

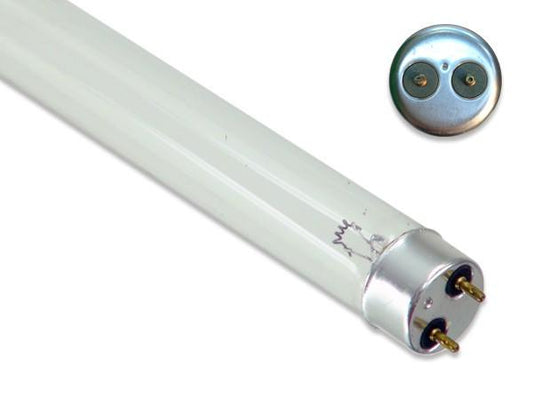

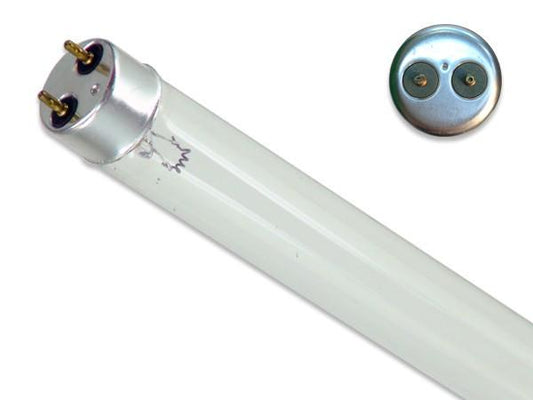

4 Pin on a Single End - 75 Watt Germicidal Water Treatment Bulb

The total length of the light bulb is 61.18" and it has an arc length of 57.87". The UVC light bulb has a rated life of 10,000 hours after which we highly recommend that you replace the bulb to maintain the efficiency of your UV system. After the designed period of time, the light bulb loses its germ killing ability.

The UVC light bulb works well for germicidal OEM water filters, UV purifiers, and UV sanitizers. There are extensive researches that state that UVC light technology is effective against bacteria, molds, viruses, yeast and protozoa. UV water purification provides a safe solution and this method of sterilization is basically a physical process. It does not alter the pH, chemistry or taste of water. The UVC purification method is both economic and environmental friendly and is a much better option to chemicals and their bi-products. It helps in providing a safe solution against microorganisms such as giardia and cryptosporidium, which are resistant to chlorine disinfection. The UV lamps emit wavelength energy of 253.7 nm and this energy reacts with the genetics of the microorganisms to make them harmless.

This bulb is available with a shatterproof coating that in case of damage keeps the lamp glass from falling into the unit where is installed. This results in an easy way to dispose of glass if it shatters. You can select this shatterproof option above.

Do I need shatterproof coating?

Although shatterproof coating can lower the intensity of the UV-C bulb by as much as 15%, it is recommended for applications in which it is crucial to avoid potential glass breakage at all costs. These applications include but are not limited to food processing and medical institutions. However, if glass breakage would be inconvenient but not catastrophic, skipping the costly shatterproof coating is quite alright. After all, we do not use shatterproof coating with our glasses and plates at home.

Technical Specifications:

Total Length: 61.18 inches (1554mm)
Arc Length: 57.87 inches (1470mm)
Lamp Quartz Diameter: 15mm
Operating Current: 450mA
Lamp Voltage: 170V
Lamp Wattage: 75 Watts
Peak UV Output: 253.7nm
Glass Type: Non Ozone
Base Style: 4 pin on a single end
Base Material: Ceramic
Rated Life: Up to 10,000 hours

Common Applications

Aquaculture
Beverage Services and Processing
Drinking Water
Food Services and Processing
Municipal Wastewater
Pools, Spas, and Water Features
Well Water

*Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.org

*Warning: Ultraviolet UV-C light is harmful to your eyes and skin. Use proper safety gear.

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
