The 100x150mm UV LED Curing Conveyor System is a High-Intensity Curing System available in an array of LED wavelengths that consist of 365nm, 385nm, 395nm & 405nm. Designed to effectively cure most UV Curable materials while protecting their composition thanks to its cool light system.


  • LED array ensures you find the ideal wavelength for the material at hand
  • No preheating time needed
  • The integrated air cooling system ensures your conveyor works as efficiently as possible, protecting the LED system and extending its useful life
  • UV LED cold light source ensures your material's composition won’t be harmed during curing process
  • Extra durable conveyor belt speed is completely adjustable
  • User friendly and quick to use
  • Produces no ozone
  • Panel display in real-time with touch operation
  • Monitoring of the irradiation head and temperature in real time
  • Adjustable intensity helps protecting sensitive materials
  • Infrared sensor control with work mode selection ensures your device adjusts to the job at hand

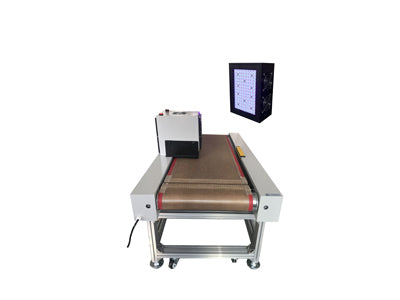

This UV conformal coating curing design consists of a control system, High-Intensity UV LED Irradiation head and a conveyor belt. The UV LED Irradiation Head comes in a variety of wavelengths. The incorporated forced air-cooling dissipates heat, making your system last longer giving it a more cost-effective useful life. The effective curing area of this system is 100x150mm.

This UV LED Conveyor supports external signal input and triggering which makes it ideal for automatic or semi-automatic production lines.

Technical Specifications:

Available Wavelengths: 365nm, 385nm, 395nm, 405nm


    • Electric power: 450W
    • Input Voltage: 220VAC 50Hz
    • Optic Power: 1300mw/cm2
    • Recommended height of irradiation: 10-100mm (Adjustable)
    • Dimensions: L171*W115*H76mm
    • Curing area: 100x150mm
    • Cooling method: air cooling
    • Dimension: L1500mm*W669mm*H1200mm
    • Useful Life: >20,000 H
    • Conveyor Speed: 1-10m/min (Adjustable)
    • Machine Dimensions: L1500*W793*H1030mm

        *Technical Specifications available at the moment apply to the specified wavelengths.

            We can customize these systems to fit your needs exactly. Whether you need more power, a wider conveyor, or varying speeds, we would love to help you with your UV curing. Please reach out to us at sales@cureuv.com or between 8:00 a.m. and 4:30 p.m. EST at 1(800) 977-7292.
