200mm Desktop UV Curing Conveyor with 2KW Lamp Power
200mm Desktop UV Curing Conveyor with 2KW Lamp Power 200mm Desktop UV Curing Conveyor with 2KW Lamp Power 200mm Desktop UV Curing Conveyor with 2KW Lamp Power

200mm Desktop UV Curing Conveyor with 2KW Lamp Power
Free Gift

SKU:

Financing Available for all UV Equipment
$14,500.00

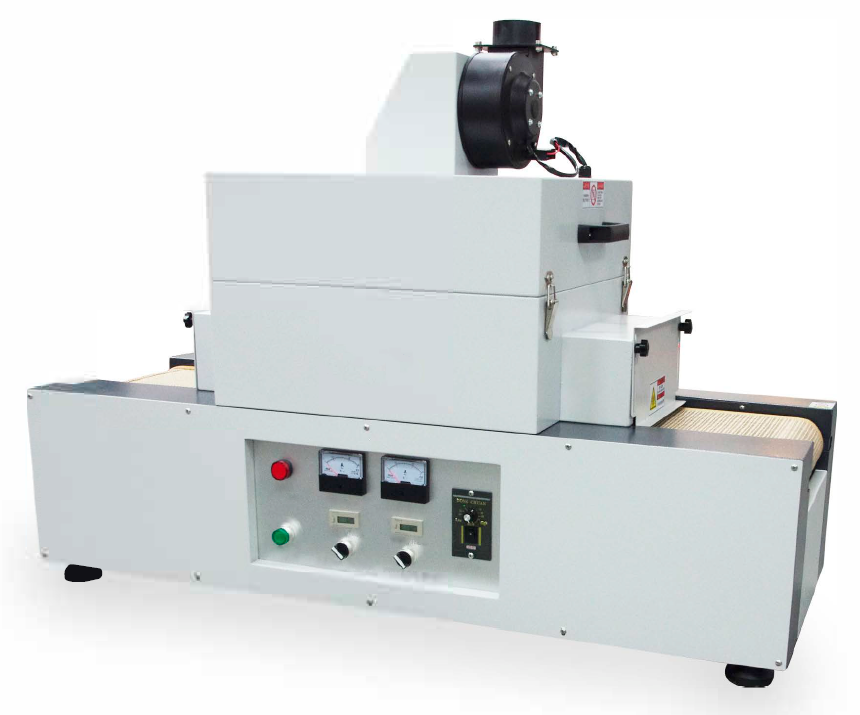

The 200mm Desktop UV Curing Conveyor System is a High-Intensity Curing System designed for benchtops and temporal working stations, equipped with two mercury bulbs.

Features:

  • Its reduced size makes it easy to transport and locate, ideal for desktops and temporary working stations/areas.
  • Mercury Lamp.
  • UV Lamps available ensure your material's composition won’t be harmed during curing process.
  • Extra durable Teflon mesh conveyor belt.
  • Belt speed is completely adjustable.
  • User-friendly and easy to use.

The design of this 200mm desktop UV curing system was created for rotary and temporary workstations, as its design allows for easy installation by the user on desktops and benchtops. Its high-resistance materials, such as Teflon, make your system relocatable and continue to function, ensuring proper operation throughout its lifetime. The adjustable irradiation distance and the transport speed make the working operation ideal for the work material.

Technical Specifications:

  • Effective Curing Area: 200mm (7.87 In)
  • Wavelength: 365nm
  • Machine Power: 2.2KW
  • Lamp Power: 1KW
  • Lamp Type: Mercury
  • Lamp Quantity: 2
  • Irradiation Mode: Downwards
  • Irradiation Distance: Adjustable 50-200mm (1.9 - 7.87 In)
  • Dimensions: 1200 * 450 * 870 mm (47.2 * 17.7 * 34.2 In)
  • Mesh Belt Width: 200mm (7.87 In)
  • Mesh Belt Material: Teflon
  • Conveying Speed: 0.5-8m/min (19.6 - 315 In)
  • Cooling Method: Forced Air-Cooling
  • Power Regulation: Full Light
  • Input Power: AC 110V 60Hz

 Irradiation Distance: 100mm

 Conveying Speed: 1m/min
Conveying Speed: 8m/min
mJ/CM2 mW/CM2
UVA 1468 186
UVB 1560 200
UVC 374 45
UVV 1174 135
mJ/CM2 mW/CM2
UVA 169 161
UVB 177 172
UVC 42 38
UVV 136 119



      We can customize these systems to fit your needs exactly. Whether you need more power, a wider conveyor, or varying speeds, we would love to help you with your UV curing. Please contact us at sales@cureuv.com or between 8:00 a.m. and 4:30 p.m. EST at 1(800) 977-7292.
