Aetek Part # 0701220 UV Curing Lamp Bulb

Aetek Part # 0701220 UV Curing Lamp Bulb
Free Gift

Brand: Aetek

SKU: 192890

UV Bulb Price Match Guarantee
$249.99

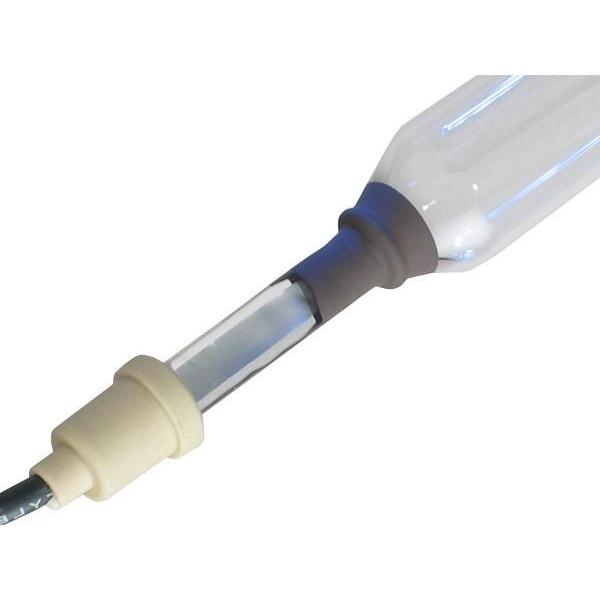

Guaranteed 100% Compatible Replacement Ultraviolet (UV) Lamp - Mercury Wavelength - 24 Inch Arc Length - 27.625 Inch Total Length (end to end)

The Aetek 07-01220 Replacement Lamp is a high quality curing lamp that comes with a high UV output and longer service life. The replacement lamp has matched HG spectral output that ensures shorter curing time and better curing results. The high performance lamp is 700 mm long and features a factory warranty of 600 hours.

UV curing is a process where high-intensity UV rays helps in instantly drying or curing coatings or inks in the printer. With the usage of light instead of heat, the ink hardens and dries instantly. Curing inks using UV rays is widely used as an alternative to traditional solvent-based products. Conventional drying methods (the ones that use heat to dry) works only when the solvents are evaporated, which meant that there was always a risk of environmental pollutants. In the UV curing method, however, there no process of evaporation and no pollution created. The result is greater productivity, higher quality printing and lower production costs.

Technical Specifications:

  • Spectrum: HG
  • Length: 700 mm
  • Arc Length: 609 mm
  • End Cap: Ceramic C3
  • Terminal: Ring
  • Lifetime: 600 hours

    Ultraviolet (UV) spectral output of a mercury vapor lamp

    Ultraviolet (UV) Spectral Output - Mercury Lamp (PDF)

    *Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.orgAetek Part # 0701220 UV Curing Lamp Bulb

    *All UV lamps listed are compatible brand UV products. We do not sell Aetek brand UV lamps. All Aetek brand names, trademarks and logos are property of Aetek.

    *Warning: Ultraviolet light is harmful to your eyes and skin. Use proper safety gear.

    Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
