Aetek Part # 0701172 UV Curing Lamp Bulb
Aetek Part # 0701172 UV Curing Lamp Bulb Aetek Part # 0701172 UV Curing Lamp Bulb Aetek Part # 0701172 UV Curing Lamp Bulb

Aetek Part # 0701172 UV Curing Lamp Bulb
Free Gift

Brand: Aetek

SKU: 191267

UV Bulb Price Match Guarantee
$199.99

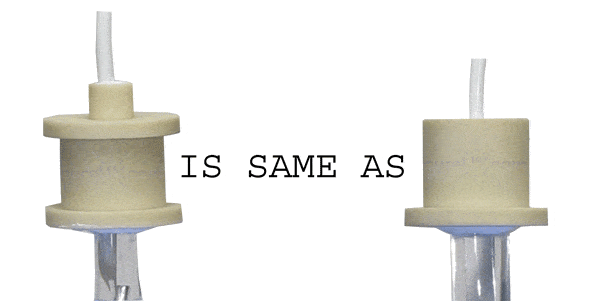

Guaranteed 100% Compatible Replacement Ultraviolet (UV) Lamp - Mercury Wavelength - 9 Inch Arc Length - 13.75 Inch Total Length (end to end)

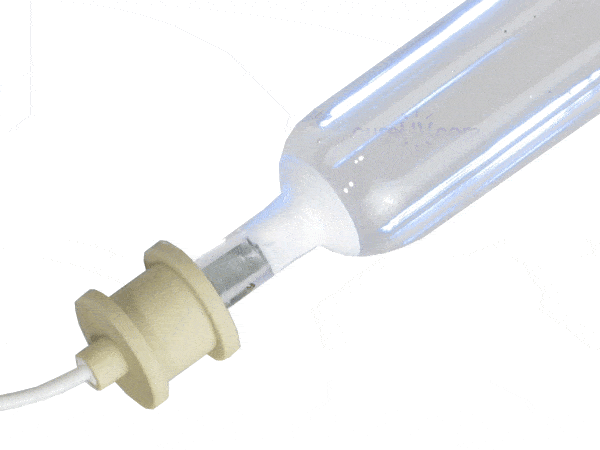

The Aetek Part # 0701172 UV Curing Lamp Bulb is a 100% guarantee UV replacement bulb that has an arc length of 9 inches and a total length of 13.75 inches. Filled with mercury, the UV replacement lamp is completely compatible to the Aetek UV systems.

The lamp bulb is compatible to the following part numbers:

  • 0701172
  • 0922C4
  • 2100B
  • H09C3F2

The process of UV curing is a method where high-intensity UV rays helps in immediately drying or curing coatings or inks in the printer. The process of UV curing involves light instead of heat. This enables the ink to dry and harden in an instant. UV curing is a better option to traditional curing uses heat as the traditional method uses solvent and contains a risk of environmental pollution. The result of UV curing is higher productivity, lower production costs and better printing quality.

Technical Specifications:

  • Fill: Mercury
  • Quartz: Standard
  • Arc Length: 9 inches
  • Total Overall Length: 13.75 inches

Spectral Output of a Mercury UV Lamp

Spectral Output of a Mercury UV Lamp (PDF)

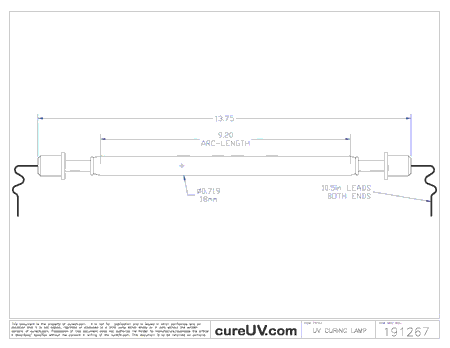

Aetek compatible UV lamp - OEM part number 0701172 - Drawing (PDF)

Aetek Compatible UV Curing Lamp - OEM Part Number 0701172 drawing

*All lamps listed are compatible brand UV products. We do not sell Aetek brand lamps. All Aetek brand names, trademarks and logos are property of Aetek.

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
