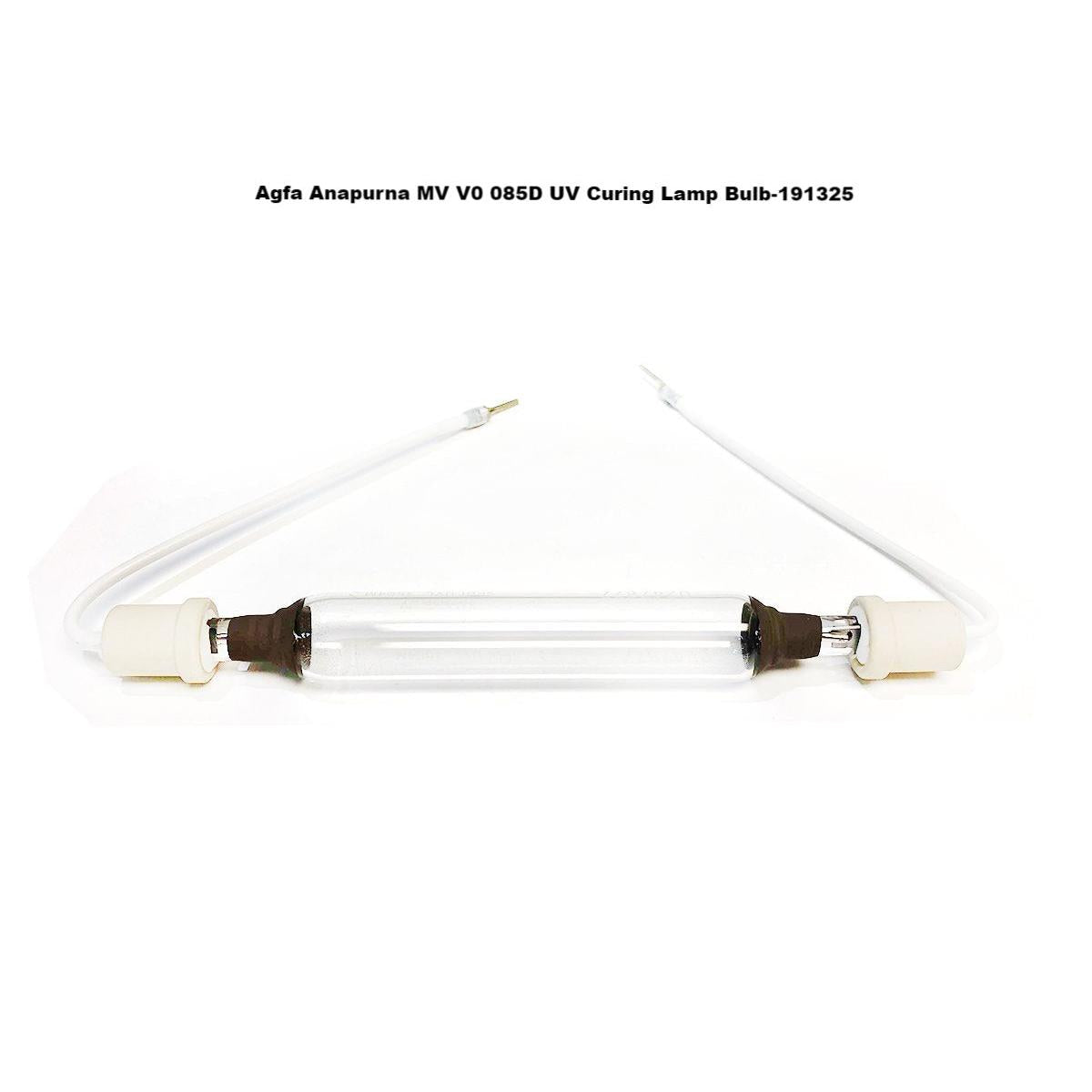

Agfa Anapurna MV V0 085D UV Curing Lamp Bulb

Agfa Anapurna MV V0 085D UV Curing Lamp Bulb

Regular price $206.99 USD
Regular price $229.99 USD Sale price $206.99 USD
Sale Sold out

SKU:191325

Title

Guaranteed 100% Compatible Replacement Ultraviolet (UV) Lamp - Iron Wavelength - 4 Inch Arc Length - 6.5 Inch Total Length (end to end)

Our Agfa Anapurna MV V0 085d UV Curing Lamp Bulb is a compatible replacement Ultraviolet (UV) lamp that is a generic replacement for the following machine model:

  • Agfa Anapurna UV Flatbed Printer Model MV

It is also a compatible replacement for the following part numbers:

  • 500175
  • 085D
  • V0 085D
  • Vzero 085D

System Application

  • Agfa - Anapurna M
  • Afa - Apurna M4f
  • Agfa - Anapurna Mv


  • BIGPRINTER - UV 2133



  • Dilli - Neo Titan UVT-2506WS
  • Dilli - Neo Titan UVT-1606S
  • Dilli - Neo Titan UVT-1606W


    With an arc length of 4" and a total length of 6.5", the replacement light bulb undergoes stringent quality control measures to give you the best output always. Using CureUV’s replacement light bulb, you can be sure of improved gloss, better chemical resistance, scratch and abrasion resistance, adhesion and bond strength.

    UV curing is a process where high-intensity UV rays helps in instantly drying or curing coatings or inks in the printer. With the usage of light instead of heat, the ink hardens and dries instantly. Curing inks using UV rays is widely used as an alternative to traditional solvent-based products.

    Conventional drying methods (the ones that use heat to dry) works only when the solvents are evaporated, which meant that there was always a risk of environmental pollutants. In the UV curing method, however, there no process of evaporation and no pollution created. The result is greater productivity, higher quality printing and lower production costs.

    Technical Specifications:

    • Fill: Iron Metal-Halide
    • Quartz: Standard
    • Arc Length: 4 inches
    • Overall Length: 6.5 inches
    • Tube Diameter: 18mm
    • Wattage: 1000W

    Ultraviolet (UV) spectral output of an iron doped lamp

    Ultraviolet (UV) Spectral Output - Iron Metal-Halide Lamp (PDF)

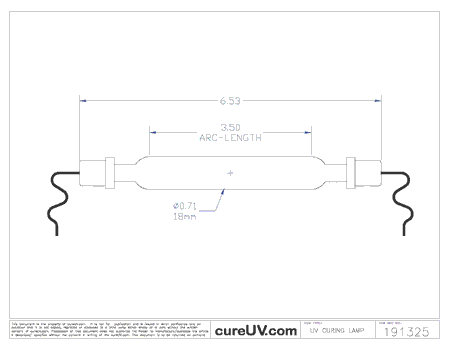

    Agfa Anapurna MV UV Lamp - Drawing (PDF)

    Agfa Anapurna MV digital UV lamp drawing.

    *Fe - Lamp contains iron - manage in accordance with your local disposal laws by visiting: www.lamprecycle.org

    *All UV lamps listed are compatible brand UV products. We do not sell Agfa brand UV lamps. All Agfa brand names, trademarks and logos are property of Agfa.

    *Warning: Ultraviolet light is harmful to your eyes and skin. Use proper safety gear.

    Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
