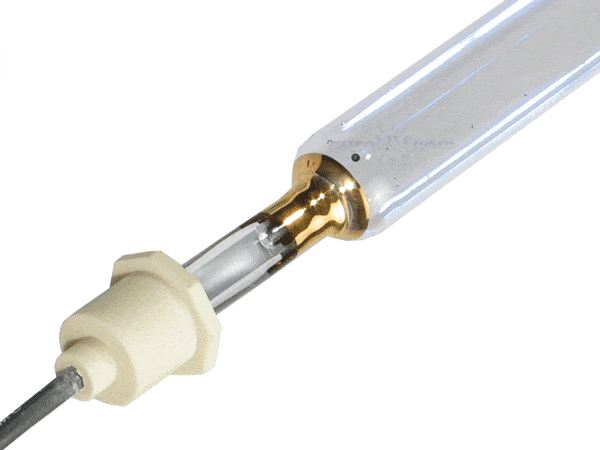

American Ultraviolet Part # A94182MCB UV Curing Lamp Bulb
American Ultraviolet Part # A94182MCB UV Curing Lamp Bulb American Ultraviolet Part # A94182MCB UV Curing Lamp Bulb

American Ultraviolet Part # A94182MCB UV Curing Lamp Bulb
Free Gift

$239.99

Guaranteed 100% Compatible Replacement Ultraviolet (UV) Lamp - Mercury Wavelength - 18 Inch Arc Length - 23.50 Inch Total Length (end to end)

The American Ultraviolet Part # A94182MCB UV Curing Lamp Bulb has an arc length of 18 inches and an overall length of 23.50 inches. The lamp is filled with mercury and has an output power of 400 WPI.

The replacement bulb exceeds OEM standards of bulb performance. It involves a process where high intensity UV rays dry or cure inks and coatings in printers. The method of UV curing also uses light instead of heat, which enables the ink to dry and harden instantly. The UV curing method is fast gaining popularity as against alternative traditional solvent-based products. With solvent-based products the risk of environmental pollution is greater as the solvent evaporates. This results in greater printing quality, better productivity and lower production costs.

Technical Specifications:

  • Output Power: 400 WPI
  • Fill: Mercury
  • Quartz: Standard
  • Arc Length: 18 Inches
  • Overall Length: 23.50 Inches

UV Spectral Output of a Mercury Lamp

UV Spectral Output of a Mercury Lamp (PDF)

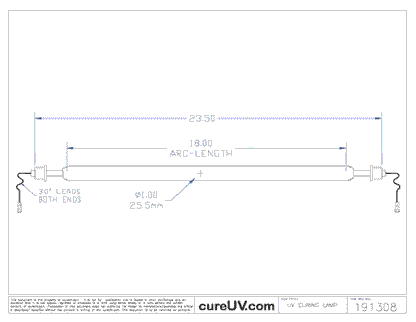

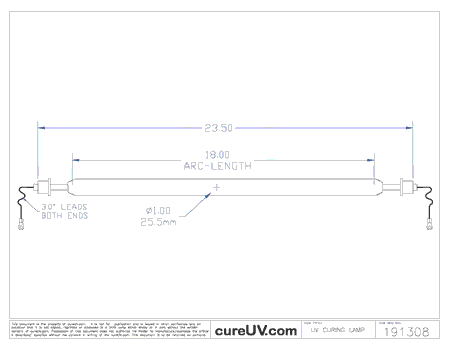

American Ultraviolet compatible UV lamp - OEM part number A94182MCB - Drawing (PDF)

American Ultraviolet Compatible UV Curing Lamp - OEM Part Number A94182MCB drawing

*All lamps listed are compatible brand UV products. We do not sell American Ultraviolet brand lamps. All American Ultraviolet brand names, trademarks and logos are property of American Ultraviolet.

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
