Aqua Azul L-1-804 Replacement UVC Light Bulb
Aqua Azul L-1-804 Replacement UVC Light Bulb Aqua Azul L-1-804 Replacement UVC Light Bulb Aqua Azul L-1-804 Replacement UVC Light Bulb Aqua Azul L-1-804 Replacement UVC Light Bulb Aqua Azul L-1-804 Replacement UVC Light Bulb

Aqua Azul L-1-804 Replacement UVC Light Bulb
Free Gift

Brand: Aqua Azul

SKU: 194089

UV Bulb Price Match Guarantee
$58.00

4 Pin on a Single End - 75 Watt Germicidal Water Treatment Bulb

Replace with CureUV’s Aqua Azul L-1-804 Replacement UVC Light Bulb and breathe a sigh of relief. The light bulb uses the UV-C technology that enables restricting the growth of harmful microorganisms in water. The 99% effective water treatment is proven to be effective against various kinds of bacteria, moulds and virus that can cause harm.

Researchers believe that the peak UV output of 253.7nm reacts with the genetics of the microorganisms and renders them incapable of reproducing. Since the light bulbs are intended to destroy microorganisms it is recommended that you replace them annually. This replacement UV lamp can last for approximately 10,000 working hours after which the UV output reduces even though the UV lamp emits bright light. The Aqua Azul L-1-804 Replacement UVC Light Bulb is compatible with

  • Germicidal OEM water disinfection filters
  • UV sterilizers
  • Ultraviolet water purifiers

Technical Specifications

  • Total Length: 61.18 inches (1554mm)
  • Arc Length: 57.87 inches (1470mm)
  • Lamp Quartz Diameter: 15mm
  • Operating Current: 450mA
  • Lamp Voltage: 170V
  • Lamp Wattage: 75 Watts
  • Peak UV Output: 253.7nm
  • Glass Type: Non Ozone
  • Base Style: 4 pin on a single end
  • Base Material: Ceramic
  • Rated Life: Up to 10,000 hours

Common Applications

  • Aquaculture
  • Beverage Services and Processing
  • Drinking Water
  • Food Services and Processing
  • Municipal Wastewater
  • Pools, Spas, and Water Features
  • Well Water

Common Locations for use:

  • Factories
  • Farms
  • Homes
  • Hospitals
  • Hotels
  • Laboratories
  • Ships

                                 Spectral Output of Germicidal UVC Light Bulbs

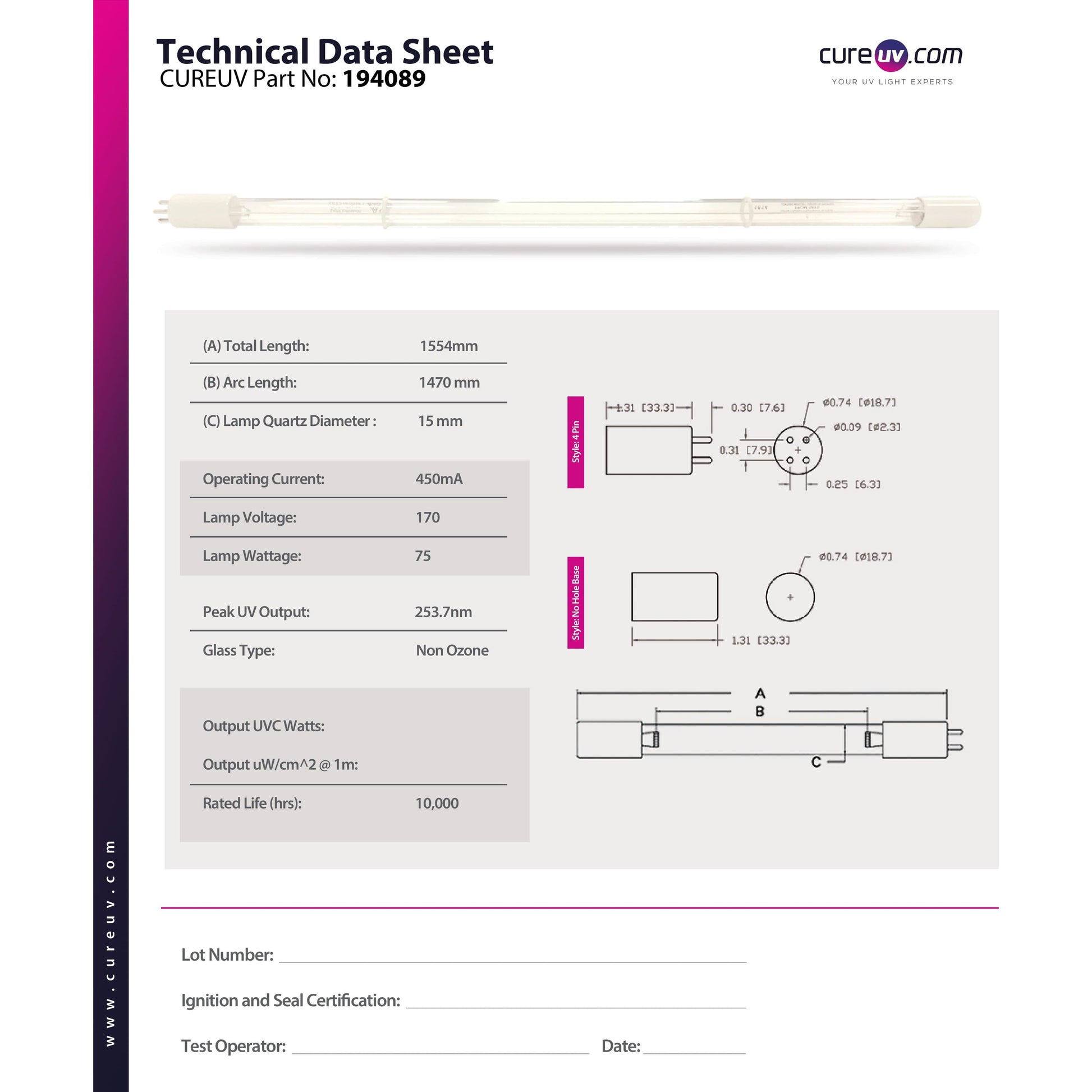

Drawing of Replacement UVC Bulb Item # 194089 (PDF)

Spectral Output of Germicidal UVC Light Bulbs (PDF)

Drawing of Aqua Azul L-1-804 UVC Bulb - item # 194089

*Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.org

*All germicidal UVC light bulbs listed are compatible brand UV products. We do not sell Aqua Azul brand UVC bulbs. All Aqua Azul brand names, trademarks, and logos are property of Aqua Azul.

Warning: Ultraviolet UV-C light is harmful to your eyes and skin. Use proper safety gear.

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
