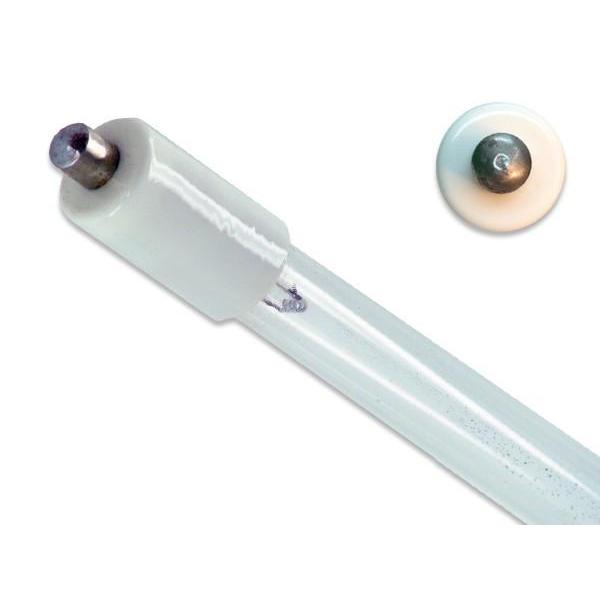

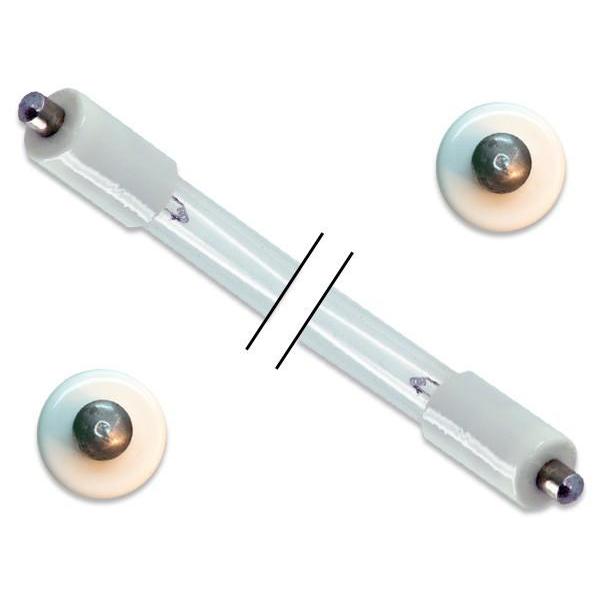

Aqua Treatment Service ATS1-814 Replacement UVC Light Bulb
Aqua Treatment Service ATS1-814 Replacement UVC Light Bulb Aqua Treatment Service ATS1-814 Replacement UVC Light Bulb Aqua Treatment Service ATS1-814 Replacement UVC Light Bulb Aqua Treatment Service ATS1-814 Replacement UVC Light Bulb Aqua Treatment Service ATS1-814 Replacement UVC Light Bulb

Aqua Treatment Service ATS1-814 Replacement UVC Light Bulb
Free Gift

$44.99

Single Pin Double Ended - 32 Watt Germicidal Water Treatment Bulb

Our Aqua Treatment Service ATS1-814 Replacement UVC Light Bulb is a 27.17 inch light bulb that is compatible replacement for germicidal UVC lamp model:

  • ATS1-814

The 32 Watts bulb is completely compatible with germicidal OEM water disinfection filters, ultraviolet purifiers, and UV sterilizers. The UVC light technology is believed to sterilize and kill over 99.99% germs in the water and is most effective against bacteria, molds, virus, protozoa and yeast. The replacement light bulb has a life span of 10,000 hours. After this the germicidal UV output reduces even when the lamp continues to emit light.

Researchers are of the opinion that UV water purification provides a safe solution as this method of sterilization is a purely physical process and does not alter the pH, chemistry or taste of water. This method is both economic and environmental friendly and is a much better option to chemicals and their bi-products. People are of the opinion that this system provides a safe solution against microorganisms such as giardia and cryptosporidium, that are resistant to chlorine disinfection. The UV lamps emit wavelength energy of 253.7 nm and this energy reacts with the genetics of the microorganisms. Keep water safe from contamination with Aqua Treatment Service ATS1-814 Replacement UVC Light Bulb.

Technical Specification:

  • Total Length: 27.17 inches (690mm)
  • Arc Length: 23.62 inches (600mm)
  • Lamp Quartz Diameter: 15mm
  • Operating Current: 425mA
  • Lamp Wattage: 32 Watts
  • Output UVC Watts: 11 Watts
  • Output uW/cm^2 @ 1m: 95
  • Peak UV Output: 253.7nm
  • Glass Type: Non Ozone
  • Base Style: Single pin double ended
  • Base Material: Ceramic
  • Rated Life: Up to 10,000 hours

Common Applications for use:

  • Aquaculture
  • Beverage Services and Processing
  • Drinking Water
  • Food Services and Processing
  • Municipal Wastewater
  • Pools, Spas, and Water Features
  • Well Water

Common Locations for use:

  • Factories
  • Farms
  • Homes
  • Hospitals
  • Hotels
  • Laboratories
  • Ships
Spectral Output of Germicidal UVC Light Bulbs

This UVC bulb is a compatible replacement for germicidal UV-C lamp part number:

ATS1-814 Drawing of Aqua Treatment Service ATS1-814 UVC Bulb - item # 192256



Drawing of Replacement UVC Bulb Item # 192256 (PDF)

UVC Light Disinfection Dosage Chart (PDF)

Spectral Output of Germicidal UVC Light Bulbs (PDF)

This replacement germicidal bulb is used for ultraviolet water purification and is well-suited for the applications that require UV-C intensity.

    *Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.org

    *All germicidal UVC light bulbs listed are compatible brand UV products. We do not sell Aqua Treatment Service brand UVC bulbs. All Aqua Treatment Service brand names, trademarks, and logos are property of Aqua Treatment Service.

    *Warning: Ultraviolet UV-C light is harmful to your eyes and skin. Use proper safety gear.

    Aqua Treatment Service Part Number:

    • ATS1-814

    Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
