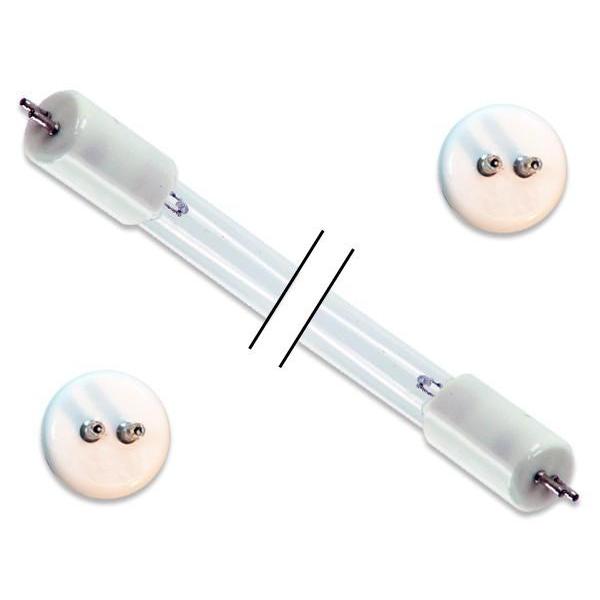

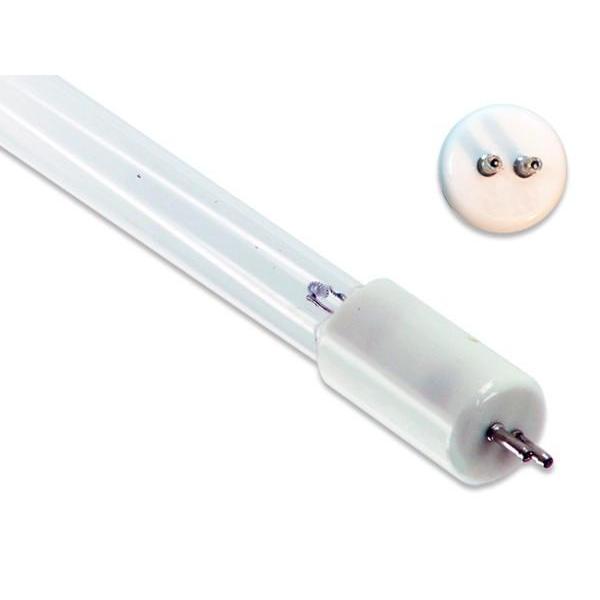

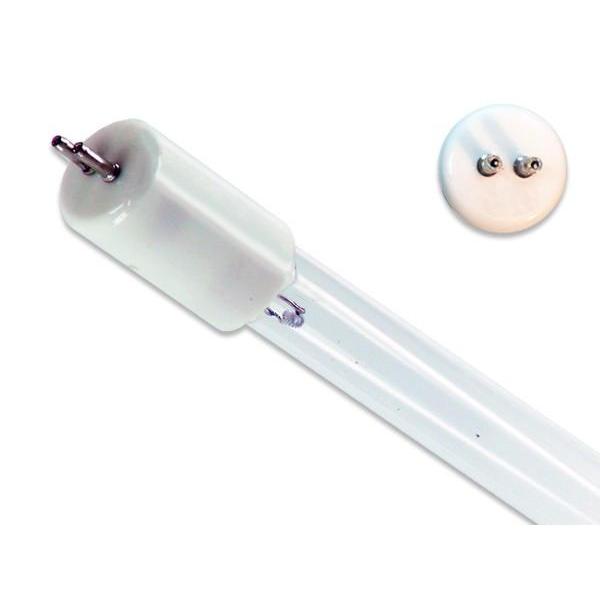

Aqua Treatment Service ATS2-436 Replacement UVC Light Bulb
Aqua Treatment Service ATS2-436 Replacement UVC Light Bulb
SKU:191731
In stock
Miniature 2 Pin Double Ended - 24 Watt Germicidal Water Treatment Bulb
CureUV’s Aqua Treatment Service ATS2-436 Replacement UVC Light Bulb is a germicidal UV-C lamp that is compatible with germicidal OEM water, air disinfection filters, UV purifiers and UV sanitizers. This light bulb is compatible with
- ATS2-436
Water treatment using the UVC method requires no handling of chemicals and it does not need any specialized storage. The UVC treatment of water does not cause change in odor, taste, chemistry and pH of water. This method is a preferred method of water treatment from chemicals and their byproducts. People believe that UV light at the wavelength of 253.7 nm is designed to kill microorganisms as harmful as E.coli, giardia and cryptosporidium that can cause harm. Passing UV rays through water alters the genetic composition of the microorganisms and renders them harmless.
It is said that UV-C bulb must be replaced annually to ensure better efficiency. These high-quality lamps last 10,000 working hours after which it is advisable to replace them. The total length of the UVC light bulb is 17.17 inches and it has a peak output of 253.7 nm that help in destroy microorganisms such as spores, virus, bacteria and other pathogens. Ensure utmost safety when you replace with the Aqua Treatment Service ATS2-436 Replacement UVC Light Bulb.
Technical Specifications:
- Total Length: 17.17 inches (436mm)
- Arc Length: 14.17 inches (360mm)
- Lamp Quartz Diameter: 15mm
- Lamp Voltage: 67V
- Lamp Wattage: 24 Watts
- Peak UV Output: 253.7nm
- Glass Type: Non Ozone
- Base Style: Miniature Bi-Pin (2 pin) double ended
- Base Material: Ceramic
- Rated Life: Up to 10,000 hours
Common Applications
- Aquaculture
- Beverage Services and Processing
- Drinking Water
- Food Services and Processing
- Municipal Wastewater
- Pools, Spas, and Water Features
- Well Water
Common Locations for use:
- Factories
- Farms
- Homes
- Hospitals
- Hotels
- Laboratories
- Ships
This UVC bulb is a compatible replacement for germicidal UV-C lamp part number:

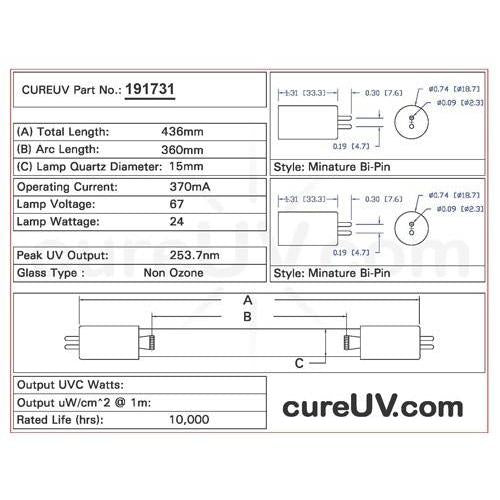

ATS2-436Drawing of Replacement UVC Bulb Item # 191731 (PDF)
UVC Light Disinfection Dosage Chart (PDF)
Spectral Output of Germicidal UVC Light Bulbs (PDF)*Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.org
*All germicidal UVC light bulbs listed are compatible brand UV products. We do not sell Aqua Treatment Service brand UVC bulbs. All Aqua Treatment Service brand names, trademarks, and logos are property of Aqua Treatment Service.
*Warning: Ultraviolet UV-C light is harmful to your eyes and skin. Use proper safety gear.
Aqua Treatment Service Part Number:
- ATS2-436
