Aquafine 3098 Replacement UVC Light Bulb
Aquafine 3098 Replacement UVC Light Bulb Aquafine 3098 Replacement UVC Light Bulb Aquafine 3098 Replacement UVC Light Bulb Aquafine 3098 Replacement UVC Light Bulb Aquafine 3098 Replacement UVC Light Bulb

Aquafine 3098 Replacement UVC Light Bulb
Free Gift

Brand: Aquafine

SKU: 191643

UV Bulb Price Match Guarantee
$45.00

Single Pin Double Ended - 75 Watt Germicidal Water Treatment Bulb

Our Aquafine 3098 Replacement UVC Light Bulb is a single pin double ended light bulb that has a total length of 61.22" and an arc length of 58.66". The lamp is rated to have a life of 10,000 hours after which we highly recommend replacing the light bulb. The UVC light bulb has a peak output of 253.7 nm that effectively destroys the genetics of the microorganisms rendering them harmless. Pathogens such as giardia and cryptosporidium can be effectively destroyed with this method of purification. These cost effective purifiers and their lamps do not make use of chemicals and their by-products. This method of water purification does not alter the pH, taste or chemistry of water. Experts are of the opinion that it is necessary to replace the Aquafine 3098 Replacement UVC Light Bulb annually for better efficiency and its ability to destroy waterborne microorganisms.

The light bulb is designed to be used with the following UV-C system models:

  • CSL-10R/60
  • CSL-12R/60
  • CSL-60
  • RBE-16
  • RBE-60

Technical Specifications:

  • Total Length: 61.22 inches (1555mm)
  • Arc Length: 58.66 inches (1490mm)
  • Lamp Quartz Diameter: 15mm
  • Operating Current: 450mA
  • Lamp Voltage: 175V
  • Lamp Wattage: 75 Watts
  • Output UVC Watts: 30 Watts
  • Output uW/cm^2 @ 1m: 260
  • Peak UV Output: 253.7nm
  • Glass Type: Non Ozone
  • Base Style: Single pin double ended
  • Base Material: Ceramic
  • Rated Life: Up to 10,000 hours

Common Applications

  • Aquaculture
  • Beverage Services and Processing
  • Drinking Water
  • Food Services and Processing
  • Municipal Wastewater
  • Pools, Spas, and Water Features
  • Well Water

Common Locations for use:

  • Factories
  • Farms
  • Homes
  • Hospitals
  • Hotels
  • Laboratories
  • Ships

Spectral Output of Germicidal UVC Light Bulbs

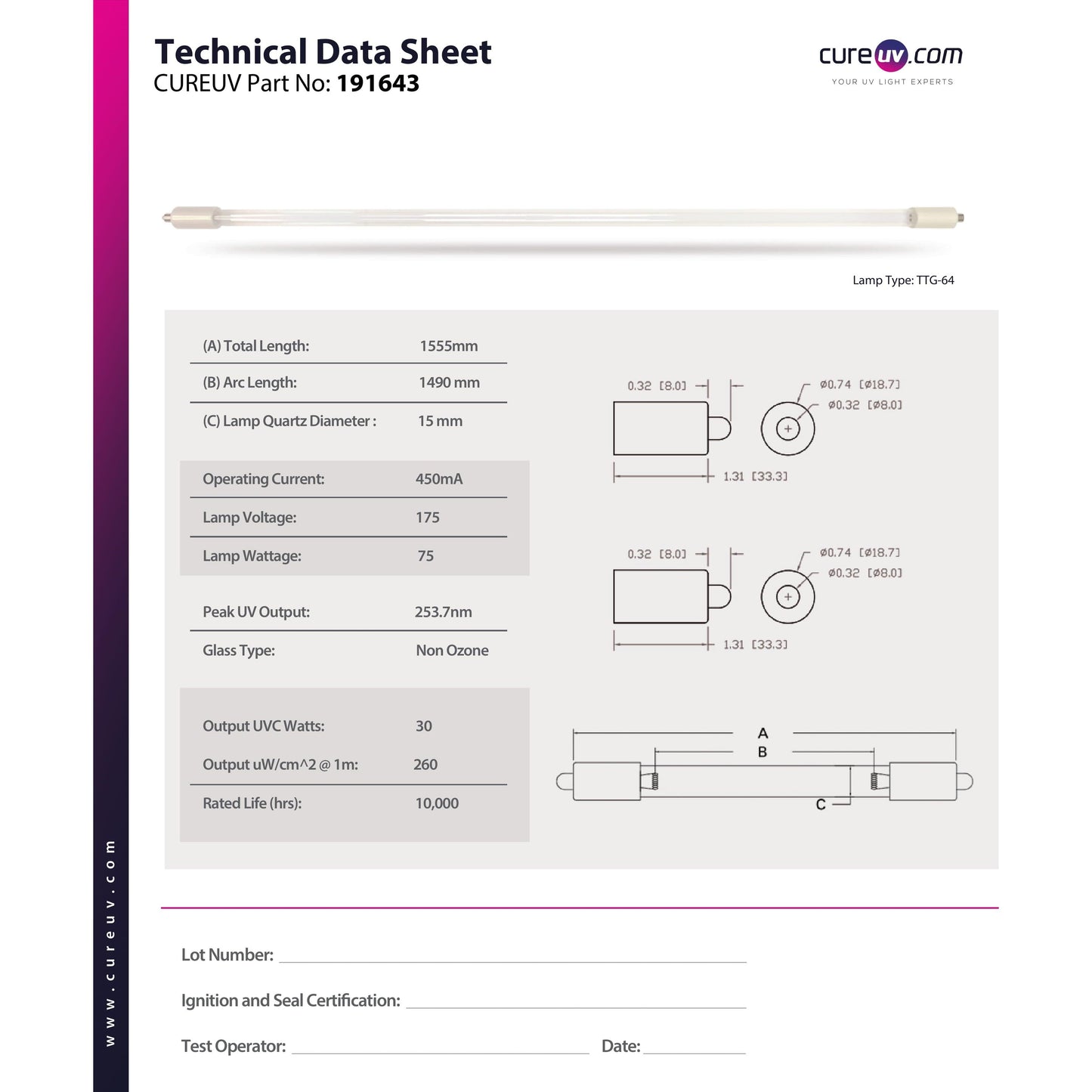

Drawing of Replacement UVC Bulb Item # 191643 (PDF)

Spectral Output of Germicidal UVC Light Bulbs (PDF)

Drawing of Aquafine 3098 UVC Bulb - item # 191643

*Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.org

*All germicidal UVC light bulbs listed are compatible brand UV products. We do not sell Aquafine brand UVC bulbs. All Aquafine brand names, trademarks, and logos are property of Aquafine.

  • *Warning: Ultraviolet UV-C light is harmful to your eyes and skin. Use proper safety gear.

  • Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
