Aquafine 3099 Replacement UVC Light Bulb
Aquafine 3099 Replacement UVC Light Bulb Aquafine 3099 Replacement UVC Light Bulb Aquafine 3099 Replacement UVC Light Bulb Aquafine 3099 Replacement UVC Light Bulb Aquafine 3099 Replacement UVC Light Bulb

Aquafine 3099 Replacement UVC Light Bulb
Free Gift

Brand: Aquafine

SKU: 194090

UV Bulb Price Match Guarantee
$45.00

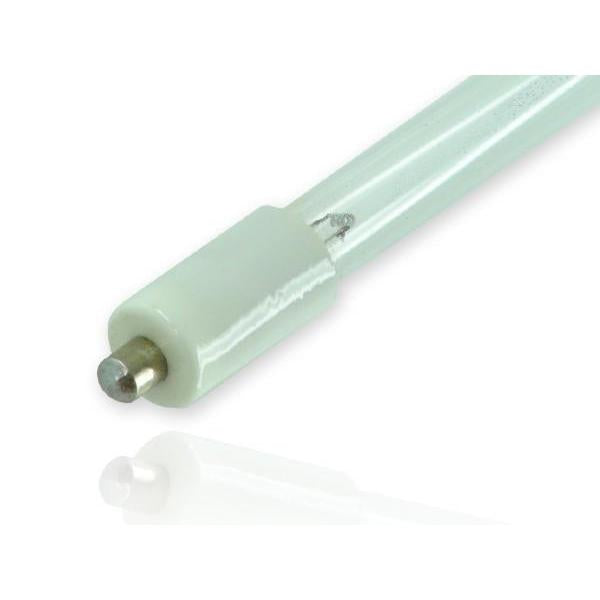

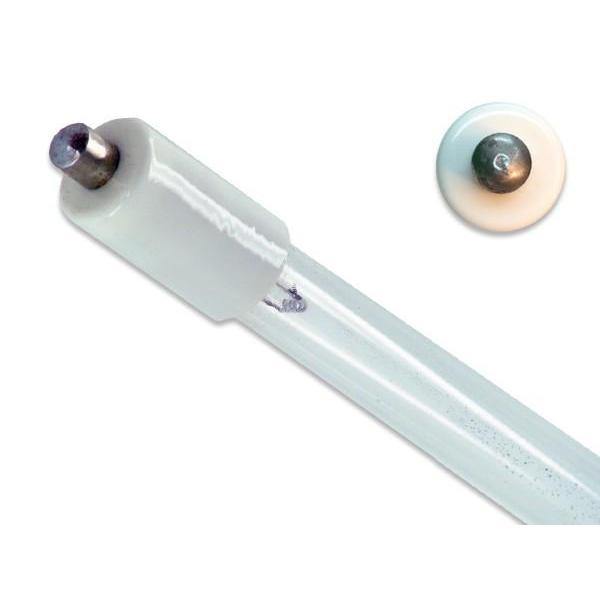

Single Pin Double Ended - 75 Watt Germicidal Water Treatment Bulb

Our Aquafine 3099 Replacement UVC Light Bulb is a single pin double ended light bulb that is a compatible replacement for the following UV-C system models:

  • CSL-10R/60
  • CSL-12R/60
  • CSL-60
  • RBE-16
  • RBE-60

The 75 Watts light bulb does not make use of chemical handling and requires no special storage. This method of water purification does not cause change in odor, taste, pH or chemistry of water. The UVC light bulb emits a wavelength of 253.7 nm and helps in destroying harmful bacteria such as E.coli, cryptosporidium and giardia. When the UV rays passes through water it changes the genetics of the microorganism and renders them harmless and unfit for reproduction. We recommend that you replace the light bulbs annually for efficiency.  The total length of the light bulb is 61.22" and is set in a non-ozone glass type. Ensure utmost water safety with Aquafine 3099 Replacement UVC Light Bulb.

Technical Specifications:

  • Total Length: 61.22 inches (1555mm)
  • Arc Length: 58.66 inches (1490mm)
  • Lamp Quartz Diameter: 15mm
  • Operating Current: 450mA
  • Lamp Voltage: 175V
  • Lamp Wattage: 75 Watts
  • Output UVC Watts: 30 Watts
  • Output uW/cm^2 @ 1m: 260
  • Peak UV Output: 253.7nm
  • Glass Type: Non Ozone

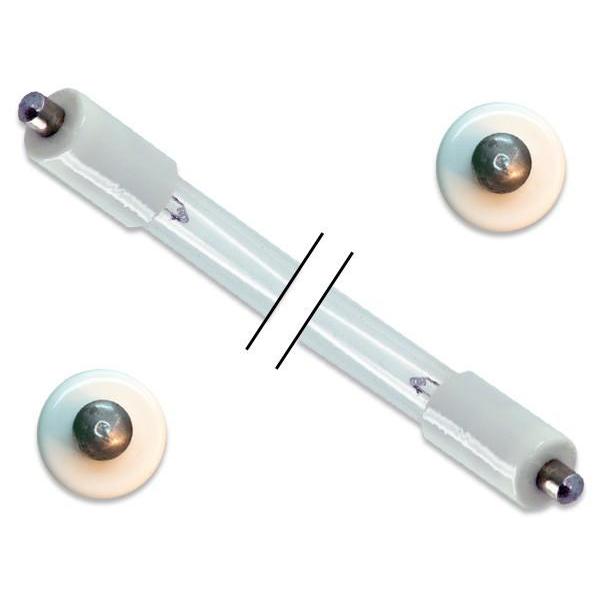

  • Base Style: Single pin double ended
  • Base Material: Ceramic
  • Rated Life: Up to 10,000 hours

 Common Applications

  • Aquaculture
  • Beverage Services and Processing
  • Drinking Water
  • Food Services and Processing
  • Municipal Wastewater
  • Pools, Spas, and Water Features
  • Well Water

Common Locations for use:

  • Factories
  • Farms
  • Homes
  • Hospitals
  • Hotels
  • Laboratories
  • Ships

Spectral Output of Germicidal UVC Light Bulbs

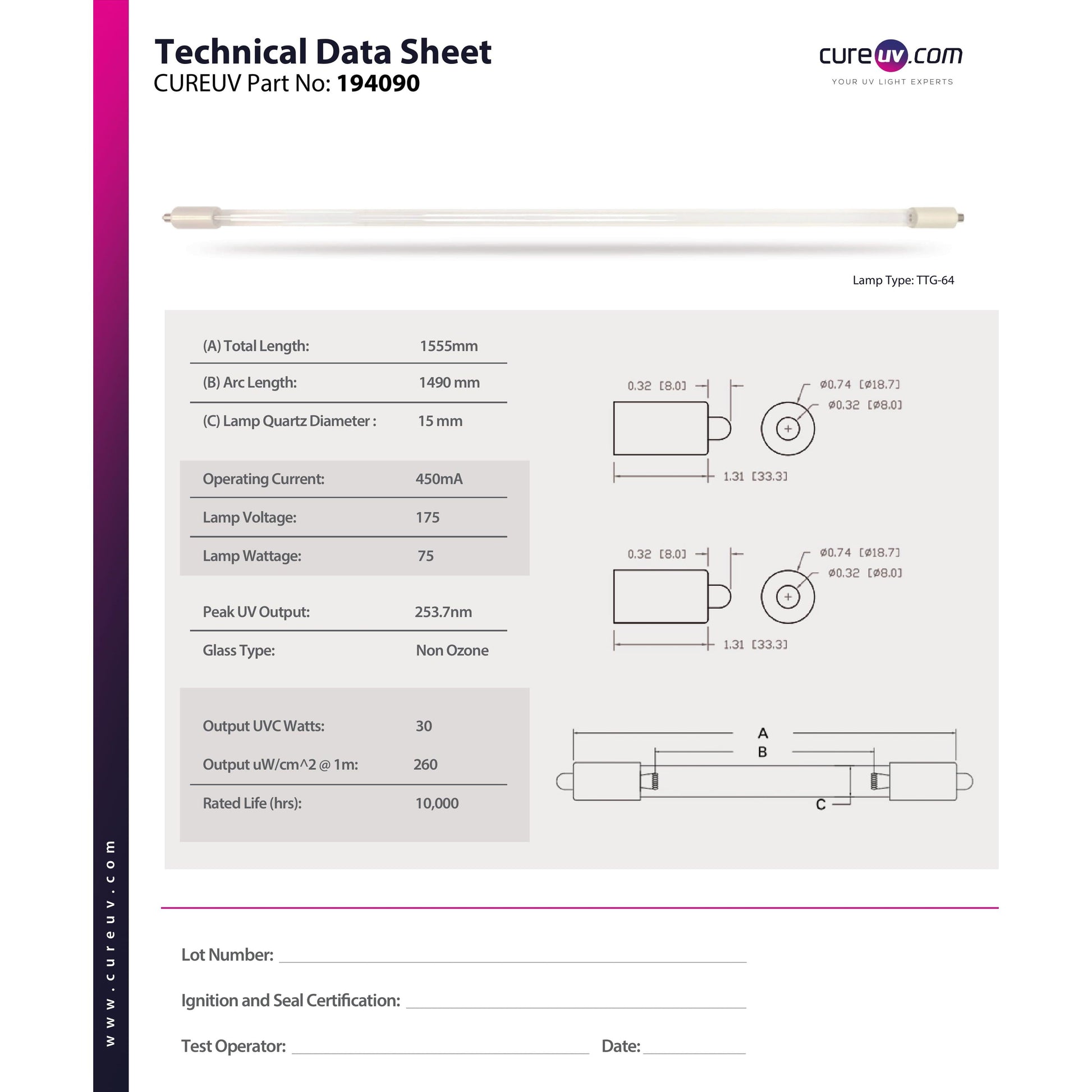

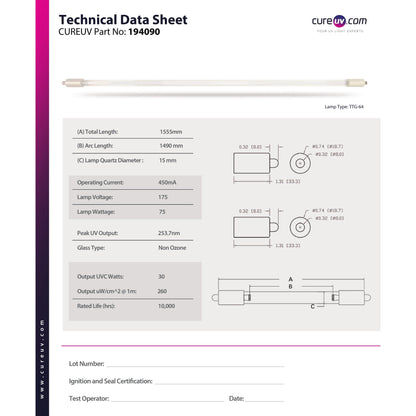

Drawing of Replacement UVC Bulb Item # 194090 (PDF)

Spectral Output of Germicidal UVC Light Bulbs (PDF)

Drawing of Aquafine 3099 UVC Bulb - item # 194090

*Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.org

 *All germicidal UVC light bulbs listed are compatible brand UV products. We do not sell Aquafine brand UVC bulbs. All Aquafine brand names, trademarks, and logos are property of Aquafine.

*Warning: Ultraviolet UV-C light is harmful to your eyes and skin. Use proper safety gear.

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
