AQUAPRO UV12-L Replacement UVC Light Bulb
AQUAPRO UV12-L Replacement UVC Light Bulb AQUAPRO UV12-L Replacement UVC Light Bulb AQUAPRO UV12-L Replacement UVC Light Bulb AQUAPRO UV12-L Replacement UVC Light Bulb AQUAPRO UV12-L Replacement UVC Light Bulb

AQUAPRO UV12-L Replacement UVC Light Bulb
Free Gift

$58.00

4 Pin on a Single End - 41 Watt Germicidal Water Treatment Bulb

Our Aquapro UV12-L Replacement UVC Light Bulb is a 4 pin on a single end light bulb that has a total length of 33.19" and an arc length of 30.12". The replacement UVC light bulb kills and sterilizes bacteria, yeast, virus and pathogens in water. It is compatible to the OEM water disinfection filters, sterilizers and UV purifiers. The light bulb emits a peak UV output of 253.7nm. The four pin, single ended, 44 Watt bulb must be replaced annually for better performance. The replacement light bulb is eco-friendly and cost effective. The short wavelength emitted by the light bulb alters the DNA of the microorganisms to render them harmless.

The UVC lamp bulb is compatible to the following system models:

  • UV12GPM-H
  • UV12GPM-HT
  • UV12GPM-HTM

Technical Specifications:

  • Total Length: 33.19 inches (843mm)
  • Arc Length: 30.12 inches (765mm)
  • Lamp Quartz Diameter: 15mm
  • Operating Current: 425mA
  • Lamp Wattage: 41 Watts
  • Output UVC Watts: 15 Watts
  • Output uW/cm^2 @ 1m: 136
  • Peak UV Output: 253.7nm
  • Glass Type: Non Ozone
  • Base Style: 4 pin on a single end
  • Base Material: Ceramic
  • Rated Life: Up to 10,000 hours

Common Applications

  • Aquaculture
  • Beverage Services and Processing
  • Drinking Water
  • Food Services and Processing
  • Municipal Wastewater
  • Pools, Spas, and Water Features
  • Well Water

Common Locations for use:

  • Factories
  • Farms
  • Homes
  • Hospitals
  • Hotels
  • Laboratories
  • Ships

Spectral Output of Germicidal UVC Light Bulbs

Drawing of Replacement UVC Bulb Item # 192582 (PDF)

Spectral Output of Germicidal UVC Light Bulbs (PDF)

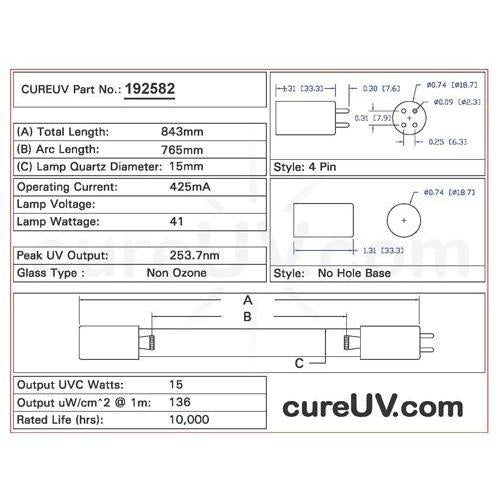

Drawing of AQUAPRO UV12-L UVC Bulb - item # 192582

*Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.org

*All germicidal UVC light bulbs listed are compatible brand UV products. We do not sell AQUAPRO brand UVC bulbs. All AQUAPRO brand names, trademarks, and logos are property of AQUAPRO.

  • *Warning: Ultraviolet UV-C light is harmful to your eyes and skin. Use proper safety gear.

  • Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
