EFI VUTEk GS5000r UV Curing Lamp Bulb
EFI VUTEk GS5000r UV Curing Lamp Bulb UV Curing Lamp - EFI VUTEk GS5000r UV Curing Lamp Bulb UV Curing Lamp - EFI VUTEk GS5000r UV Curing Lamp Bulb UV Curing Lamp - EFI VUTEk GS5000r UV Curing Lamp Bulb EFI VUTEk GS5000r UV Curing Lamp Bulb EFI VUTEk GS5000r UV Curing Lamp Bulb

EFI VUTEk GS5000r UV Curing Lamp Bulb
Free Gift

SKU:

UV Bulb Price Match Guarantee
$236.00

Guaranteed 100% Compatible Replacement Ultraviolet (UV) Lamp - Mercury Wavelength - 9 Inch Arc Length - 12.5625 Inch Total Length (end to end)

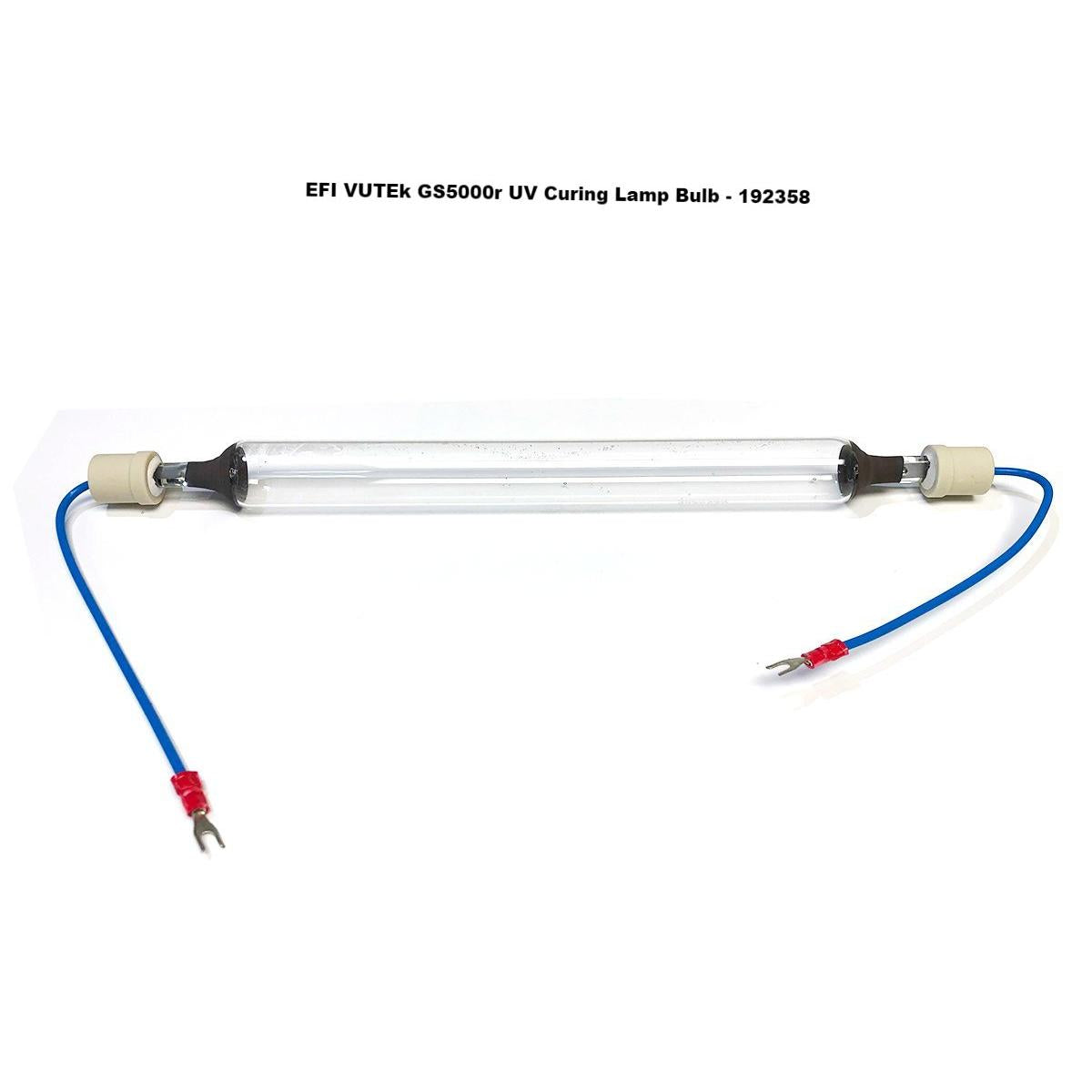

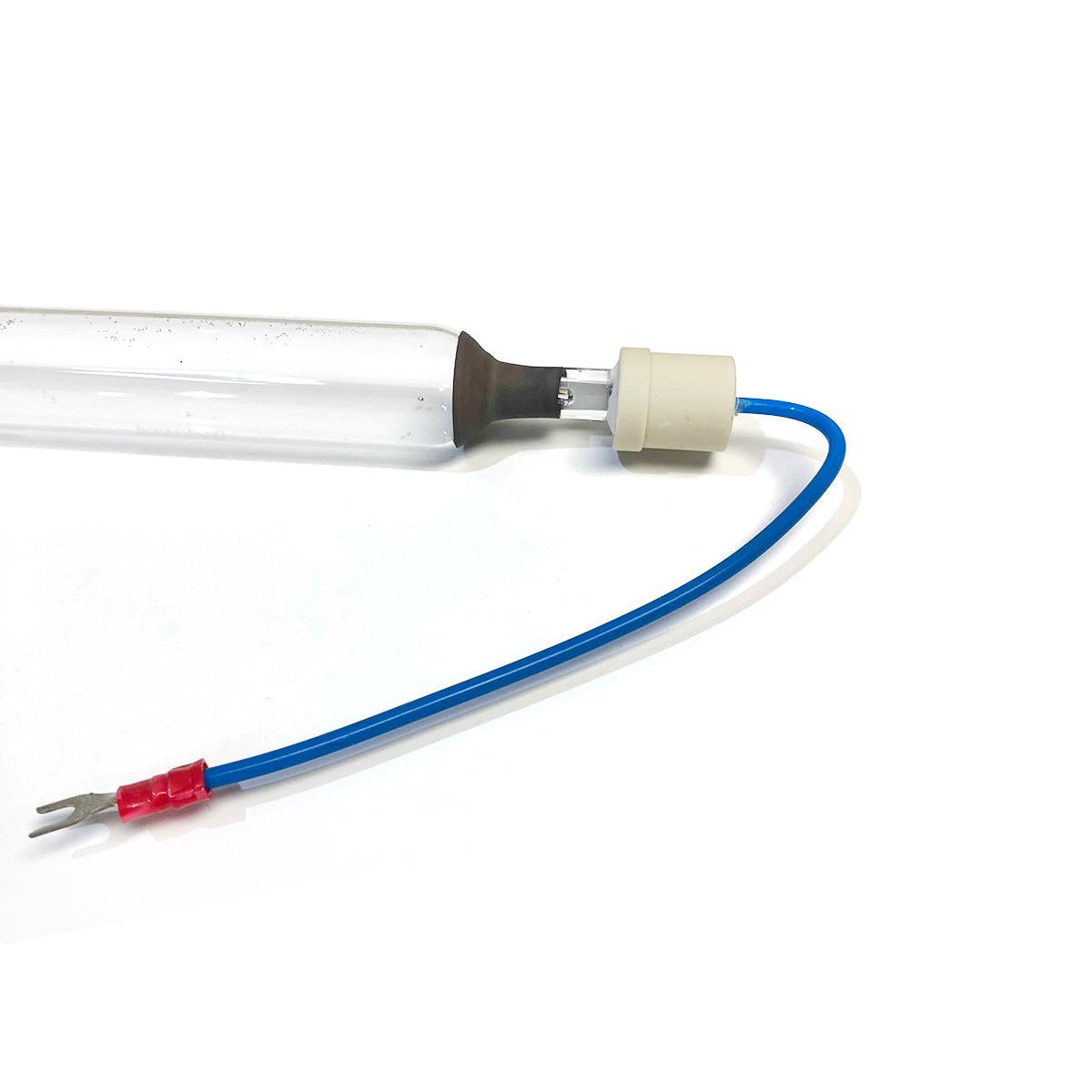

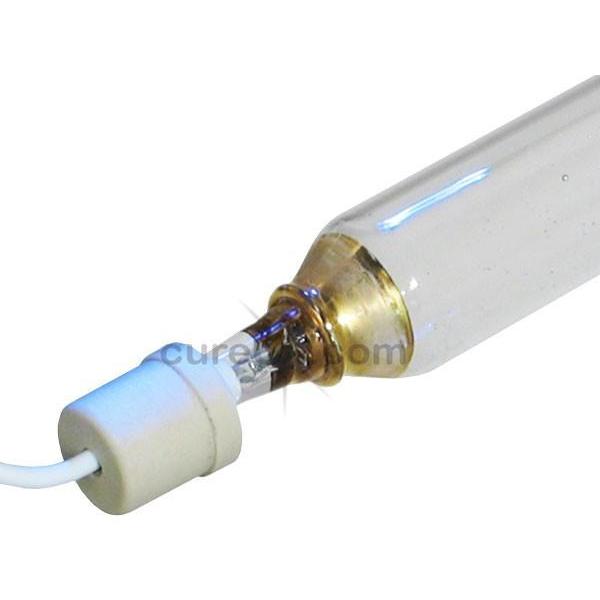

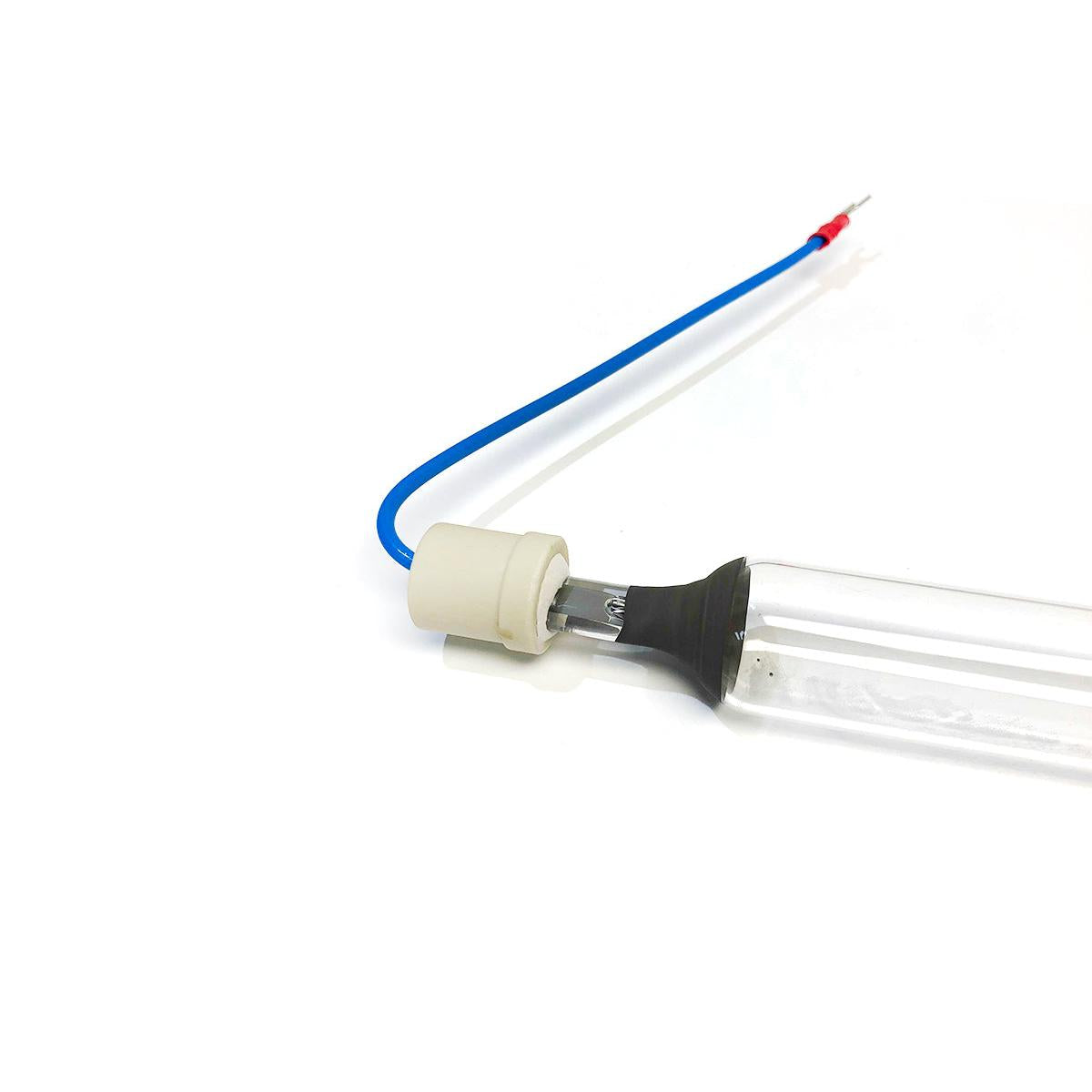

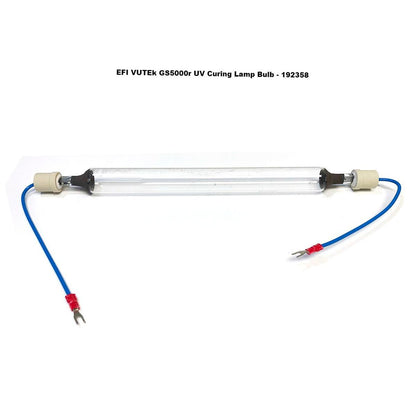

The Efi Vutek GS5000r UV Curing Lamp Bulb is a mercury-filled lamp bulb that has an arc length of 9" and a total length of 12.5625". With a tube diameter of 26mm, the UV lamp is 100% compatible to the Efi Vutek UV Flatbed Printer with the following part numbers:

  • GS5000r
  • GS5000/r
  • GS5000-r
  • GS 5000r
  • 45078276
  • 45088902
  • 504927
  • H09K1-3-F1
  • H09K13F1

CureUV.com sells generic OEM spare parts that work for ink jet UV printers and related equipment. CureUV.com covers comprehensive models, stock parts and components of leading manufacturers.

The use of UV curing systems is predominant in the graphic arts industry, automotive industry and for other industrial applications. Using a UV curing lamp bulb improves durability, enhances the quality of the end products and boost productivity. It also saves energy and reduces drying time with no instances of environmental pollution.

Technical Specifications:

  • Fill: Mercury
  • Quartz: Standard
  • Arc Length: 9 inches
  • Overall Length: 12.5625 inches
  • Tube Diameter: 26mm
  • Watts Per Inch: 340 WPI

UV spectral output of a Mercury Lamp

UV Spectral Output of a Mercury Lamp (PDF)

*Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.org

*All lamps listed are compatible brand UV products. We do not sell EFI/VUTEk brand lamps. All EFI/VUTEk brand names, trademarks and logos are property of EFI.

*Warning: Ultraviolet light is harmful to your eyes and skin. Use proper safety gear.

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.

QUESTIONS & ANSWERS

Ask a Question
  • Hello I'm from Indonesia, I want ask about this uv bulb. In Indonesia have a Vutek GS5000r machine, this uv lamp compatible with my machine and or not? Are you a give me guarantee if the uv bulb not compatible with my machine? Thanks for your attention.

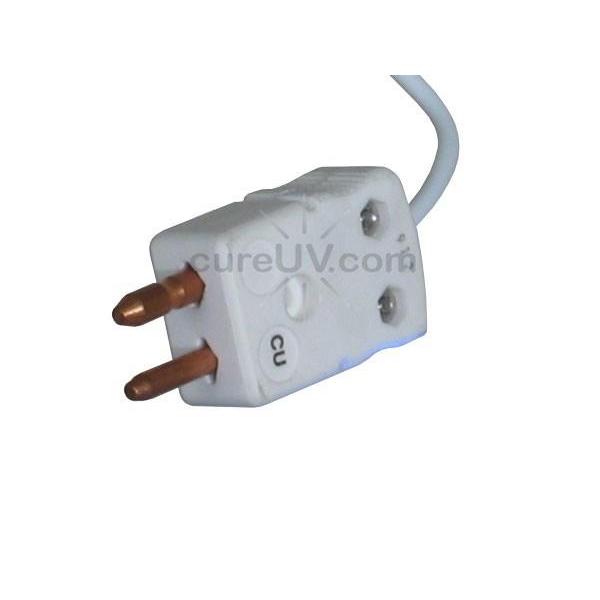

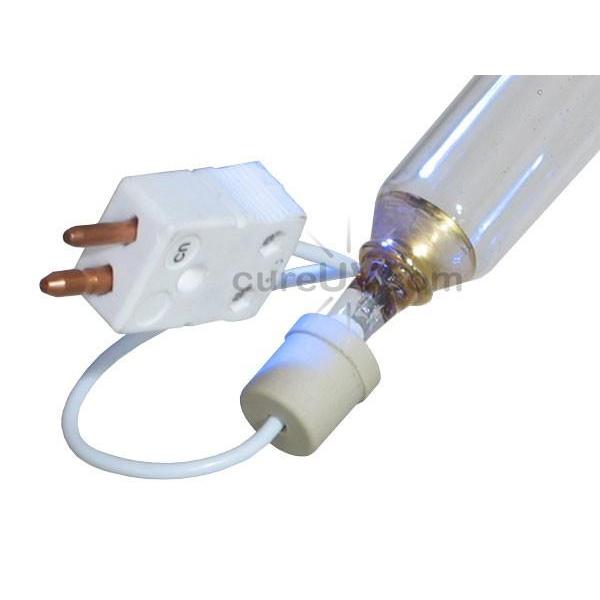

    This is the 100% compatible replacement lamp for use with the VUTEk GS5000r press. Please make sure the dimensions match just to be sure: the arc length is 9", the total length is 12.56", and the output is 340 WPI. These bulbs also come equipped with the omega plugs as well.
