Guaranteed 100% Ultraviolet (UV) Replacement Quartz Plate / Hot Mirror compatible for VUTEk QS2000

CureUV’s Vutek QS2000 UV Quartz Hot Mirror - IR Blocker is a guaranteed UV replacement quartz plate/ hot mirror that is compatible for Vutek QS2000 printer with the following part numbers:

  • UVRDQ/52075
  • QS2000
  • QS 2000
  • QS-2000

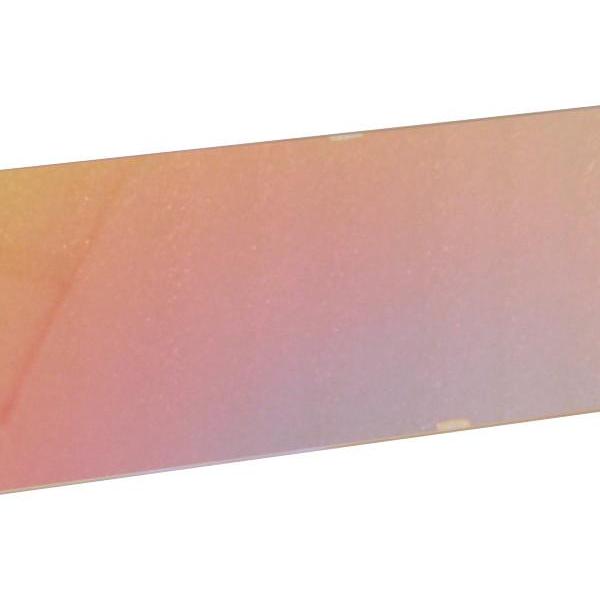

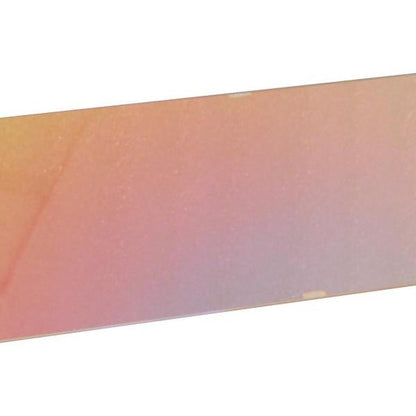

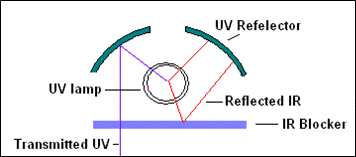

With the dimensions of 7.5" x 5.25" x 2mm, the UV quartz hot mirror is a generic OEM replacement part that exceeds OEM standards of curing performance. The UV hot mirror is primarily placed to reduce the effect of infrared rays (IR) that may have an effect over the printing clarity. Along with dichroic reflectors, the hot mirrors improve UV energy and reduce infra red energy that can cause a likely damage to certain substrates that are heat sensitive. By directing the IR energy to the filament, the hot mirror help in giving you a better printing experience by providing you a reliable way of removing heat.

CureUV’s hot mirror significantly reduces the chances of applications damage by heat, thereby reducing production costs and increasing production speed.

Advantages:

  • Helps in greater transmittance in the area of UV light
  • Allows lesser heating up of the substrate surface
  • Greater suppression in the areas of infrared and visible light

Common Applications:

  • Graphics industry
  • Electronics industry
  • Wood processing industry
  • Surface treatments
  • Packaging industry
  • Sensitive labels and gluing industry
  • Printed circuit board industry
  • Automotive industry

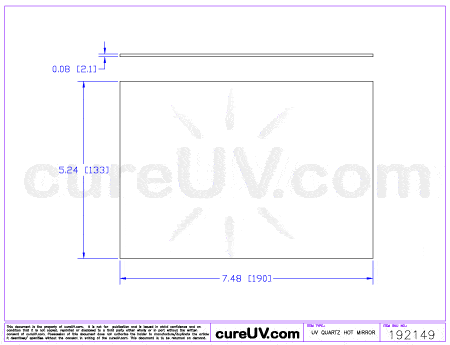

EFI VUTEk QS2000 compatible UV quartz hot mirror drawing

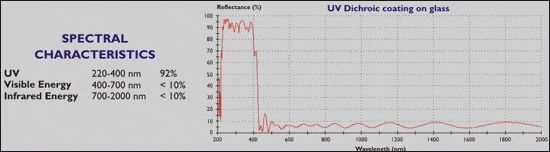

EFI VUTEk QS2000 Compatible UV Quartz Hot Mirror - Drawing (PDF) UV light transmittance graph for quartz hot mirror

  • Tavg > 85%: 220-400nm
  • Tavg < 30%: 430-630nm
  • Tavg <= 87%: 700-2500nm

UV light transmitted for Quartz hot mirror/IR blocker

*All quartz hot mirrors listed are compatible brand UV products. We do not sell EFI/VUTEk brand quartz hot mirrors. All EFI/VUTEk brand names, trademarks and logos are property of EFI.

*Warning: Ultraviolet light is harmful to your eyes and skin. Use proper safety gear.

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
