UV Curing Lamp - Electech Part # ET3050012C UV Curing Lamp Bulb
UV Curing Lamp - Electech Part # ET3050012C UV Curing Lamp Bulb UV Curing Lamp - Electech Part # ET3050012C UV Curing Lamp Bulb

Electech Part # ET3050012C UV Curing Lamp Bulb
Free Gift

SKU:

UV Bulb Price Match Guarantee
$303.99 $338.00

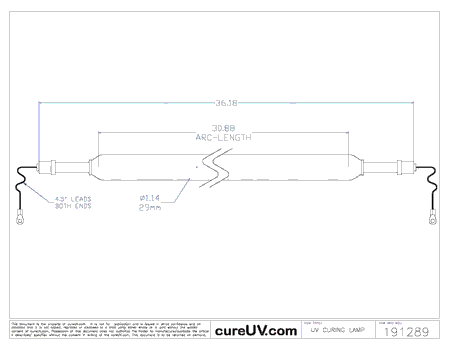

Guaranteed 100% Compatible Replacement Ultraviolet (UV) Lamp - Mercury Wavelength - 30 Inch Arc Length - 36.18 Inch Total Length (end to end)

The Electech Part # ET3050012C UV Curing Lamp Bulb is a 100% compatible replacement UV lamp bulb that has an arc length of 30 inches and a total length of 36.18 inches. The mercury filled lamp bulb has output power of 500 WPI and works well with the following machine models and part numbers:

  • Kamori
  • 8030A23CHD
  • ET3050012C

The CureUV’s replacement bulbs work to cure dry coatings in signs and graphics. Made in the USA, the UV printer bulb provides a predictable lifespan and works to dry coatings and inks. With CureUV, you can be assured of UV lamps for printers in different arc length and spectral fills. Unlike curing using heat, the curing UV bulbs do not release volatile organic compounds in air that makes them an extremely eco-friendly option. The quartz plate in the curing lamp keeps the lamp away from debris and works as a filter between the curing system and the lamp. The usage of light instead of heat enables the ink to harden and dry instantly.

Technical Specifications:

  • Output Power: 500 WPI
  • Fill: Mercury
  • Quartz: Standard
  • Arc Length: 30 Inches
  • Overall Length: 36.18 Inches

UV Spectral Output of a Mercury UV Lamp

UV Spectral Output of a Mercury UV Lamp (PDF)

30In. Arc UV Lamp 500 WPI - Electech UV System - Pt # ET3050012C (PDF)

30In. Arc UV Lamp 500 WPI - Electech UV System - Pt # ET3050012C

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
