UV Curing Lamp - Giardina Part # 6612AP41 UV Curing Lamp Bulb
UV Curing Lamp - Giardina Part # 6612AP41 UV Curing Lamp Bulb UV Curing Lamp - Giardina Part # 6612AP41 UV Curing Lamp Bulb

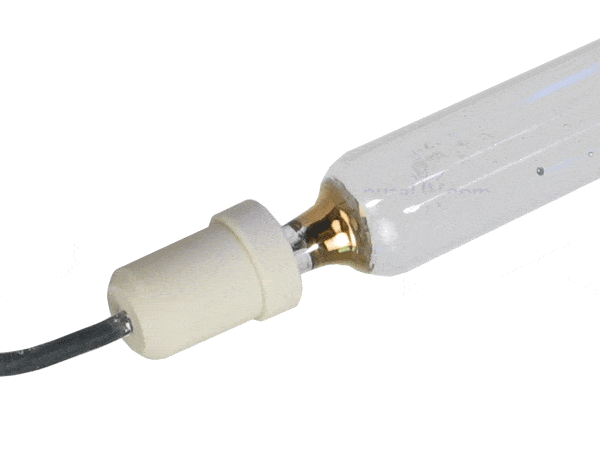

Giardina Part # 6612AP41 UV Curing Lamp Bulb
Free Gift


UV Bulb Price Match Guarantee

Guaranteed 100% Compatible Replacement Ultraviolet (UV) Lamp - 12 Inch Arc Length

The Giardina Part # 6612AP41 UV Curing Lamp Bulb is a 100% guaranteed UV lamp bulb that has an arc length of 12 inches and wattage of 400 WPI. With an overall length of 15.75 inches, the curing lamp bulb exceeds OEM standards of UV curing bulb performance. The lamp bulb is compatible to the Giardina UV systems with the following part number:

  • 6612AP41

The UV lamps in printers are connected to the photo initiators and the ink raw materials. It is always necessary to have a strong UV light for printing, as a weak UV light fails to cure properly and the ink feels sticky. The UV replacement lamp exceeds OEM standards and is subjected to strict quality control measures to give you the printing experience you desire. Studies show that as the bulb hour rises, the lamp produces less UV light and more heat. Excessive heat cause bulge in the print media along with damaging shutters and reflectors in the lamp housing. This can lead to enormous repairing costs. It is always safer to use a good quality UV lamp like the one from CureUV.

Technical Specifications:

  • Fill: Mercury
  • Quartz: Standard
  • Arc Length: 12 inches
  • Overall Length: 15.75 inches
  • Tube Diameter: 25mm

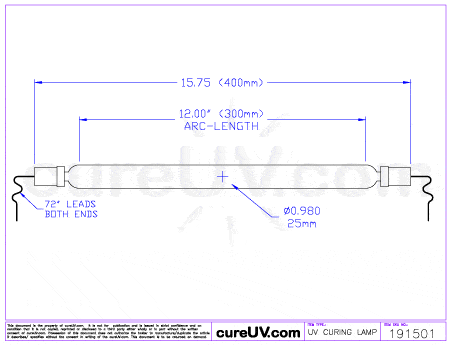

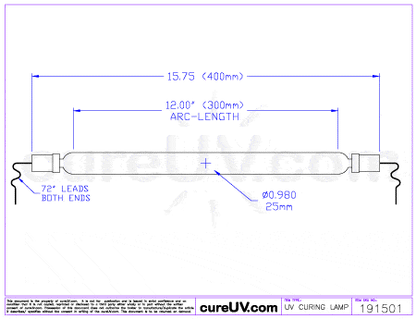

Giardina compatible UV Lamp - Part Number 6612AP41 drawing

Giardina compatible UV lamp - Part Number 6612AP41 - Drawing (PDF)

*All lamps listed are compatible brand UV products. We do not sell Giardina brand lamps. All Giardina brand names, trademarks and logos are property of Giardina.

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
