Glasco UV GS4305L Replacement UVC Light Bulb
Glasco UV GS4305L Replacement UVC Light Bulb
SKU:192054
4 Pin on a Single End - 39 Watt Germicidal Water Treatment Bulb
The Glasco UV GS4305L Replacement UVC Light Bulb is a 39Watt germicidal UVC treatment bulb that has four pin on a single end. The UVC bulb has an arc length of 28.74" and a total length of 31.89". The light bulb has a ceramic base and is rated to run for 10,000 hours. After this stipulated time frame CureUV recommends that you replace the light bulb even if it continues to emit light. The light bulb emits a short wavelength of 253.7nm that disrupts the genetics of the microorganisms and renders them harmless. The light bulb helps in controlling the growth of bacteria, protozoa, yeast, molds and other pathogens in the water that can cause harm.
UV replacement light bulb provides you with worry-free performance for the entire year. Treating water using the UVC method is a purely physical process and does not involve the use of chemicals and their byproducts. This method is eco-friendly as it involves low mercury dosage.
The UVC bulb is a compatible replacement for the following UVC models:
- GS4305L
This bulb is available with a shatterproof coating that in case of damage keeps the lamp glass from falling into the unit where is installed. This results in an easy way to dispose of glass if it shatters. You can select this shatterproof option above.
Do I need shatterproof coating?
Although shatterproof coating can lower the intensity of the UV-C bulb by as much as 15%, it is recommended for applications in which it is crucial to avoid potential glass breakage at all costs. These applications include but are not limited to food processing and medical institutions. However, if glass breakage would be inconvenient but not catastrophic, skipping the costly shatterproof coating is quite alright. After all, we do not use shatterproof coating with our glasses and plates at home.
Technical Specifications:
- Total Length: 31.89 inches (810mm)
- Arc Length: 28.74 inches (730mm)
- Lamp Quartz Diameter: 15mm
- Operating Current: 425mA
- Lamp Wattage: 39 Watts
- Output UVC Watts: 13.8 Watts
- Output uW/cm^2 @ 1m: 130
- Peak UV Output: 253.7nm
- Glass Type: Non Ozone
- Base Style: 4 pin on a single end
- Base Material: Ceramic
- Rated Life: Up to 10,000 hours
Common Applications
- Aquaculture
- Beverage Services and Processing
- Drinking Water
- Food Services and Processing
- Municipal Wastewater
- Pools, Spas, and Water Features
- Well Water
Common Locations for use:
- Factories
- Farms
- Homes
- Hospitals
- Hotels
- Laboratories
- Ships

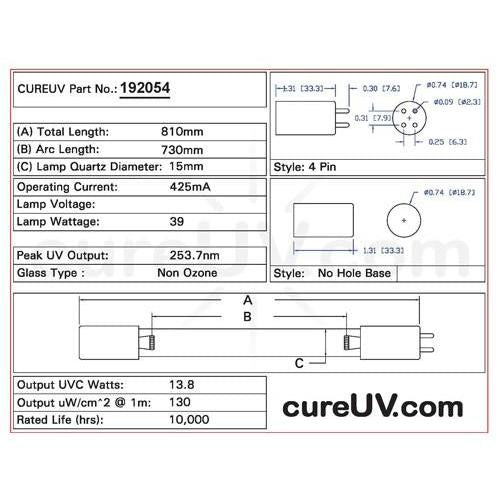

Drawing of Replacement UVC Bulb Item # 192054 (PDF)
UVC Light Disinfection Dosage Chart (PDF)
Spectral Output of Germicidal UVC Light Bulbs (PDF)
*Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.org
*All germicidal UVC light bulbs listed are compatible brand UV products. We do not sell Glasco UV brand UVC bulbs. All Glasco UV brand names, trademarks, and logos are property of Glasco UV.
*Warning: Ultraviolet UV-C light is harmful to your eyes and skin. Use proper safety gear.
Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
