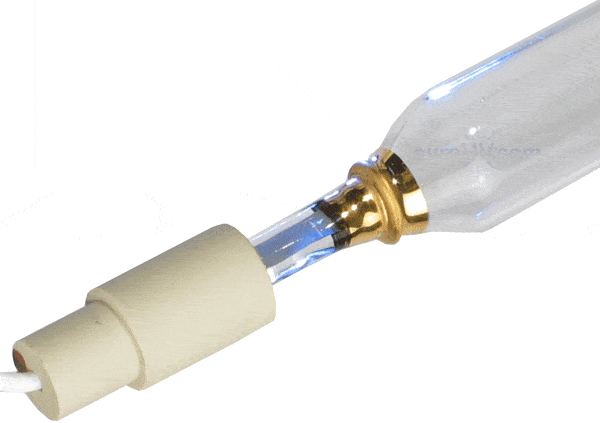

Hanovia Part # 6618A442 UV Curing Lamp Bulb

Guaranteed 100% Compatible Replacement Ultraviolet (UV) Lamp - 18 Inch Arc Length

The Hanovia Part # 6618A442 UV Curing Lamp Bulb is a 100% guaranteed UV lamp bulb that has 18 inch arc length and exceeds OEM standards of UV curing bulb performance. The lamp bulb is 100% compatible to the Hanovia UV systems and works well for the following part numbers and models:

• Polytype
• 128385
• AM2887X
• 6618A442

The curing lamp bulb is a compatible replacement UV lamp that is manufactured in the USA and is considered the most effective, high output and high quality UV emitters in the market today. The CureUV light bulb exceeds OEM standards of curing bulb performance. The light bulb works to dry coating and inks in signs and graphics. The curing lamp consists of a quartz glass plate that protects lamps from debris and works as a filter between the curing system and the lamp. The plate prevents dirt, grit and contaminants from building up in the lamp.

Extensively used in the printing industry, the curing bulb is used mainly to cure inks and coatings. The lamp is considered a better option than infra red drying as it resists smudges. UV curing is also environmental friendly as it reduces the use of energy and most importantly prevents the release of volatile harmful compounds in the air.

Technical Specifications:

• Quartz: Standard
• Overall Length: 24.88 inches
• Arc Length: 18.63 inches
• Tube Diameter: 26mm

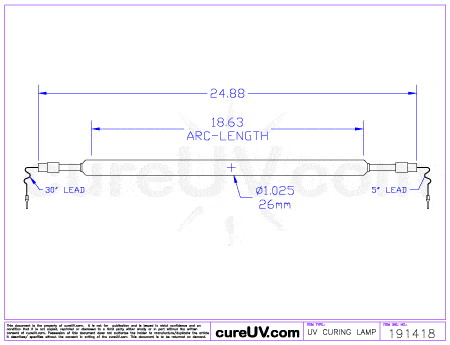

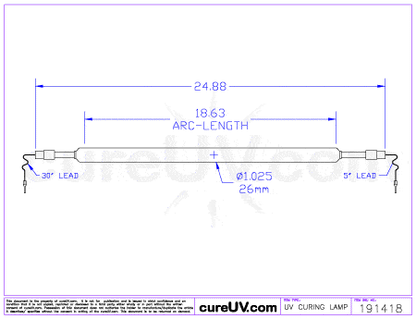

Hanovia 18 inch UV lamp (400 WPI) - OEM part number 6618A442 - Drawing (PDF)

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
