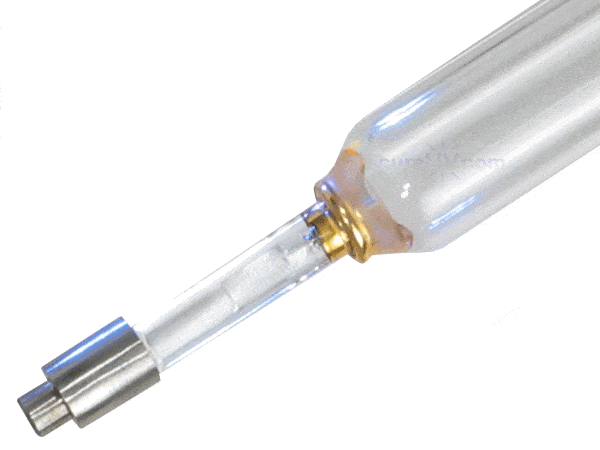

Hanovia Part # 6524A431 UV Curing Lamp Bulb

Guaranteed 100% Compatible Replacement Ultraviolet (UV) Lamp - 25 Inch Arc Length

The Hanovia Part # 6524A431 UV Curing Lamp Bulb has an arc length of 25 inch and is a guaranteed compatible replacement lamp bulb to the Hanovia UV systems. The lamp bulb is compatible to the following part numbers:

• 6524A431
• PM2207
• 2420008K

The replacement bulb exceeds OEM standards of bulb performance. It involves a process where high intensity UV rays dry or cure inks and coatings in printers. The method of UV curing also uses light instead of heat, which enables the ink to dry and harden instantly. The UV curing method is fast gaining popularity as against alternative traditional solvent-based products. With solvent-based products the risk of environmental pollution is greater as the solvent evaporates. This results in greater printing quality, better productivity and lower production costs.

Technical Specifications:

• Fill: Mercury
• Quartz: Standard
• Arc Length: 25 Inches
• Overall Length: 30.63 Inches
• Tube Diameter: 22.5 mm
• Watts Per Inch: 200 WPI

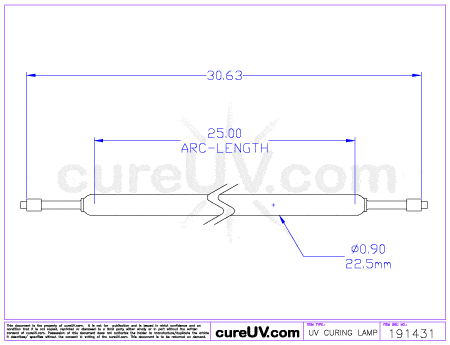

Hanovia 25 inch UV lamp (200 WPI) - OEM part number 6524A431 - Drawing (PDF)

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
