UV Reflector - Hanovia UV System - Fits 18" Arc UV Lamp Pt # 6818A442

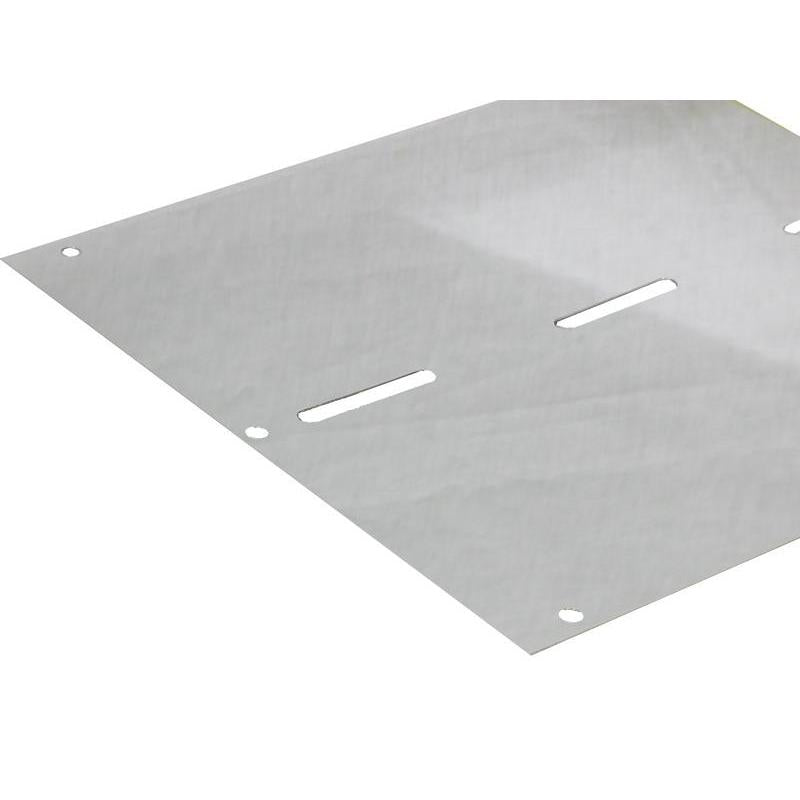

UV Reflector - Hanovia UV System - Fits 18" Arc UV Lamp Pt # 6818A442 Hanovia Part # 6818A442 UV Curing Reflector Liner

Hanovia Part # 6818A442 UV Curing Reflector Liner
Free Gift

Brand: Hanovia

SKU: 191492

UV Bulb Price Match Guarantee
$140.00

Guaranteed 100% Ultraviolet (UV) Reflector Compatible for Hanovia Part # 6818A442 UV Lamp Bulb

The Hanovia Part # 6818A442 UV Curing Reflector Liner is a 100% UV reflector that is compatible to the Hanovia UV systems. The UV replacement liner exceeds OEM standards of UV curing performance and works well with the Hanovia UV systems to the following models and part numbers:

  • 6818A442
  • Poly Type
  • 128385
  • AM2887X

The reflector is manufactured to reflect UV curable energy. It allows higher UV wavelength to pass through it and is a generic replacement for Durst Rho 205/8 printer.

The main function of the reflectors is that it reflects visible light and allows infrared radiation to pass. The illuminated object is heated less as the infrared radiation of the light beam is reduced.

UV reflectors are very important in a UV system and are responsible for the reflection of over 55% of the UV energy source. Therefore it is very important to maintain and clean the UV reflectors in a UV system periodically.

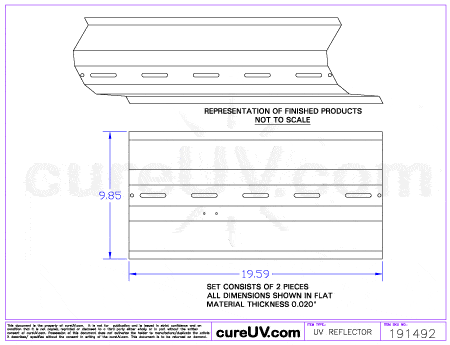

Hanovia UV Reflector - OEM Part Number 6818A442 drawing

Hanovia aluminum UV reflector - OEM part number 6818A442 - Drawing (PDF)

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
