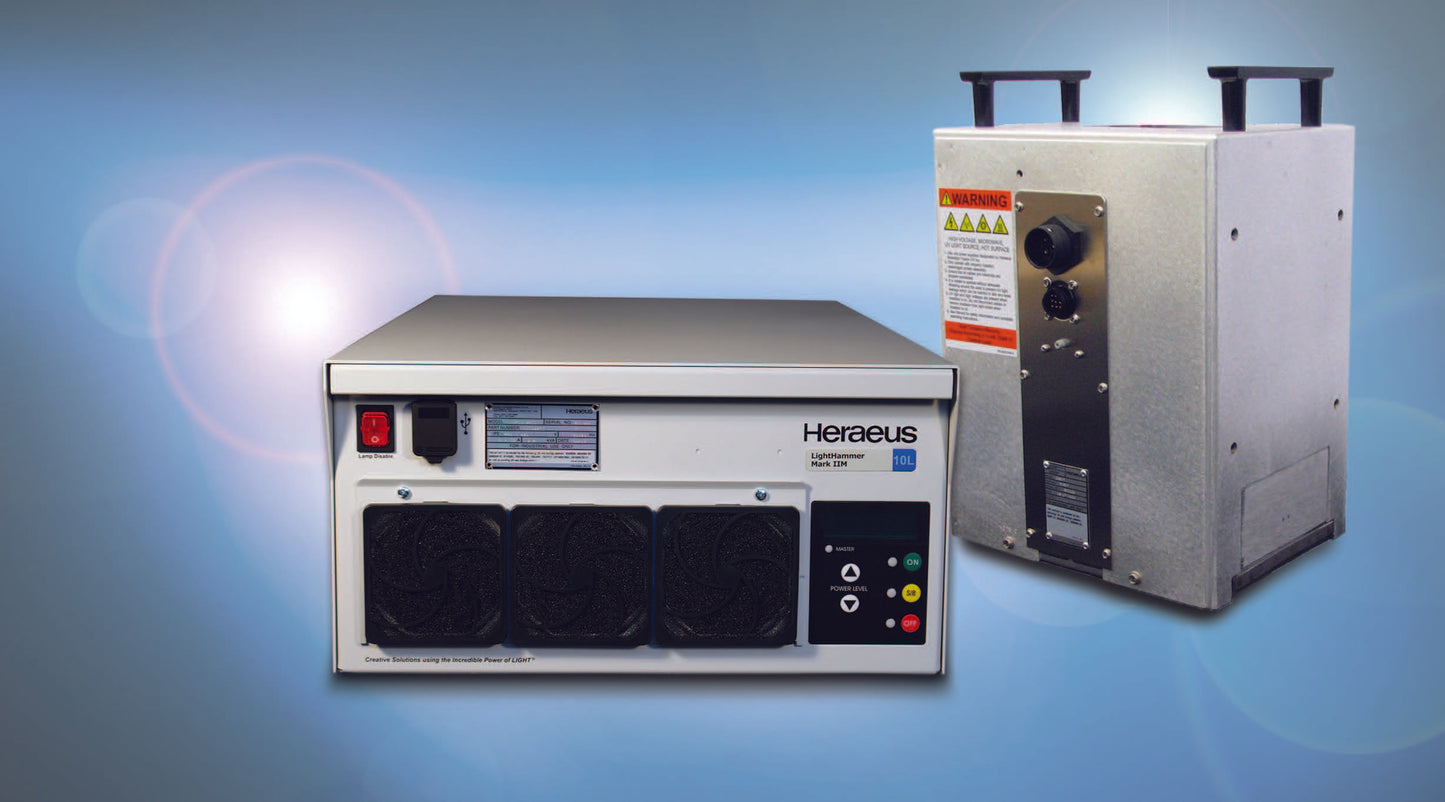

Heraeus Fusion Noblelight LHP10L Mark IIM Power Supply

Heraeus Fusion Noblelight LHP10L Mark IIM Power Supply
Free Gift


UV Bulb Price Match Guarantee

The new LHP10L Mark IIM is a power supply designed to upgrade any Legacy Heraeus Microwave System or Power Supply. Replacing any existing Heraeus Noblelight P150/P155/P160 or VPS power supply in a retrofit installation with innovative features such as: Power Factor Correction, Higher reliability, Real-time diagnostic capability, Multiple communications protocols enabled among others.

This new Power Supply has a higher cost-efficiency thanks to the incorporation of a power factor correction circuitry and with its new completely balanced current drawn from the 3-phase, your plant’s existing electrical system will see an improved load handling capability.

Features and Benefits:

  • State-of-the-art electronics technology
  • Power Factor Correction (PFC) of ~99% at full load
  • Minimum Total Harmonic Distortion (THD)
  • 200–480 VAC, 50/60 Hz universal input voltage
  • Higher reliability
  • Multiple communications protocols enabled (DeviceNetTM, Profibus®, Profinet®, EtherNet/IPTM, Dry Contact)
  • Real-time diagnostic capability
  • Lightweight and compact design
  • The irradiator can be mounted vertically using “D” bulbs
  • Higher efficiency and cost-effectiveness

Equipped with an adapter cable, this system allows you to keep the existing cables and easily connect your system to its new power supply (VPS RF detector cable does need to be replaced since this connection is made through the Multi-Row I/O or Customer I/O modules) A pigtail input power adapter cable is available to connect the J101 terminal block of the LHP10L Mark IIM to the P101 input power connector used for the existing power supply.

The new and better Power Supply is AIMS® (Automated Intelligent Monitoring System) enabled and available with additional hardware and software. Providing careful on-board monitoring and analysis of system parameters, providing valuable information regarding the system performance and status. The result is improved system uptime and maintenance.

Technical Specifications:

  • Weight:  27 kg (60 lbs.)
  • Dimensions (W x H x L):  419 mm x 217 mm x 777 mm with connector (16.48" x 8.54" x 30.6" with connector)
  • Cooling:  Internal fans
  • Input Voltages:  200 V–480 V (auto-ranging), 3-phase, 50/60 Hz
  • Max Line Current:  At 380–480 V: 10–8 A, at 200–240 V: 19–16 A
  • Mounting position:  Horizontal–unit can be free-standing, stacked, or rack-mounted
  • Line Power at 100%:  10 kVA
  • Clearance:  Allow 305 mm (12 in.) clearance front and rear of the power supply for cooling airflow and cable connections
  • Safety Interlocks:  E-stop, external interlocks (customer I/O), RF fault
  • Mag Current @ 100% Power:  890 mA/magnetron
  • Mag Current Output Accuracy:  ±1%
  • Power Factor @ 100% power:  99%
  • I/O Communications:  Master/Slave (dry contact)(S), DeviceNetTM (O), Profibus® (O), Profinet® (O), EtherNet/IPTM (O)
  • Power Level Control:  4–20 mA, 0–10 VDC, 4-bit binary, front panel
  • Front Panel Indicators/Controls:  Power On/Off switch, USB port, display unit with ON/Standby/OFF buttons and Power Level control buttons
  • Output Range:  35% to 100%
  • Audible Noise Level:  65 dBa @ 1 m (at lamp Off/Reset)
  • 3-phase:  50/60 Hz
  • Enclosure Rating:  IP20 (NEMA 1)
  • Stacking:  5 units maximum

Technical Data Sheet:


  • The I223 irradiators cannot be connected to the LHP10L Mark IIM power supply.
  • When installing the LHP10L Mark IIM into an existing legacy installation, all power supplies in a control group/row must be replaced. Differing power supplies cannot be mixed in a control group. Some PLC remote input commands may need to be reprogrammed.

If you have any questions or want to know more, we would love to help you with your UV curing. Please reach out to us at sales@cureuv.com or between 8:00 a.m. and 4:30 p.m. EST at 1(800) 977-7292.
