UV Curing Lamp - Honle A12923N UV Curing Lamp Bulb

Honle A12923N UV Curing Lamp Bulb
Free Gift


UV Bulb Price Match Guarantee

Guaranteed 100% Compatible Replacement Ultraviolet (UV) Lamp - Mercury Wavelength - 7 Inch Arc Length - 10.44 Inch Total Length (end to end)

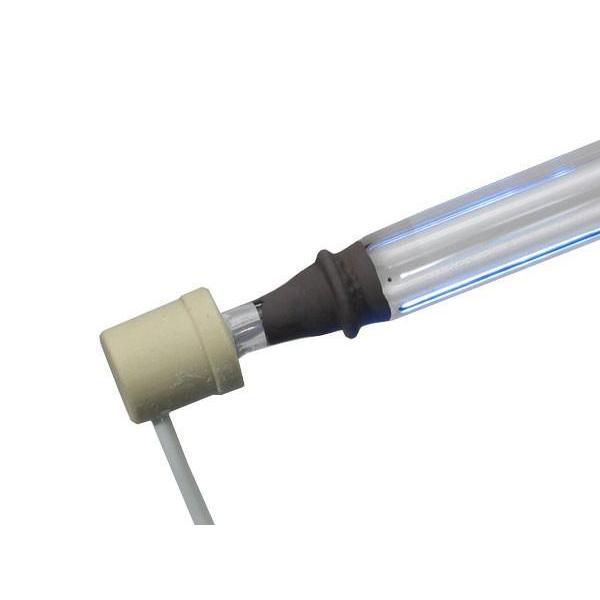

The Honle A12923N UV Curing Lamp Bulb is a guaranteed 100% compatible replacement UV lamp that has an arc length of 7" and a total length of 10.44". Filled with mercury, this curing lamp bulb is compatible to the Honle UV Flatbed Printer with the following part numbers:

  • A12923N
  • UVL/3407

With an arc length of 7", the mercury-filled UV replacement lamps from CureUV is subject to strict quality control measures to give you a better printing experience that you need. It is recommended that you replace the UV curing lamp every year. Studies have shown that as the bulb hour rises, the lamps tend to produce less UV light and more heat. With greater heat there are chances of print media bulging. Excess heat may also cause damage to the shutters and reflectors in the lamp housing, which could ultimately lead to bad output and high repairing costs. Therefore it is recommended to use a good quality UV lamp like this one from CureUV.

Technical Specifications:

  • Fill: Mercury
  • Quartz: Standard
  • Arc Length: 7 inches
  • Overall Length: 10.44 inches
  • Tube Diameter: 22mm
  • Watts Per Inch: 400 WPI

Ultraviolet (UV) spectral output of a mercury lamp

Ultraviolet (UV) Spectral Output of a Mercury Lamp (PDF)

*Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.orgHonle Digital UV Lamp - Part # A12923N

*All UV lamps listed are compatible brand UV products. We do not sell Honle brand UV lamps. All Honle brand names, trademarks and logos are property of Honle.

*Warning: Ultraviolet UV light is harmful to your eyes and skin. Use proper safety gear.

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
