UV Curing Lamp - HP Scitex 6100 500515 UV Curing Lamp Bulb
UV Curing Lamp - HP Scitex 6100 500515 UV Curing Lamp Bulb UV Curing Lamp - HP Scitex 6100 500515 UV Curing Lamp Bulb UV Curing Lamp - HP Scitex 6100 500515 UV Curing Lamp Bulb UV Curing Lamp - HP Scitex 6100 500515 UV Curing Lamp Bulb UV Curing Lamp - HP Scitex 6100 500515 UV Curing Lamp Bulb UV Curing Lamp - HP Scitex 6100 500515 UV Curing Lamp Bulb

HP Scitex 6100 500515 UV Curing Lamp Bulb
Free Gift

SKU:

UV Bulb Price Match Guarantee
$169.99 $189.00

Guaranteed 100% Compatible Replacement Ultraviolet (UV) Lamp - Mercury Wavelength - 6 Inch Arc Length - 8.75 Inch Total Length (end to end)

The HP Scitex 6100 500515 UV Curing Lamp Bulb is a mercury UV replacement lamp that exceeds OEM standards of bulb performance. The replacement bulb is compatible to the HP Scitex 6100 UV Flatbed Printer with the following part numbers:

  • 6100
  • 500515
  • B299768
  • HP Scitex 6100
  • Scitex 6100
  • Turbo Jet 8300

With CureUV.com, you get a wide selection of UV replacement lamps, dichoric reflectors and quartz plate. These replacement parts play a vital role in the digital printing process.

The mercury-filled UV lamp has an overall length of 8.75" and an arc length of 6" and is considered a high quality and highly effective UV emitter in the market. The UV lamp works to dry and cure inks in signs and graphics. The quartz plate in the replacement lamp prevents debris from falling on to the lamp. It also works as filter between the curing system and the lamp. The use of the replacement lamp is extensive in the printing industry. It helps in curing coatings and inks and also resists smudges. The lamp is environmental friendly as there is no process of solvent evaporation when compared to the conventional drying methods. This results in great printing quality as well as productivity.

Technical Specifications:

  • Fill: Mercury
  • Quartz: Standard
  • Arc Length: 6 Inches
  • Overall Length: 8.75 Inches

UV Spectral Output of a Mercury Lamp (PDF)

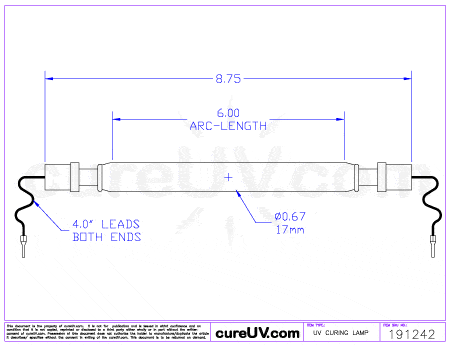

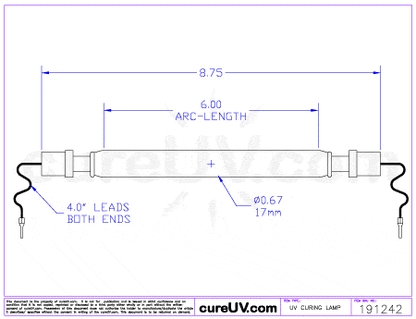

HP Scitex 6100 Compatible UV lamp - Drawing (PDF)

*All lamps listed are compatible brand UV products. We do not sell HP (Hewlett-Packard) brand lamps. All HP (Hewlett-Packard) brand names, trademarks and logos are property of HP (Hewlett-Packard).

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
