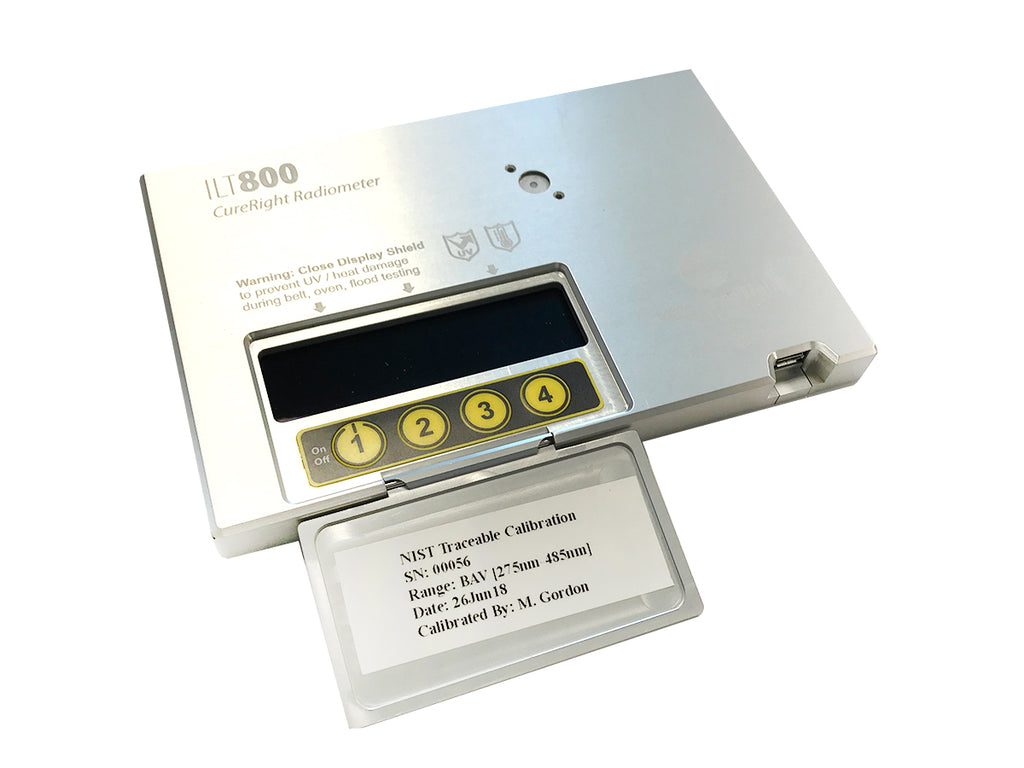

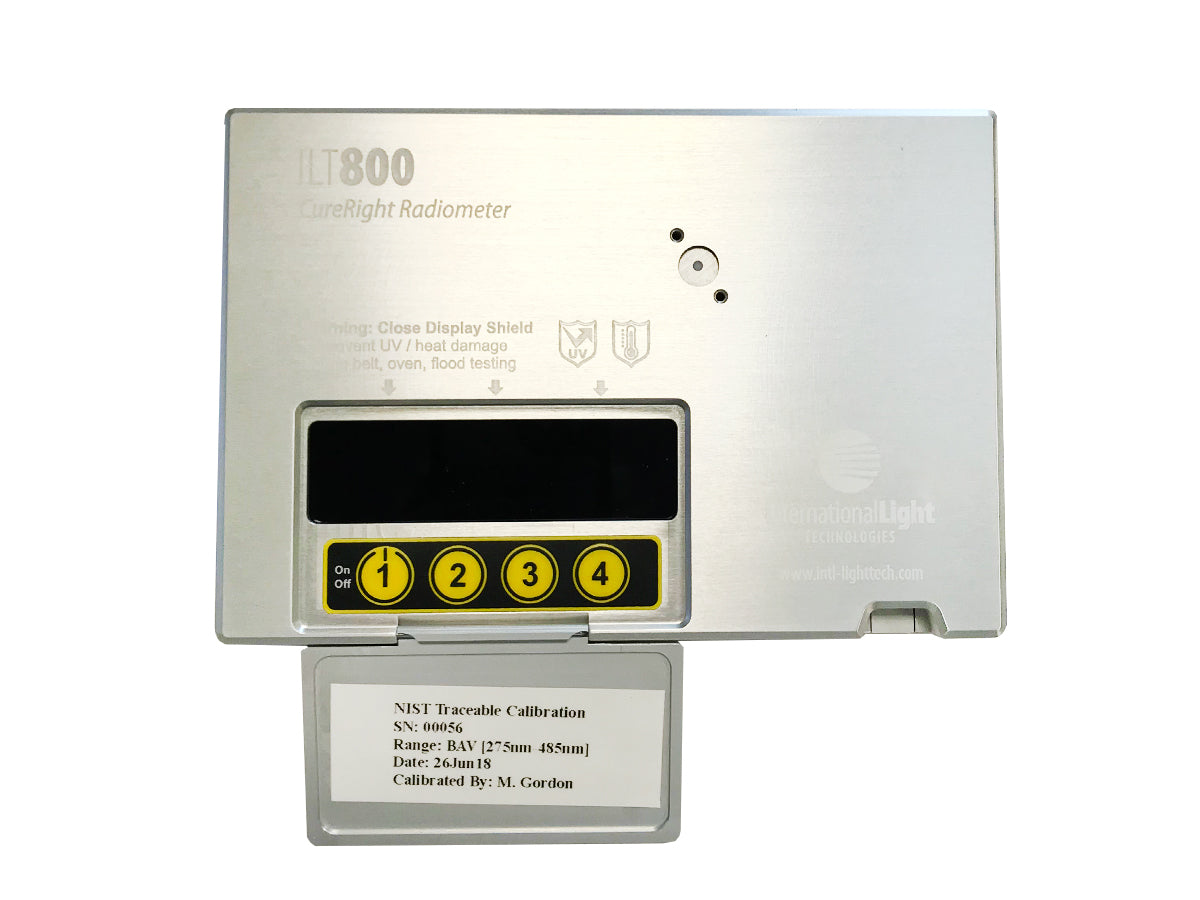

ILT800 CureRight Radiometer

$2,399.99 USD

Sale Sold out

SKU:ILT-METER-800-UVA

The ILT800 is the ideal heavy duty Radiometer for validating required dosages and compare baseline readings across production lines.

The ILT800 CureRight Radiometer is a high end, top of the line radiometer that allows you to measure a range of UV spectral outputs emitted by your curing or sanitizing systems. This device is compact and heavy duty to withstand use in a range of industries.

This device is feature-rich and delivers unmatched flexibility as it can be configured to your unique needs and environment.

Some of the programmable settings include minimum light level threshold, time to auto shutoff, lamp-to-lamp measurement interval / delay, and auto/manual/live measurement modes.

The ILT800 can measure and validate any type of UV sources including conveyor belt, flood, area, spot light, oven, side cure, fiber optic, 180° curing, collimated beam, pulse and traditional UV lamps, LEDs, 3D printing, and more.

ILT800 is the only radiometer available on the market with Device ID. This feature allows users to program 20 unique source/system information, which allows users to store and export baselines and historical data for all their systems.
Get access to all the functions and features you need in one economically priced meter!

Features:

Manual, Auto, and Live mode options*
3000 samples per second
Store up to 1000 profiles
Integration for up to 10 minutes
Can measure pulsed and continuous sources
Profiling is standard
Record date, time, and temperature
Linear response
Clear OLED display
Made in USA

* Manual mode: user starts and stops | Auto mode: starts to measure as soon as enough light is applied | Live mode: instant feedback of irradiance and dosage

ILT 800 in use

ILT800 other use

ILT800 readout

ILT800 CureRight Radiometer Models

The ILT800 CureRight Radiometer is available with different spectral filtration options to match a wide range of UV curing, UV LED, and UV measurement applications. Select the model that best matches your light source and measurement requirements.

ILT800-UVA — 315–390 nm
Designed for UVA curing applications, including UVA LED sources.

ILT800-BAV — 275–475 nm
Broadband UV/VIS radiometer for measuring a wide range of UV and visible light sources.

ILT800-UV — 250–400 nm
Broadband UV radiometer for UV curing and other UV measurement applications.

ILT800-CUV — 215–350 nm
Designed for UVGI, UV curing, and UV LED measurement applications, including UVA, UVB, and UVC LED sources.

ILT800-UVF — 360–400 nm flat response, 275–450 nm broader range
Designed specifically for UV LED measurement applications, including individual UV LED chips, LED arrays, spot lights, curing lamps, conveyor/belt systems, chambers, fiber optic light guides, and curing wands.

Technical Specifications

Specification	Details
Measurement Range	4.5 decades (mW/cm² to 40 W/cm²)
Readout	mW/cm², mJ/cm², W/cm², J/cm², profile/graph, date, time, and temperature
Sensors	Linear, solid-state GaAsP and SiC
Dimensions	102 × 152 × 12.7 mm (L × W × H)
Display	19 × 71 mm OLED
Power	Micro USB and rechargeable battery
Temperature Range	0–75°C (internal case temperature)
Input Optic	Cosine correction diffuser
Memory	400,000 data points
