Guaranteed 100% Compatible Replacement Ultraviolet (UV) Lamp - Mercury Wavelength - 14 Inch Arc Length - 17.5625 Inch Total Length (end to end)
The Inca Columbia Turbo UV Curing Lamp Bulb is a mercury-filled lamp bulb that guarantees 100% compatible replacement to the Inca Columbia Turbo UV Flatbed Printer. The lamp bulb is a replacement for the following part numbers:
- S7340
- S7340130517260
- PM7340
- S6813A44CSD
System application
- Inca - Columbia Turbo
Filled with mercury, the lamp bulb has an overall length of 17.56" and an arc length of 14". The lamp bulb has a tube diameter of 18mm and exceeds OEM standards of bulb performance. There is an increase in the demand of UV curing bulbs, specifically in the printing industry mainly to cure inks and coats. The UV curing method does not release volatile organic compounds in the air and the light bulb generates specific wavelength that assists in curing inks and coatings. The quartz plate in lamp works as a filter between lamp and the system. This plate prevents dirt, grit and contaminants from building up on the lamp.
CureUV is your one stop destination for UV replacement lamps, quartz plate, hot mirrors and reflectors that are necessary to keep your UV inkjet printer working in top condition.
Technical Specifications:
- Fill: Mercury
- Quartz: Standard
- Arc Length: 14 Inches
- Overall Length: 17.5625 Inches
- Tube Diameter: 18mm (0.71 inches)
- Watts Per Inch: Between 200-400 WPI
- Output Power (Wattage): 4200W
UV Spectral Output of a Mercury Lamp (PDF)

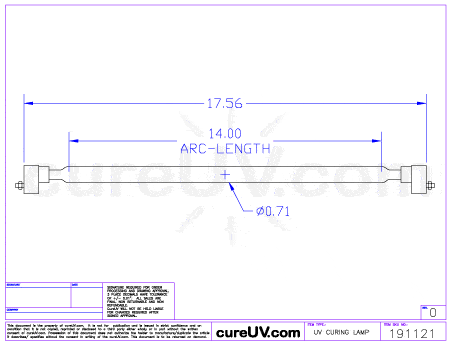

Inca Columbia Turbo Compatible UV lamp - Drawing (PDF)
*Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.org
*All lamps listed are compatible brand UV products. We do not sell Inca brand lamps. All Inca brand names, trademarks and logos are property of Inca.
*Warning: Ultraviolet light is harmful to your eyes and skin. Use proper safety gear.
Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
