Komori L28 UV Curing Lamp Bulb
Free Gift

SKU:

UV Bulb Price Match Guarantee
$350.00

Guaranteed 100% Compatible Replacement Ultraviolet (UV) Lamp - Mercury Wavelength - 42 Inch Arc Length - 45.6875 Inch Total Length (end to end)

The Komori L28 UV Curing Lamp Bulb is a mercury filled UV lamp bulb that has an arc length of 42 inches. With a tube diameter of 26mm the UV curing lamp bulb measures 45.68 inches overall. The 600 WPI lamp bulb exceeds OEM standards of UV curing bulb performance and is compatible to the Komori L28 UV systems. It works well with the following part numbers:

  • 8542A44C
  • SLI421
  • H42AC5F1
  • Komori L28
  • UVL/9242

Technical Specifications:

  • Fill: Mercury
  • Quartz: Standard
  • Arc Length: 42 inches
  • Overall Length: 45.6875 inches
  • Measured Arc Length: 41.5 inches
  • Tube Diameter: 26mm
  • Wattage Per Inch: 600 WPI

The lamp works well to dry and cure inks in signs and graphics. The replacement lamp consists of a quartz plate that prevents debris from falling on the lamp and also works as filler between the curing system and the lamp. The replacement lamp is extensively used in the printing industry to cure inks and coatings and the lamp resists smudges and is environmental friendly as there is no process of solvent evaporation as conventional drying methods. The result is greater printing quality as well as productivity.

Ultraviolet (UV) spectral output of a mercury vapor lamp

Komori L28 UV Curing Lamp Drawing (PDF)

Ultraviolet (UV) Spectral Output - Mercury Lamp (PDF)

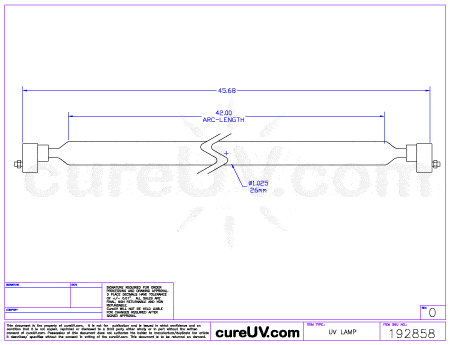

Komori L28 UV curing lamp drawing

*Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.orgKomori L28 UV Curing Lamp Bulb

*All UV lamps listed are compatible brand UV products. We do not sell Komori brand UV lamps. All Komori brand names, trademarks and logos are property of Komori.

*Warning: Ultraviolet light is harmful to your eyes and skin. Use proper safety gear.

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
