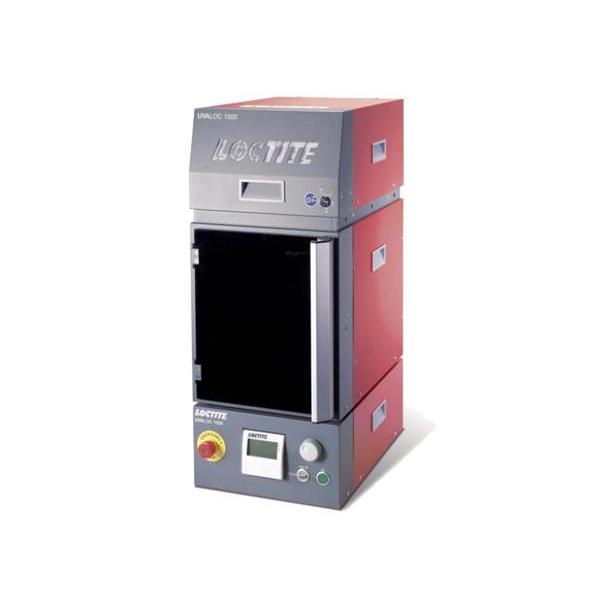

Loctite UVALOC 1000 UV Cure Chamber - Part Number 805741
Made for: Loctite
Input Voltage: 240 VAC; 50-60 Hz
Pneumatic supply required: 60-90 psi
Pneumatic supply tubing: 6mm
Power Consumption: 1200 watts
Exterior of unit: 12" x 29 1/4" x 17"
Cure Chamber: 9" x 12" x 13 3/4"
Cure area: 6.3 inches wide by 6.3 inches deep
Weight: 57 lbs.
The Loctite UVALOC 1000 UV Cure Chamber, part number 805741, is a high-performance modular curing system consisting of a cure chamber, lamp housing and controller. The key feature of this unit is the lamp intensity is continually monitored and a low-level output condition can be established to ensure optimal curing performance.
The chamber has four rack levels to accommodate a slide-in tray that allows for easy positioning of parts of various heights at the level of optimum exposure. A perforated aluminum plate allows positioning of customized part holders.
The lamp is shielded by a timed control shutter that eliminates UV exposure to operators during loading or unloading of parts. A door safety switch prevents opening while exposure is in progress. The cure time is controlled by the built-in timer and can be operated in a continuous or timed mode. The exposure cycle is triggered by footswitch, panel-mount start button or PLC interface.Chamber Features:

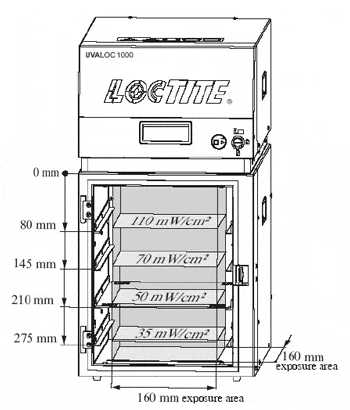

-Typical UV irradiance is up to 110 mW/cm2 depending upon selection of 4-position rack height.
-Dual power setting of 500 or 1000 watts permits curing of temperature-sensitive parts without damage by heat.
-Digital timer allows for setting exposure time from 3 seconds to 15 minutes in one-second increments.
-Pneumatically operated shutter prevents exposure of UV to operators.
-Safety door interlock switch prevents opening of the door while the shutter is open.
-Built-in over-temp protection in the controls automatically shuts the lamp off on a high temp condition.
-Effective cure area of 6.3 inches wide by 6.3 inches deep (160 mm x 160 mm).
-Parabolic shaped reflector generates a uniformly illuminated radiation area.
-Standard lamp included is mercury vapor lamp; 365 nm wavelength.
-1,000 hours of expected UV bulb life with proper handling and maintenance.
-UV bulb (pure mercury vapour)
-UV intensity sensor and built-in digital intensity display
-Lamp housing connector cord
-AC Power cord (pig-tale wire ends)
RoHS Compliance Status: Not Determined
