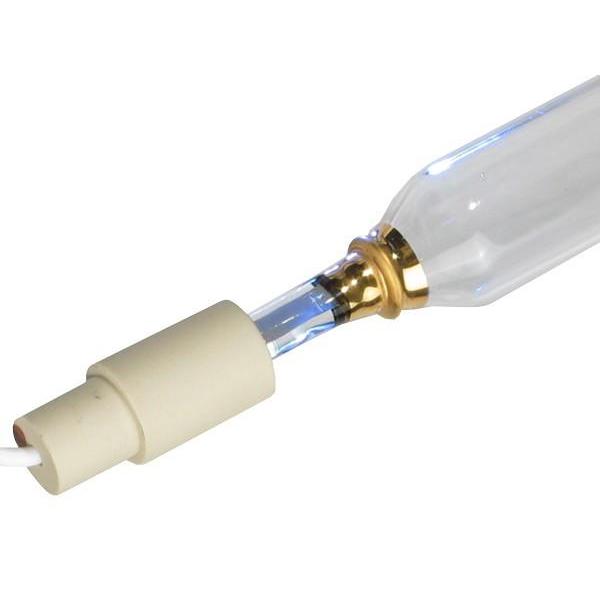

UV Curing Lamp - UVT Part # UVT6842B2 UV Curing Lamp Bulb

Made in USA Generic Replacement for Amjo 6842A5CHD UV Curing Lamp Bulb
Free Gift


UV Bulb Price Match Guarantee

Guaranteed 100% Compatible Replacement Ultraviolet (UV) Lamp - Mercury Wavelength - 42 Inch Arc Length - 48.125 Inch Total Length (end to end)

The generic replacement for Amjo Part # 6842A5CHD UV curing Lamp Bulb is a mercury filled lamp bulb that has a tube diameter of 1.035 inches and an overall length of 48.125 inches. The 300 WPI lamp bulb is compatible to the UVT UV system and works on the following part numbers:

  • UVT 6842B2
  • 6842A5CHD
  • A42B13F1HD
  • UVL 143-HD

The UV lamps in printers are connected to the photo initiators and the ink raw materials. It is always necessary to have a strong UV light for printing, as a weak UV light fails to cure properly and the ink feels sticky. The UV replacement lamp exceeds OEM standards and is subjected to strict quality control measures to give you the printing experience you desire. Studies show that as the bulb hour rises, the lamp produces less UV light and more heat. Excessive heat cause bulge in the print media along with damaging shutters and reflectors in the lamp housing. This can lead to enormous repairing costs. It is always safer to use a good quality UV lamp like the one from CureUV.

Technical Specification:

  • Fill: Mercury
  • Quartz: Standard
  • Arc Length: 42 inches
  • Total Overall Length (TOL): 48.125 inches
  • Measured Arc Length: 42.75 inches
  • Tube Diameter: 1.035 inches
  • Wattage Per Inch: 300 WPI

Ultraviolet (UV) spectral output of a mercury vapor lamp

Ultraviolet (UV) Spectral Output - Mercury Lamp (PDF)

*Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.orgUVT Part # UVT6842B2 UV Curing Lamp Bulb

*All UV lamps listed are compatible brand UV products. We do not sell UVT brand UV lamps. All UVT brand names, trademarks and logos are property of UVT.

*Warning: Ultraviolet light is harmful to your eyes and skin. Use proper safety gear.

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
