UV Curing Lamp - Matan Barak 5 UV Curing Lamp Bulb - Part # A12923N

Matan Barak 5 UV Curing Lamp Bulb - Part # A12923N
Free Gift


UV Bulb Price Match Guarantee

Guaranteed 100% Compatible Replacement Ultraviolet (UV) Lamp - Mercury Wavelength - 7 Inch Arc Length - 10.43 Inch Total Length (end to end)

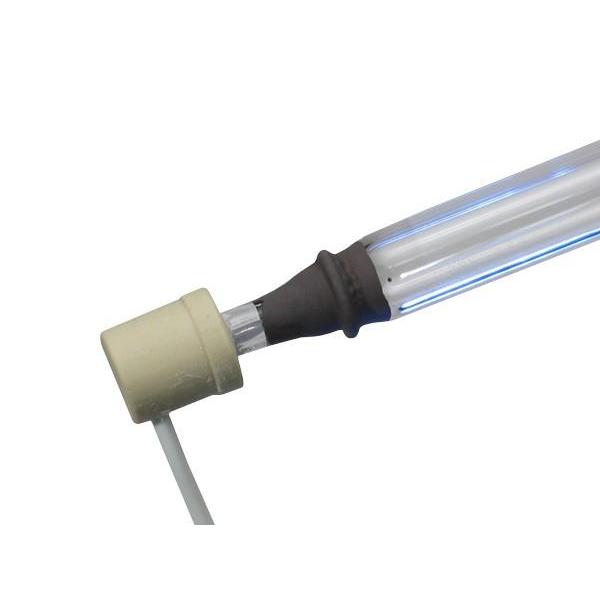

The Matan Barak 5 UV Curing Lamp Bulb - Part # A12923N is a mercury-filled UV lamp bulb that has an arc length of 7" and total length of 10.43". The UV lamp exceeds OEM standards of bulb performance and is 100% compatible to the Matan UV flatbed printer with the following part numbers:

  • Barak 5
  • Barak5
  • Barak-5
  • A12923N
  • A12923 N
  • A12923-N
  • 07K4F1
  • UVL/3407
  • UVL3407
  • UVL 3407
  • UVL-3407

CureUV provides UV lamps for printers in different arc lengths and spectral fills at a cost-effective rate. Further, our lamps provide better UV output, are manufactured in the USA and have a predictable lifespan. The replacement lamps work to dry coatings and inks in signs and graphics. The curing lamp consists of quartz glass plate that protects lamps from debris and works as a filler between the curing system and lamp. The plate prevents grit, dirt and contaminants from building up.

Studies have shown that as the bulb hour rises, the lamps tend to produce less UV light and more heat. The excessive heat can cause the printed media to bulge and also damage the shutters and reflectors in the lamp housing. This can lead to a bad output and also high repairing costs. Therefore it is recommended to use a good quality UV lamp like the one from CureUV to ensure your printer works seamlessly.

Technical Specifications:

  • Fill: Mercury
  • Quartz: Standard
  • Arc Length: 7 inches
  • Total Overall Length: 10.43 inches
  • Tube Diameter: 0.9 inches (22.86mm)
  • Watts Per Inch: 400 WPI

Ultraviolet (UV) spectral output of a mercury vapor lamp

Ultraviolet (UV) Spectral Output - Mercury Vapor Lamp (PDF)

*Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.orgMatan Barak 5 UV Curing Lamp Bulb - Part # A12923N

*All UV lamps listed are compatible brand UV products. We do not sell Matan brand UV lamps. All Matan brand names, trademarks and logos are property of Matan.

*Warning: Ultraviolet light is harmful to your eyes and skin. Use proper safety gear.

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment
