Guaranteed 100% Compatible Replacement Ultraviolet (UV) Lamp - Mercury Wavelength - 8 Inch Arc Length - 11.90 Inch Total Length (end to end)

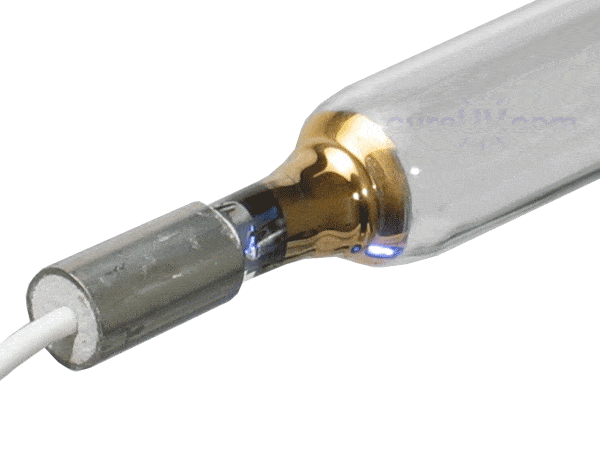

The Metalbox Part # MB1235 UV Curing Lamp Bulb is a 100% compatible replacement lamp bulb that has an arc length of 8 inches and a total length of 11.90 inches. The 500 WPI lamp bulb is filled with mercury and exceeds OEM standards of UV curing bulb performance. The replacement lamp bulb is 100% compatible to the Metalbox UV systems with the following part numbers:

• MB1235
• 856
• ACT310

The CureUV’s replacement bulbs work to cure dry coatings in signs and graphics. Made in the USA, the UV printer bulb provides a predictable lifespan and works to dry coatings and inks. With CureUV, you can be assured of UV lamps for printers in different arc length and spectral fills. Unlike curing using heat, the curing UV bulbs do not release volatile organic compounds in air that makes them an extremely eco-friendly option. The quartz plate in the curing lamp keeps the lamp away from debris and works as a filter between the curing system and the lamp. The usage of light instead of heat enables the ink to harden and dry instantly.

Technical Specifications:

• Output Power: 500 WPI
• Fill: Mercury
• Quartz: Standard
• Arc Length: 8 Inches
• Overall Length: 11.90 Inches

UV Spectral Output of a Mercury UV Lamp (PDF)

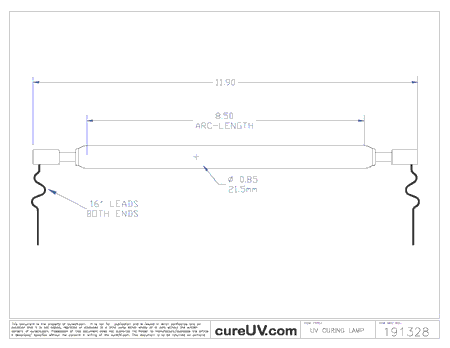

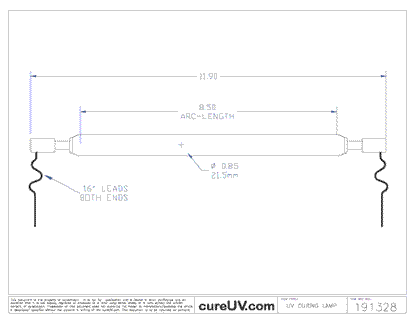

8 In. Arc UV Lamp - MetalBox UV System - OEM Pt # MB1235 (PDF)

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
