MetalBox Part # MB1163 UV Curing Lamp Bulb
Free Gift


UV Bulb Price Match Guarantee

Guaranteed 100% Compatible Replacement Ultraviolet (UV) Lamp - 10 Inch Total Length (end to end)

The Metalbox Part # MB1163 UV Curing Lamp Bulb is a 100% compatible lamp bulb that has a total length of 10 inches and exceeds OEM standards of UV curing bulb performance. The replacement lamp bulb is compatible to the Metalbox UV systems, to the following part numbers:

  • MB 1163
  • UVT3300
  • 35206063
  • HC402A06
  • AM3141X
  • PM342
  • SL179

The UV lamps in printers are connected to the photo initiators and the ink raw materials. A strong UV light is a must for printing as weak UV light fails to cure properly and the ink feels sticky. The UV replacement lamp exceeds OEM standards and is subjected to strict quality control measures and gives you a printing experience you desire. There are studies which show that as the bulb hour increases the lamp produces lesser UV light and more heat. Excess heat causes the print media to bulge and it can also damage the shutters and the reflectors in the lamp housing, leading to enormous repairing costs. Therefore, we suggest that you use a good quality UV lamp like the one from CureUV.

Technical Specifications:

  • Output Power: 400 WPI
  • Quartz: Standard
  • Arc Length: 10.50 Inches
  • Overall Length: 13.88 Inches
  • Tube Diameter: 21.5mm

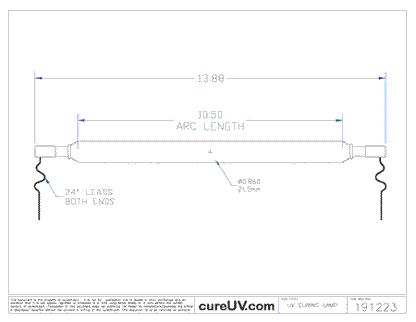

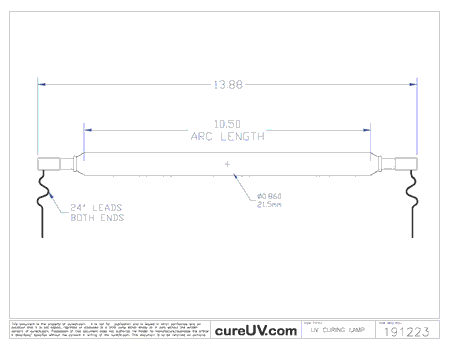

10In. Arc UV Lamp - MetalBox UV System - MB1163(PDF)

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
