UV Curing Lamp - OnLine Energy Part # 01-0042-02 UV Curing Lamp Bulb
UV Curing Lamp - OnLine Energy Part # 01-0042-02 UV Curing Lamp Bulb UV Curing Lamp - OnLine Energy Part # 01-0042-02 UV Curing Lamp Bulb UV Curing Lamp - OnLine Energy Part # 01-0042-02 UV Curing Lamp Bulb UV Curing Lamp - OnLine Energy Part # 01-0042-02 UV Curing Lamp Bulb

OnLine Energy Part # 01-0042-02 UV Curing Lamp Bulb
Free Gift

SKU: UV Bulb Price Match Guarantee
$295.00

Guaranteed 100% Compatible Replacement Ultraviolet (UV) Lamp - 42 Inch Arc Length

The Online Energy Part # 01-0042-02 UV Curing Lamp Bulb is a 100% compatible replacement UV lamp bulb that has an arc length of 42 inches and a total length of 47 inches. The lamp bulb has a tube diameter of 25mm and exceeds OEM standards of bulb performance. The lamp bulb is completely compatible to the Online Energy UV systems to the following part numbers:

  • 01 0042 02
  • 109223001

The UV lamps in printers are connected to the photo initiators and the ink raw materials. A strong UV light is a must for printing as weak UV light fails to cure properly and the ink feels sticky. The 5" UV replacement lamp exceeds OEM standards and is subjected to strict quality control measures and gives you a printing experience you desire. There are studies which show that as the bulb hour increases the lamp produces lesser UV light and more heat. Excess heat causes the print media to bulge and it can also damage the shutters and the reflectors in the lamp housing, leading to enormous repairing costs. Therefore, we suggest that you use a good quality UV lamp like the one from CureUV.

Technical Specifications:

  • Fill: Mercury
  • Quartz: Standard
  • Arc Length: 42 inches
  • Total Length: 47.50 inches
  • Watts Per Inch: 400 WPI

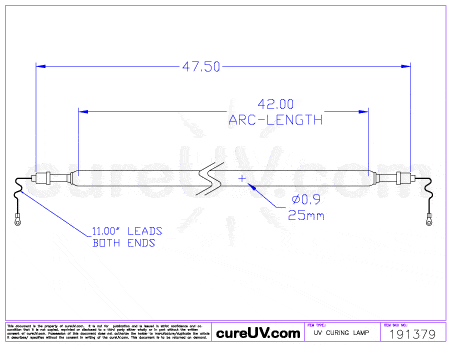

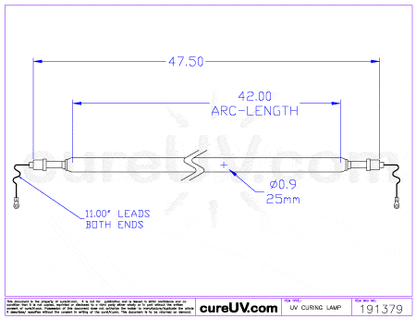

OnLine Energy UV Lamp - OEM Part Number 01-0042-02 drawing

OnLine Energy 42 inch UV lamp - OEM part number 01004202 - Drawing (PDF)

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
