Opsytec Irradiation Chamber BS-03
Opsytec Irradiation Chamber BS-03
SKU:512206
Couldn't load pickup availability

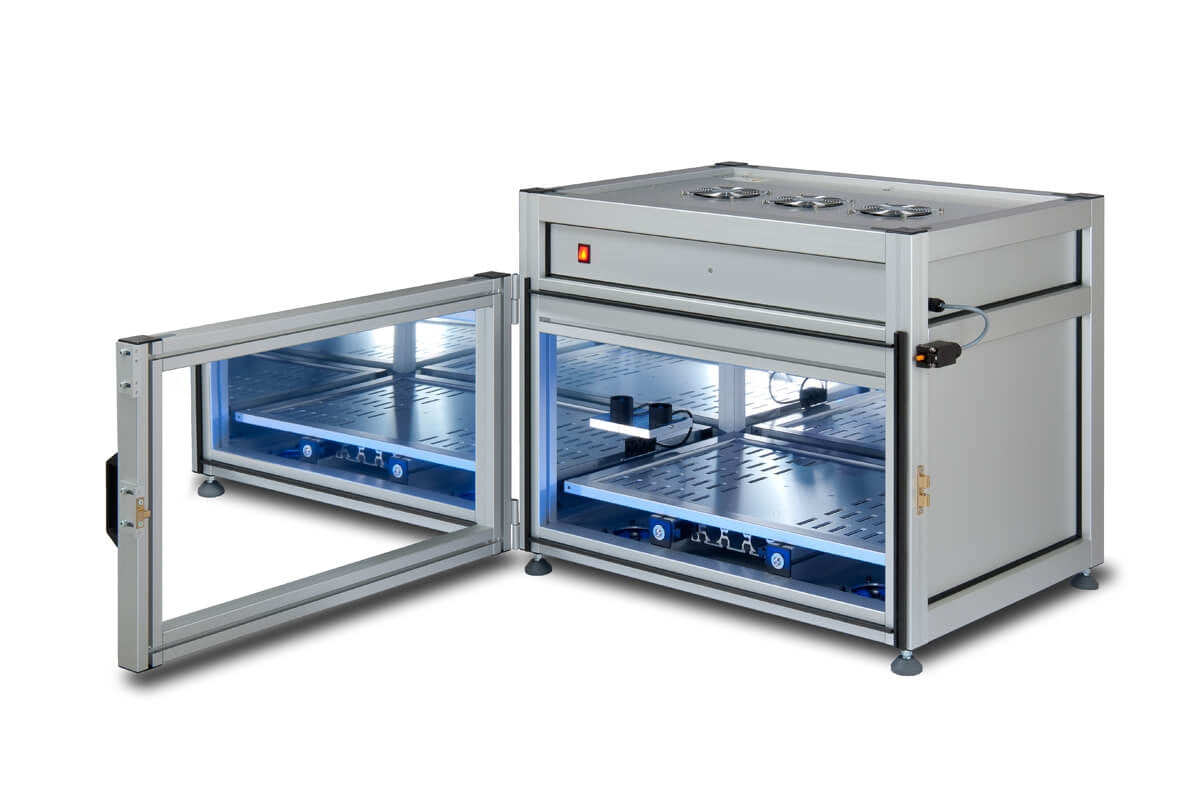

Opsytec Irradiation Chamber BS-03 is a medium-sized irradiation chamber engineered for precise, time- or dose-controlled exposure of samples to UVA, UVB, or UVC light. Supplied fully assembled with all essential components, it offers a complete, ready-to-use solution for laboratory and industrial applications. The chamber can be configured for a single spectral range to maximize irradiance or with two independently controlled lamp groups for multi-range applications.
Key Applications
- Irradiation of bacteria and cell cultures
- Photostability testing of chemical compounds and pharmaceuticals
- UV and daylight materials testing
- UV curing, sealing, and bonding processes
Spacious & Practical Design
- Internal dimensions: 26.77 × 19.29 × 12.6 in (68 × 49 × 32 cm)
- Sliding sample carrier: 23.62 × 17.72 in (60 × 45 cm)
- Load capacity: Up to 44 lbs (20 kg)
- Temperature-controlled: Maintains ~77 °F (25 °C) to prevent thermal damage

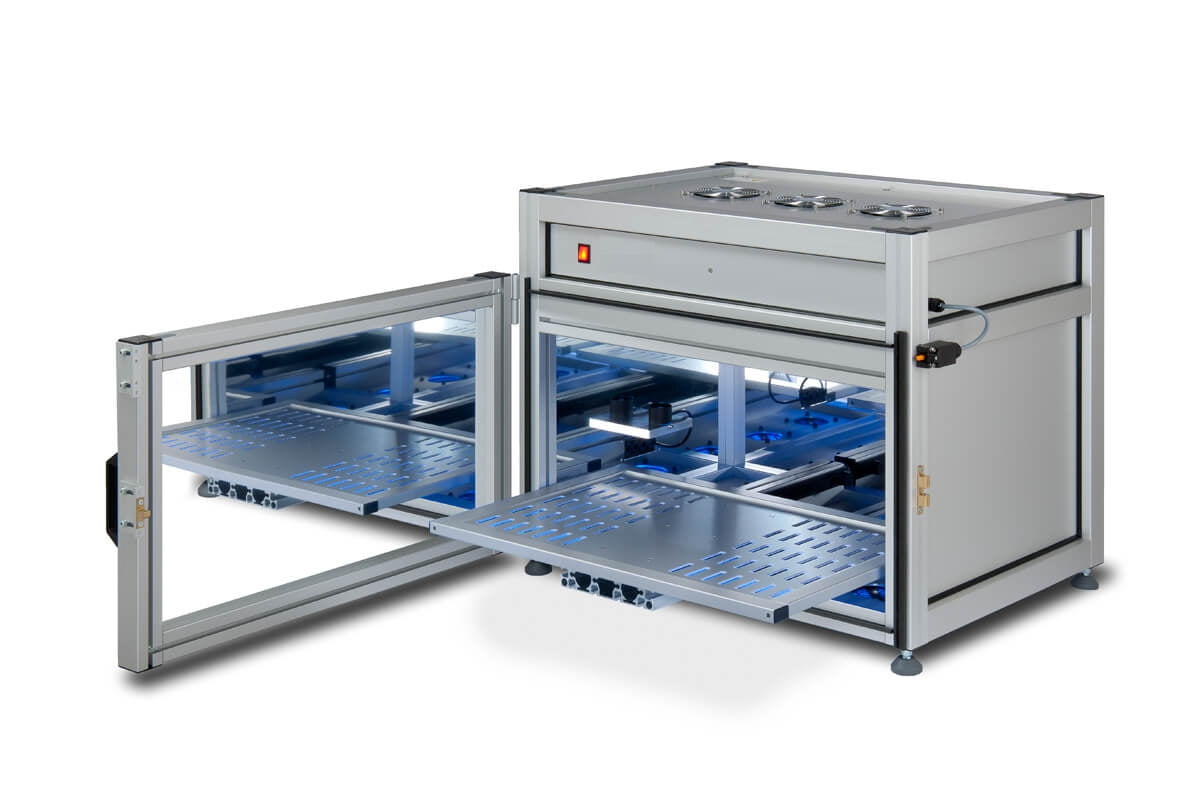

- User-friendly loading: Sliding sample carrier for effortless handling
- Uniform irradiation: Samples can be positioned freely without compromising results
Precision Control
Opsytec Irradiation Chamber BS-03 includes a high-performance controller and integrated sensors, providing:
- Independent control of two spectral ranges
- Automatic dose regulation for consistent exposure
- High-precision measurement with factory-calibrated RMD sensors
Complete System Components
Opsytec Irradiation Chamber BS-03 system comes fully equipped with everything needed for operation:

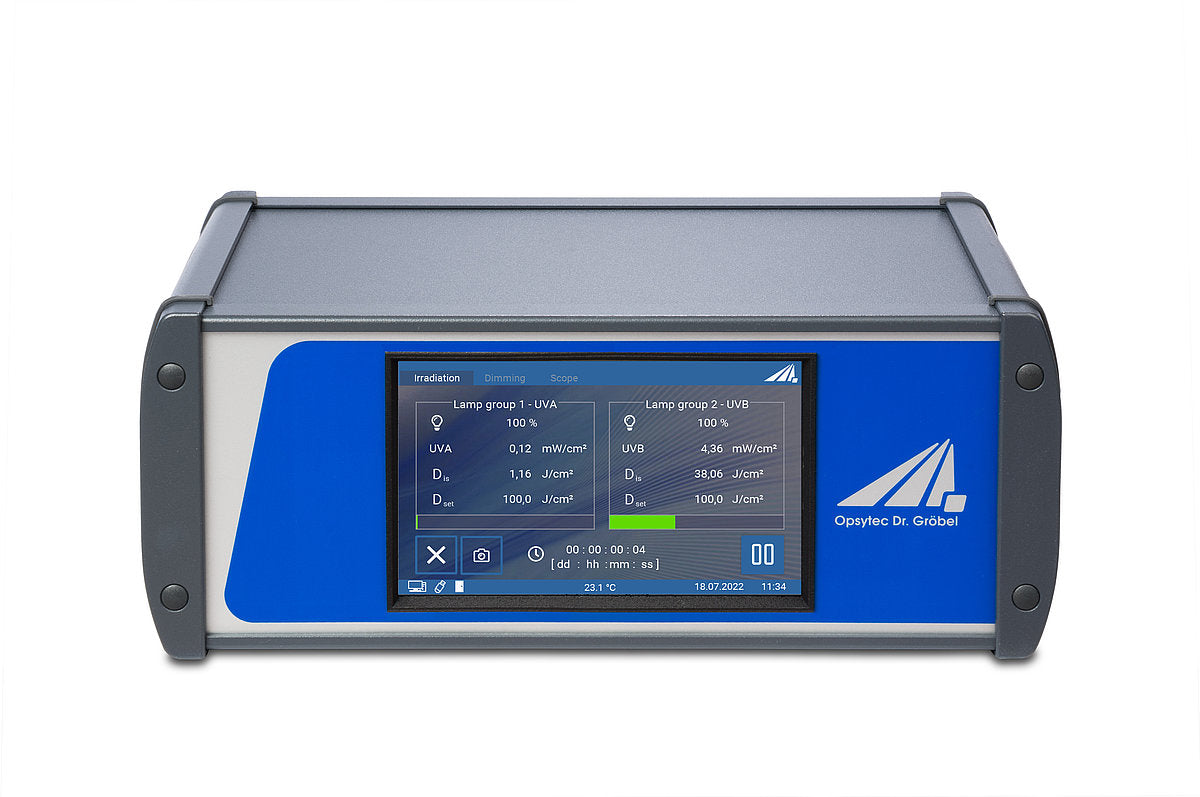

- UV-MAT Touch Irradiation Controller: Digital control of irradiation with intuitive 5" capacitive touch display, data storage on USB stick, and two sensor connections

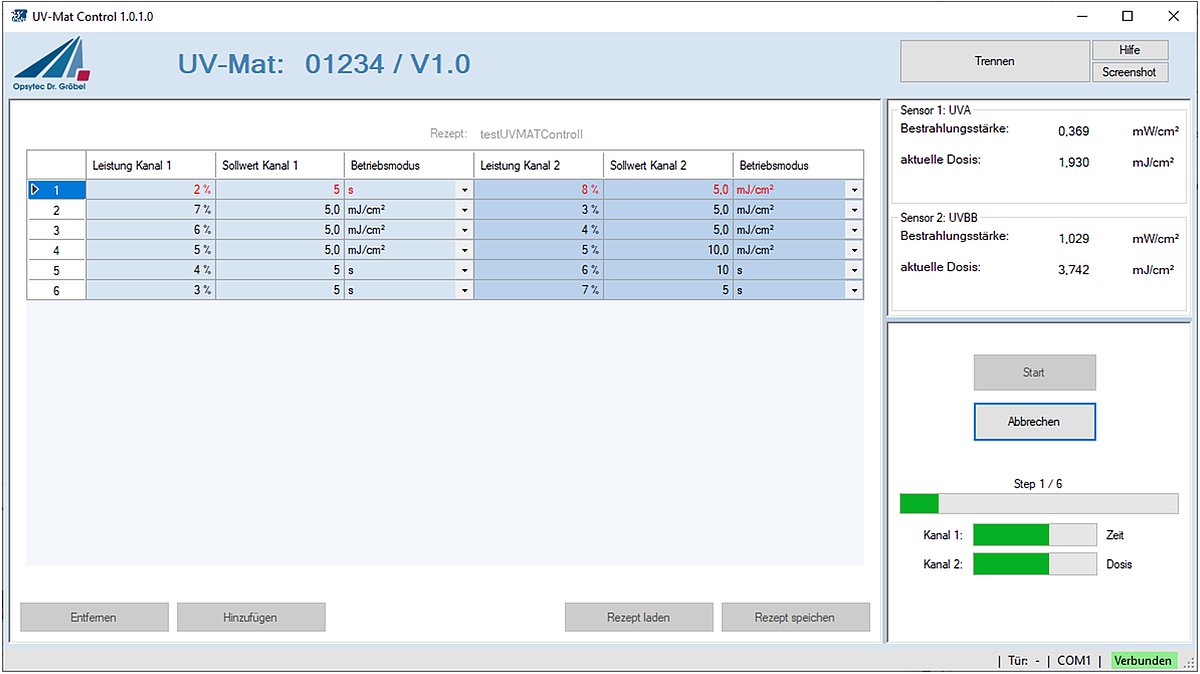

- PC software for UV-MAT Touch: Supports complex, multistage irradiation (up to 30 dose- or time-controlled steps) with logging on the PC
- RMD Sensor UVC (200–280 nm, 0–1 W/cm²): Factory-calibrated, with DAkkS calibration certificate
- UVC Bulbs for irradiation chamber BS-03
- Mesh Filter for lamps: Reduces irradiance to approx. 35% (one per lamp)
- Area Attenuator: Reduces irradiance to approx. 30%
- DAkkS calibration: ISO/IEC 17025-accredited calibration of sensors for precise irradiance measurement
- Included accessories: USB cable and USB stick with software
Technical Specifications
| Interior chamber | 26.77 × 19.29 × 12.6 in (68 × 49 × 32 cm) |
| Sliding sample carrier | 23.62 × 17.72 in (60 × 45 cm) |
| Dimensions | 30.31 × 25.2 × 26.77 in (77 × 64 × 68 cm) |
| Weight | 110 lbs (50 kg) |
| Power consumption | 300 W |
| Mains | 110-230 VAC, 3 A |
| Number of lamps | 20 |
| Sample temperature | 77 °F ± 9 °F (25 °C ± 5 °C) |
| Spectral ranges | 2 |
| Irradiance UVA | 8 mW/cm² |
| Irradiance UVA+ | 8 mW/cm² |
| Irradiance UVB | 2.4 mW/cm² |
| Irradiance UVC | 10 mW/cm² |
| Lamp lifetime UVA | up to 4.000 h |
| Lamp lifetime UVB | up to 4.000 h |
| Lamp lifetime UVC | up to 9.000 h |
Spectra of irradiation chamber BS-03
Data sheet
